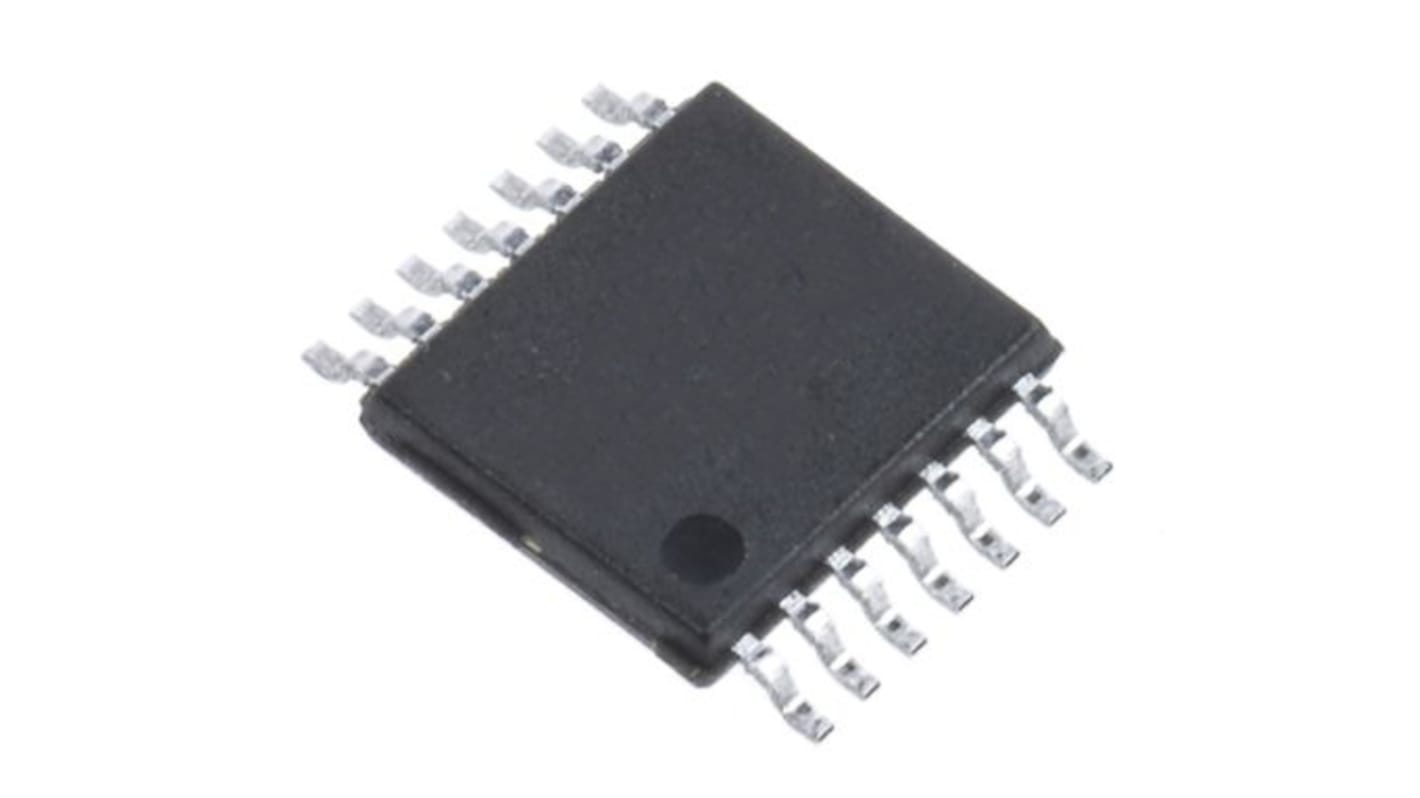

TSZ124IYPT STMicroelectronics, Operational Amplifier, 400 kHz, 14-Pin 5.5 V TSSOP
- RS Stock No.:
- 233-3106
- Mfr. Part No.:
- TSZ124IYPT
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.60
(exc. VAT)
£7.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4,980 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £3.30 | £6.60 |
| 10 - 98 | £3.13 | £6.26 |
| 100 - 248 | £2.97 | £5.94 |
| 250 - 498 | £2.84 | £5.68 |
| 500 + | £2.69 | £5.38 |
*price indicative
- RS Stock No.:
- 233-3106
- Mfr. Part No.:
- TSZ124IYPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Number of Channels | 4 | |
| Pin Count | 14 | |
| GBP - Gain Bandwidth Product | 400kHz | |
| Minimum Supply Voltage | 5.5V | |
| Maximum Supply Voltage | 5.5V | |
| Slew Rate | 0.17V/μs | |
| Input Bias Current | 300 pA | |
| Minimum Operating Temperature | -40°C | |
| Vos - Input Offset Voltage | 8 μV | |
| Maximum Operating Temperature | 125°C | |
| Series | TSZ124 | |
| Standards/Approvals | RoHS | |
| Length | 5.1mm | |
| Height | 1.2mm | |
| Output Current | 4mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 600 pA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Number of Channels 4 | ||
Pin Count 14 | ||
GBP - Gain Bandwidth Product 400kHz | ||
Minimum Supply Voltage 5.5V | ||
Maximum Supply Voltage 5.5V | ||
Slew Rate 0.17V/μs | ||
Input Bias Current 300 pA | ||
Minimum Operating Temperature -40°C | ||
Vos - Input Offset Voltage 8 μV | ||
Maximum Operating Temperature 125°C | ||
Series TSZ124 | ||
Standards/Approvals RoHS | ||
Length 5.1mm | ||
Height 1.2mm | ||
Output Current 4mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 600 pA | ||
The STMicroelectronics TSZ12x series of high precision operational amplifiers offer very low input offset voltages with virtually zero drift. TSZ121 is the single version, TSZ122 the dual version, and TSZ124 the quad version, with pinouts compatible with industry standards. The TSZ12x series offers rail-to-rail input and output, excellent speed/power consumption ratio, and 400 kHz gain bandwidth product, while consuming less than 40 μA at 5 V. The devices also feature an ultra-low input bias current. These features make the TSZ12x family ideal for sensor interfaces, battery-powered applications and portable applications.
Very high accuracy and stability: offset voltage 5 μV max at 25 °C, 8 μV over full temperature range (-40 °C to 125 °C)
Rail-to-rail input and output
Low supply voltage: 1.8 - 5.5 V
Low power consumption: 40 μA max. at 5 V
Gain bandwidth product: 400 kHz
High tolerance to ESD: 4 kV HBM
Extended temperature range: -40 to 125 °C
