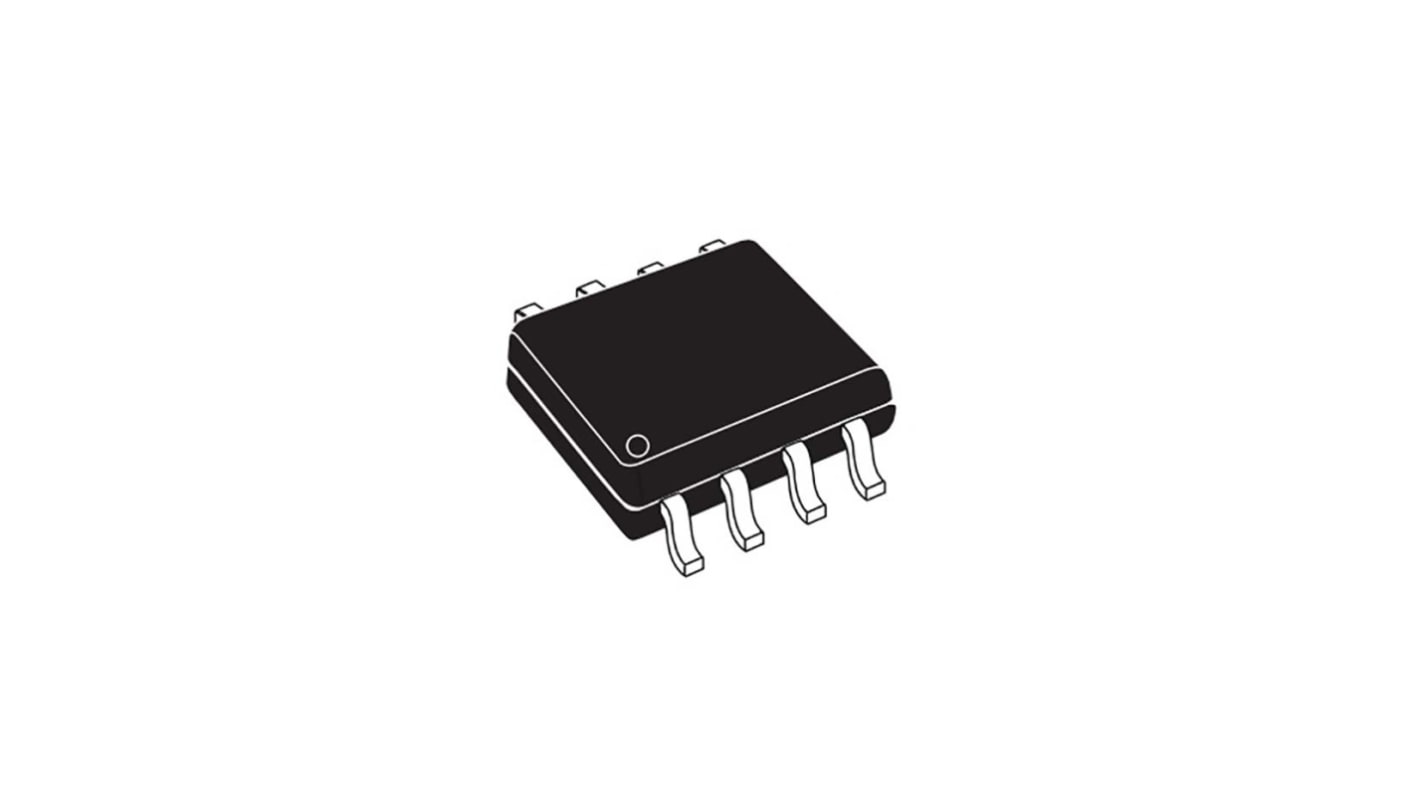

TSB7192IST STMicroelectronics, BiCMOS, Op Amp, 22MHz 22 MHz, 36 V, 8-Pin MiniSO8

View all Op Amps
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
203-3509
Mfr. Part No.:
TSB7192IST
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Amplifier Type

BiCMOS

Mounting Type

Surface Mount

Package Type

MiniSO8

Power Supply Type

Single

Number of Channels per Chip

2

Pin Count

8

Typical Single Supply Voltage

36 V

Typical Gain Bandwidth Product

22MHz

Maximum Operating Frequency

22 MHz

The STMicroelectronics TSB7191, TSB7191A, TSB7192 and the TSB7192A series is a precision 22 MHz bandwidth Becomes operational amplifier. It features rail-to-rail input and output, which is guaranteed to operate from +2.7 V to +36 V single supply as well as from ±1.35 V to ±18 V dual supplies. The combination of wide bandwidth, low noise, slew rate, rail-to-rail capability and precision makes the series device useful in a wide variety of applications such as actuator driving, hall effect sensors, filters, power supply and motor control and resistive transducers.

Offers a large span of supply voltage
An excellent input offset voltage of 300 μV maximum at 25 °C
Consists of an integrated EMI filter
Automotive-grade available
