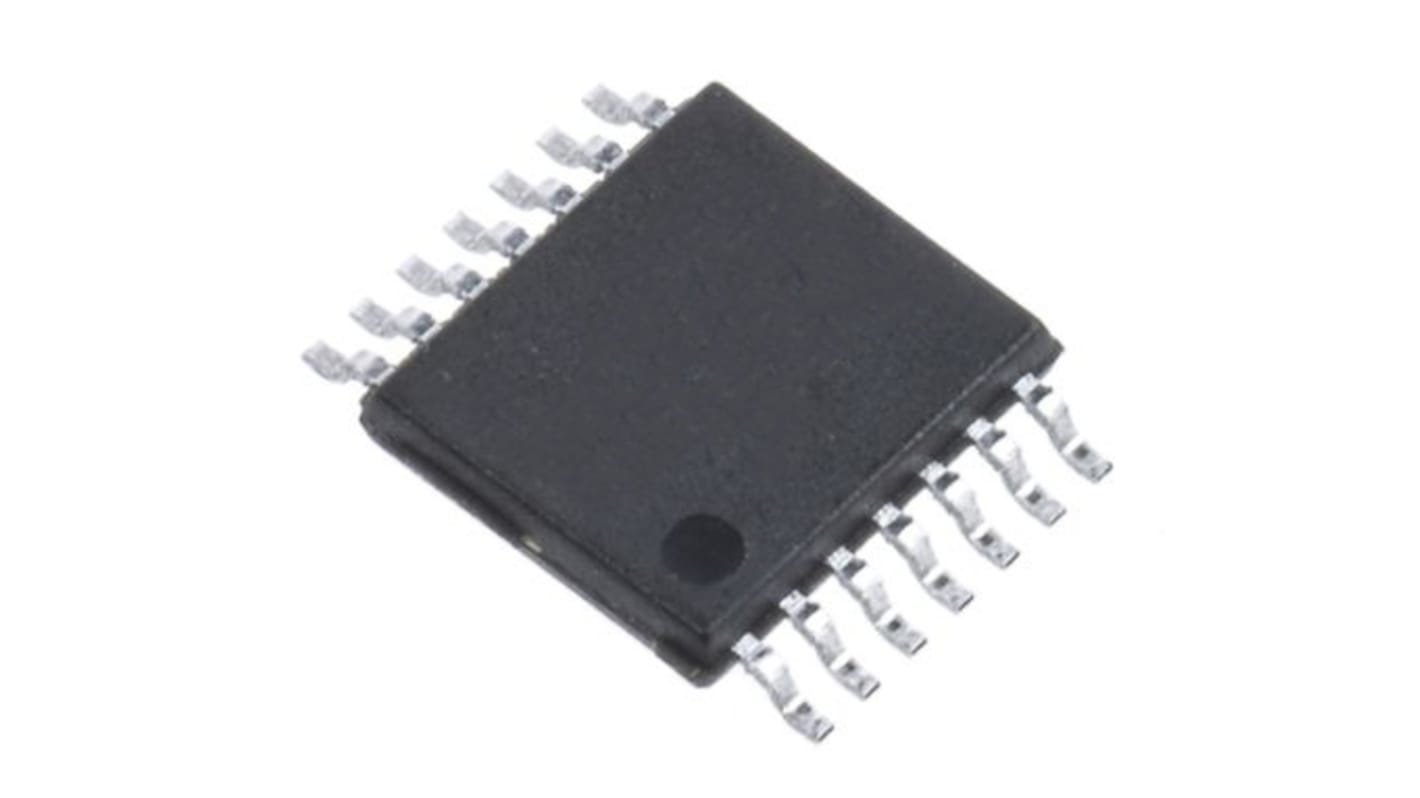

LMV324LIPT STMicroelectronics, Op Amp, RRO, 1.3MHz, 2.7 → 5.5 V, 14-Pin TSSOP
- RS Stock No.:
- 196-1975P
- Mfr. Part No.:
- LMV324LIPT
- Brand:
- STMicroelectronics
Subtotal 25 units (supplied on a continuous strip)*
£10.15
(exc. VAT)
£12.175
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,125 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 + | £0.406 |
*price indicative
- RS Stock No.:
- 196-1975P
- Mfr. Part No.:
- LMV324LIPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 2.7 → 5.5 V | |
| Typical Gain Bandwidth Product | 1.3MHz | |
| Typical Slew Rate | 0.6V/µs | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Rail to Rail | Rail to Rail Output | |
| Offset Voltage | 7mV | |
| Typical Voltage Gain | 100 dB | |
| Output Current | 43 (Sink) mA, 70 (Source) mA | |
| Maximum Input Voltage | 5.5 V | |
| Input Offset Current | 50nA | |
| Input Voltage Range | 2.7 → 5.5 V | |
| Width | 4.5mm | |
| Height | 1mm | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Minimum Input Voltage | 2.7 V | |
| Length | 5.1mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Single | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 2.7 → 5.5 V | ||
Typical Gain Bandwidth Product 1.3MHz | ||
Typical Slew Rate 0.6V/µs | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Rail to Rail Rail to Rail Output | ||
Offset Voltage 7mV | ||
Typical Voltage Gain 100 dB | ||
Output Current 43 (Sink) mA, 70 (Source) mA | ||
Maximum Input Voltage 5.5 V | ||
Input Offset Current 50nA | ||
Input Voltage Range 2.7 → 5.5 V | ||
Width 4.5mm | ||
Height 1mm | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Minimum Input Voltage 2.7 V | ||
Length 5.1mm | ||
- COO (Country of Origin):
- MA
The LMV321L, LMV358L, and LMV324L are single, dual, and quad operational amplifiers with rail-to-rail output capabilities. They are specifically designed to operate at low voltages (2.7 V to 5 V) with enhanced performances compared to the industry standard LM3xx series.
The LMV321L, LMV358L, and LMV324L are offered in tiny packages, allowing the devices to be used in small portable electronic applications and to be placed closer to the actual signal.
The LMV321L, LMV358L, and LMV324L are complete cost-effective solutions for application designs where cost is of primary importance.
The LMV321L, LMV358L, and LMV324L are offered in tiny packages, allowing the devices to be used in small portable electronic applications and to be placed closer to the actual signal.
The LMV321L, LMV358L, and LMV324L are complete cost-effective solutions for application designs where cost is of primary importance.
Low-power consumption: 250 μA max at 5 V
Low offset voltage: 7 mV max at 25 °C
Industrial temperature range: -40 °C to +125 °C
Low supply voltage: 2.7 V - 5.5 V
Gain bandwidth product: 1.3 MHz
Tiny packages
Low offset voltage: 7 mV max at 25 °C
Industrial temperature range: -40 °C to +125 °C
Low supply voltage: 2.7 V - 5.5 V
Gain bandwidth product: 1.3 MHz
Tiny packages
