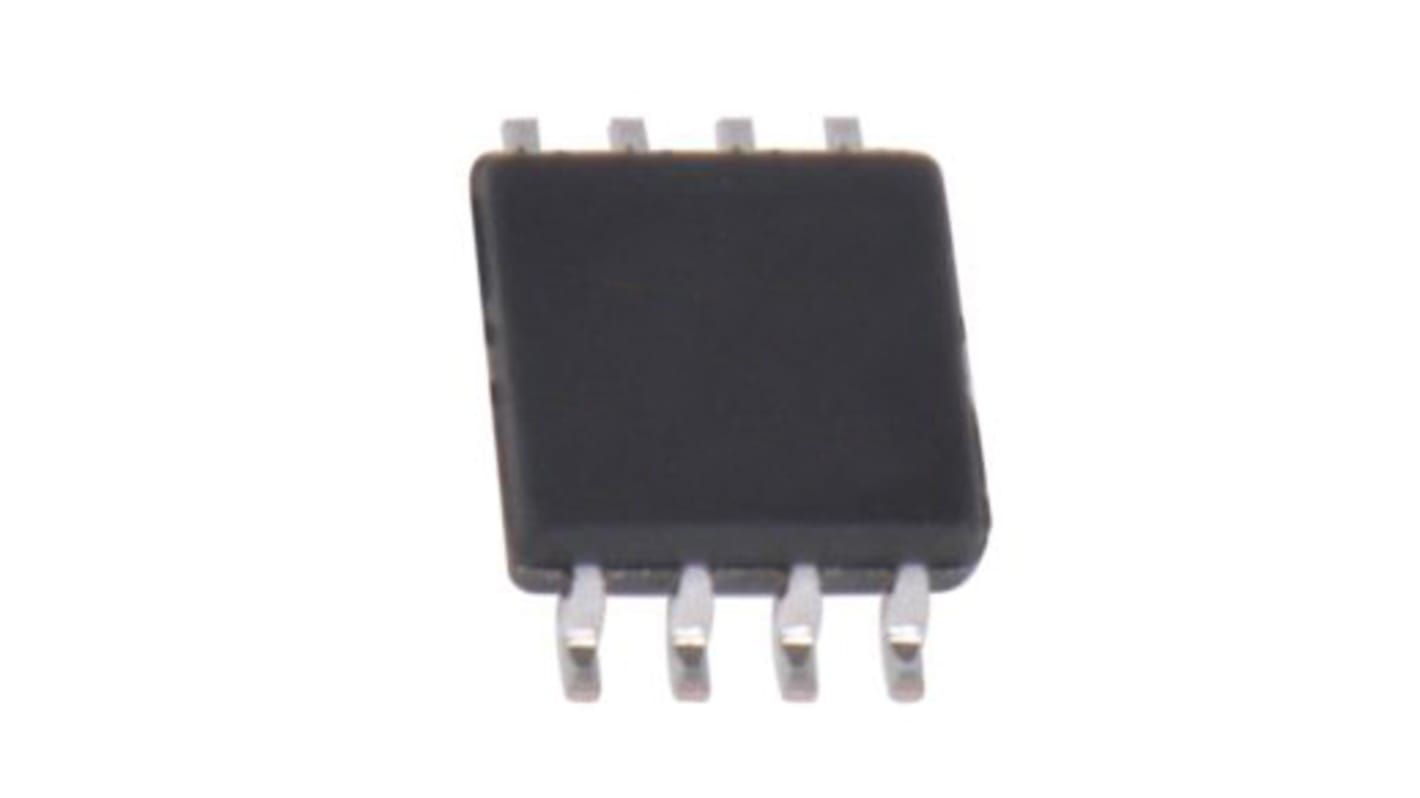

LM2904PT STMicroelectronics, Op Amp, 1.1MHz, 3 → 30 V, 8-Pin TSSOP
- RS Stock No.:
- 196-1967P
- Mfr. Part No.:
- LM2904PT
- Brand:
- STMicroelectronics
Subtotal 25 units (supplied on a continuous strip)*
£3.40
(exc. VAT)
£4.075
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18,125 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 + | £0.136 |
*price indicative
- RS Stock No.:
- 196-1967P
- Mfr. Part No.:
- LM2904PT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Single | |
| Pin Count | 8 | |
| Typical Single Supply Voltage | 3 → 30 V | |
| Typical Gain Bandwidth Product | 1.1MHz | |
| Typical Slew Rate | 0.4V/µs | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Output Current | 60 mA | |
| Offset Voltage | 9mV | |
| Maximum Input Voltage | 30 V | |
| Typical Voltage Gain | 100 dB | |
| Length | 3.1mm | |
| Width | 4.5mm | |
| Height | 1mm | |
| Input Offset Current | 2nA | |
| Minimum Input Voltage | 3 V | |
| Dimensions | 3.1 x 4.5 x 1mm | |
| Input Voltage Range | 3 → 30 V | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Single | ||
Pin Count 8 | ||
Typical Single Supply Voltage 3 → 30 V | ||
Typical Gain Bandwidth Product 1.1MHz | ||
Typical Slew Rate 0.4V/µs | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Output Current 60 mA | ||
Offset Voltage 9mV | ||
Maximum Input Voltage 30 V | ||
Typical Voltage Gain 100 dB | ||
Length 3.1mm | ||
Width 4.5mm | ||
Height 1mm | ||
Input Offset Current 2nA | ||
Minimum Input Voltage 3 V | ||
Dimensions 3.1 x 4.5 x 1mm | ||
Input Voltage Range 3 → 30 V | ||
This circuit consists of two independent, high gain operational amplifiers (op amps) that have frequency compensation implemented internally. They are designed specifically for automotive and industrial control systems. The circuit operates from a single power supply over a wide range of voltages. The low power supply drain is independent of the magnitude of the power supply voltage.
Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied from the standard 5 V which is used in logic systems and easily provides the required electronic interfaces without requiring any additional power supply.
In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from a single power supply.
Application areas include transducer amplifiers, DC gain blocks and all the conventional op amp circuits which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied from the standard 5 V which is used in logic systems and easily provides the required electronic interfaces without requiring any additional power supply.
In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from a single power supply.
