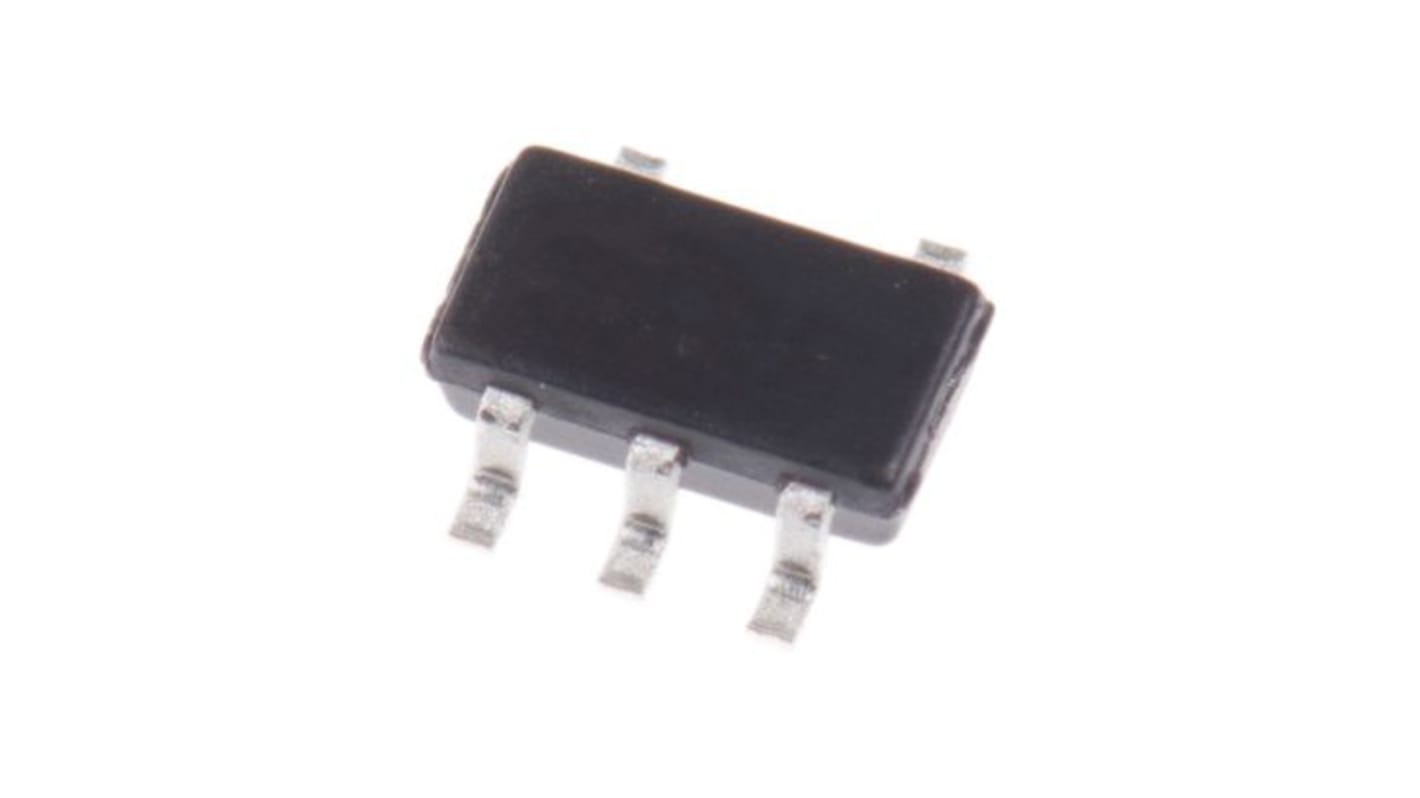

NCV21911SN2T1G onsemi, Op Amp, 2MHz, 36 V, 5-Pin TSOP
- RS Stock No.:
- 195-2481
- Mfr. Part No.:
- NCV21911SN2T1G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 25 units)*
£32.70
(exc. VAT)
£39.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 75 | £1.308 | £32.70 |
| 100 - 225 | £1.128 | £28.20 |
| 250 + | £0.978 | £24.45 |
*price indicative
- RS Stock No.:
- 195-2481
- Mfr. Part No.:
- NCV21911SN2T1G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Mounting Type | Surface Mount | |
| Package Type | TSOP | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 1 | |
| Pin Count | 5 | |
| Typical Single Supply Voltage | 36 V | |
| Typical Gain Bandwidth Product | 2MHz | |
| Output Type | Rail to Rail, Swing | |
| Typical Slew Rate | 1.6V/µs | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Typical Voltage Gain | 150 dB | |
| Automotive Standard | AEC-Q100 | |
| Offset Voltage | ±25µV | |
| Width | 1.65mm | |
| Length | 3.15mm | |
| Height | 1mm | |
| Input Offset Current | 3500pA | |
| Dimensions | 3.15 x 1.65 x 1mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Package Type TSOP | ||
Power Supply Type Single | ||
Number of Channels per Chip 1 | ||
Pin Count 5 | ||
Typical Single Supply Voltage 36 V | ||
Typical Gain Bandwidth Product 2MHz | ||
Output Type Rail to Rail, Swing | ||
Typical Slew Rate 1.6V/µs | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Typical Voltage Gain 150 dB | ||
Automotive Standard AEC-Q100 | ||
Offset Voltage ±25µV | ||
Width 1.65mm | ||
Length 3.15mm | ||
Height 1mm | ||
Input Offset Current 3500pA | ||
Dimensions 3.15 x 1.65 x 1mm | ||
The NCS2191x family of high precision Zero-Drift Op Amps feature low input offset voltage and low offset drift over time and temperature. These devices have low quiescent current and low noise performance with a rail−to−rail output swing within 10 mV of the rails. The NCS21911 operates over a wide supply range from 4 V to 36 V. All versions are specified for operation from −40°C to +125°C.
Low Offset Voltage: 25 μV Max
Low error at the output
Low Offset Drift:0.085 μV/°C max
Higher accuracy over temperature
Supply Voltage: 4 to 36V
Wide supply voltage range
Quiescent Current: 570 μA Max
Low Power consumption
Low Noise: 22 nV/√Hz typical
Precision performance
Gain-Bandwidth Product: 2 MHz typical
Higher speed with good slew rate
Rail−to−Rail Output
Application
Temperature Monitoring
Transducer Applications
Electronic Scales
Medical Instrumentation
Current Sensing
Automotive
Low error at the output
Low Offset Drift:0.085 μV/°C max
Higher accuracy over temperature
Supply Voltage: 4 to 36V
Wide supply voltage range
Quiescent Current: 570 μA Max
Low Power consumption
Low Noise: 22 nV/√Hz typical
Precision performance
Gain-Bandwidth Product: 2 MHz typical
Higher speed with good slew rate
Rail−to−Rail Output
Application
Temperature Monitoring
Transducer Applications
Electronic Scales
Medical Instrumentation
Current Sensing
Automotive
