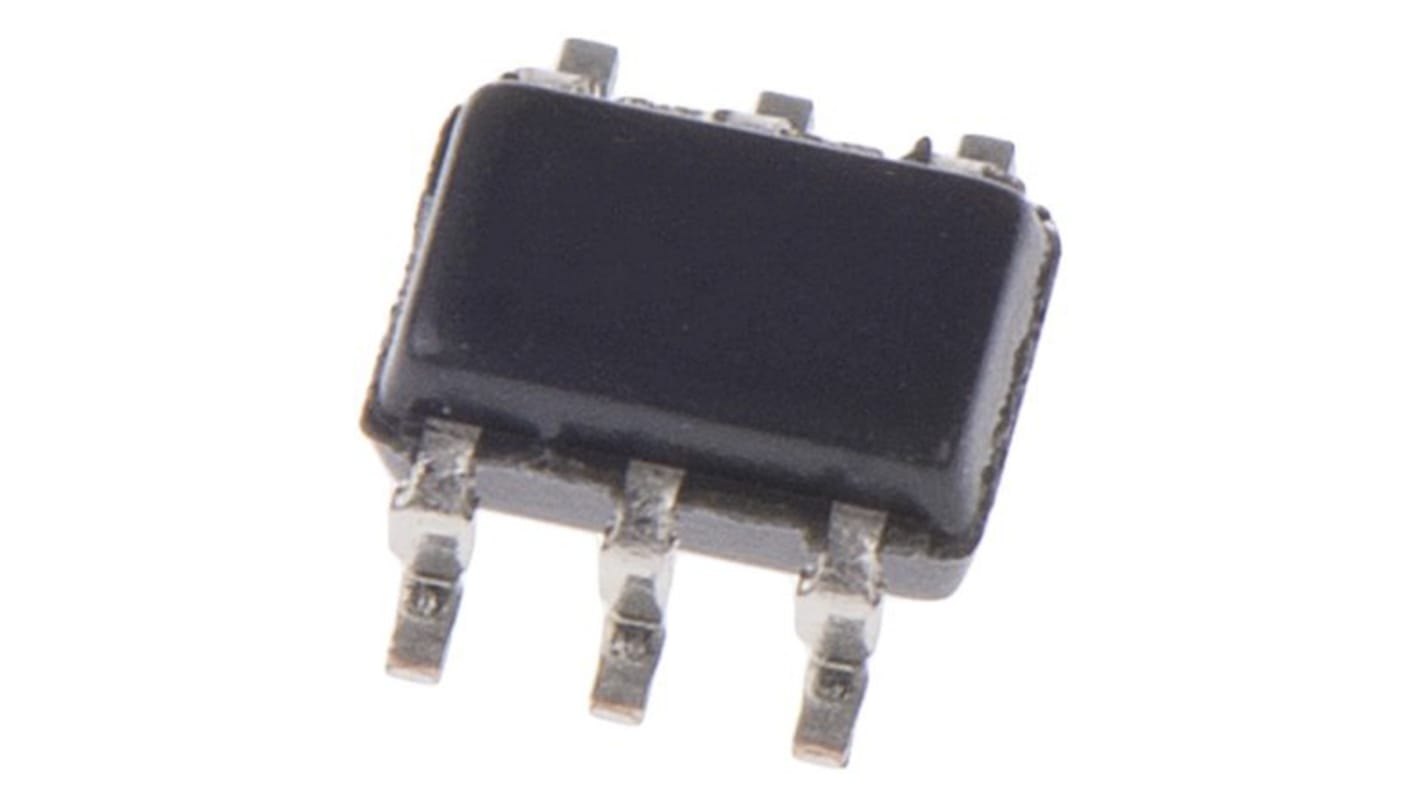

MAX44260AXT+T Maxim Integrated, Operational Amplifier, Op Amps, 15MHz 10 kHz, 1.8 → 5.5 V, 6-Pin SC-70

View all Op Amps
Bulk discount available

Subtotal 10 units (supplied on a continuous strip)*

£15.18

(exc. VAT)

£18.22

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1,350 unit(s), ready to ship
Units
Per unit
10 - 20£1.518
25 - 95£1.416
100 - 245£1.134
250 +£0.992

*price indicative

Packaging Options:
RS Stock No.:
191-3653P
Mfr. Part No.:
MAX44260AXT+T
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

SC-70

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

6

Typical Single Supply Voltage

1.8 → 5.5 V

Typical Gain Bandwidth Product

15MHz

Output Type

Rail to Rail

Typical Slew Rate

7V/µs

Maximum Operating Frequency

10 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Offset Voltage

500µV

Maximum Input Voltage

5.5 V

Typical Voltage Gain

100 dB

Output Current

50 (Typ.) mA

Dimensions

2.15 x 1.35 x 1mm

Minimum Input Voltage

1.8 V

Typical Input Voltage Noise Density

12.7nV/√Hz

Height

1mm

Width

1.35mm

Length

2.15mm

Input Voltage Range

1.8 → 5.5 V

Low Noise for Higher System Accuracy
12.7nV/√Hz Input Voltage-Noise Density
1.2fA/√Hz Input Current-Noise Density
50μV (max) VOS at +25°C
110dB Total Harmonic Distortion
15MHz Unity-Gain Bandwidth Enables for High-Bandwidth Applications
Low Power Extends the Battery Life of Portable Equipment
500fA Low Input Bias Current
750μA Quiescent Current per Amplifier
< 1μA Supply Current in Shutdown
On-Demand VOS Self-Calibration (MAX44261)
Saves Board Space
Small, 2mm x 2mm SC70 and 1mm x 1.5mm Thin μDFN (MAX44260) and SOT23 (MAX44259) Packages
Wide Supply Range from 1.8V to 5.5V Simplifies Power-Supply Requirements
Applications
3G/4G Handsets
Analog-to-Digital Converter Buffers
Battery-Operated Devices
General-Purpose Signal Processing
Notebooks
Portable Media Players
Portable Medical Instruments
Transimpedance Amplifiers
