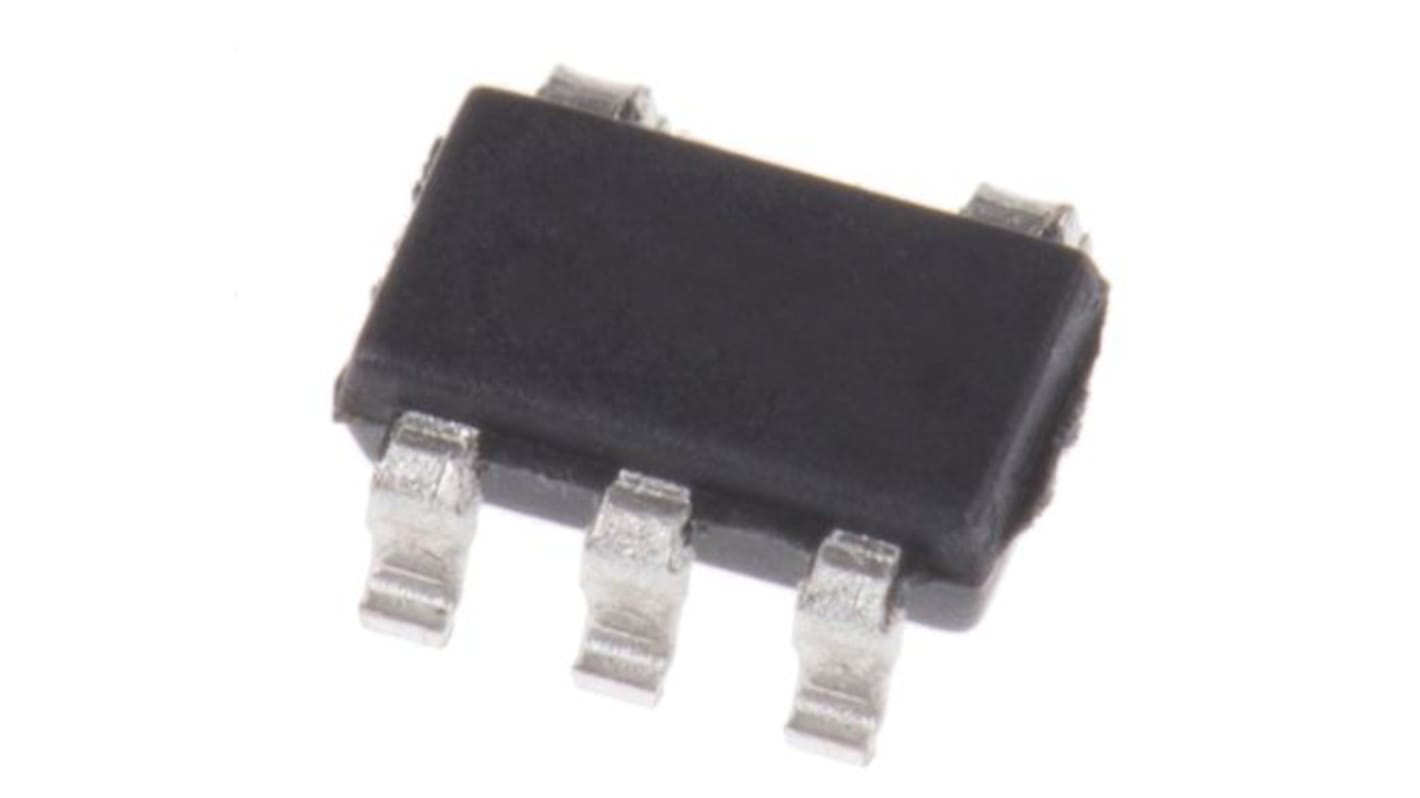

MAX4250EUK+T Maxim Integrated, Operational Amplifier, Op Amps, 3MHz 30 kHz, 2.4 → 5.5 V, 5-Pin SOT-23
- RS Stock No.:
- 190-6398P
- Mfr. Part No.:
- MAX4250EUK+T
- Brand:
- Maxim Integrated
Subtotal 5 units (supplied on a reel)*. Quantities below 150 on continuous strip
£16.25
(exc. VAT)
£19.50
(inc. VAT)
FREE delivery for orders over £50.00
- Final 1,230 unit(s), ready to ship
Units | Per unit |
---|---|
5 + | £3.25 |
*price indicative
- RS Stock No.:
- 190-6398P
- Mfr. Part No.:
- MAX4250EUK+T
- Brand:
- Maxim Integrated
Select all | Attribute | Value |
---|---|---|
Brand | Maxim Integrated | |
Amplifier Type | Operational Amplifier | |
Mounting Type | Surface Mount | |
Package Type | SOT-23 | |
Power Supply Type | Single | |
Number of Channels per Chip | 1 | |
Pin Count | 5 | |
Typical Single Supply Voltage | 2.4 → 5.5 V | |
Typical Gain Bandwidth Product | 3MHz | |
Output Type | Rail to Rail | |
Typical Slew Rate | 0.3V/µs | |
Maximum Operating Frequency | 30 kHz | |
Maximum Operating Temperature | +85 °C | |
Minimum Operating Temperature | -40 °C | |
Output Current | 68 (Typ.) mA | |
Maximum Input Voltage | 5.5 V | |
Typical Voltage Gain | 116 dB | |
Offset Voltage | 1.85mV | |
Height | 1.3mm | |
Input Offset Current | 100pA | |
Typical Input Voltage Noise Density | 27nV/√Hz | |
Dimensions | 3 x 1.75 x 1.3mm | |
Minimum Input Voltage | 2.4 V | |
Width | 1.75mm | |
Input Voltage Range | 2.4 → 5.5 V | |
Length | 3mm | |
