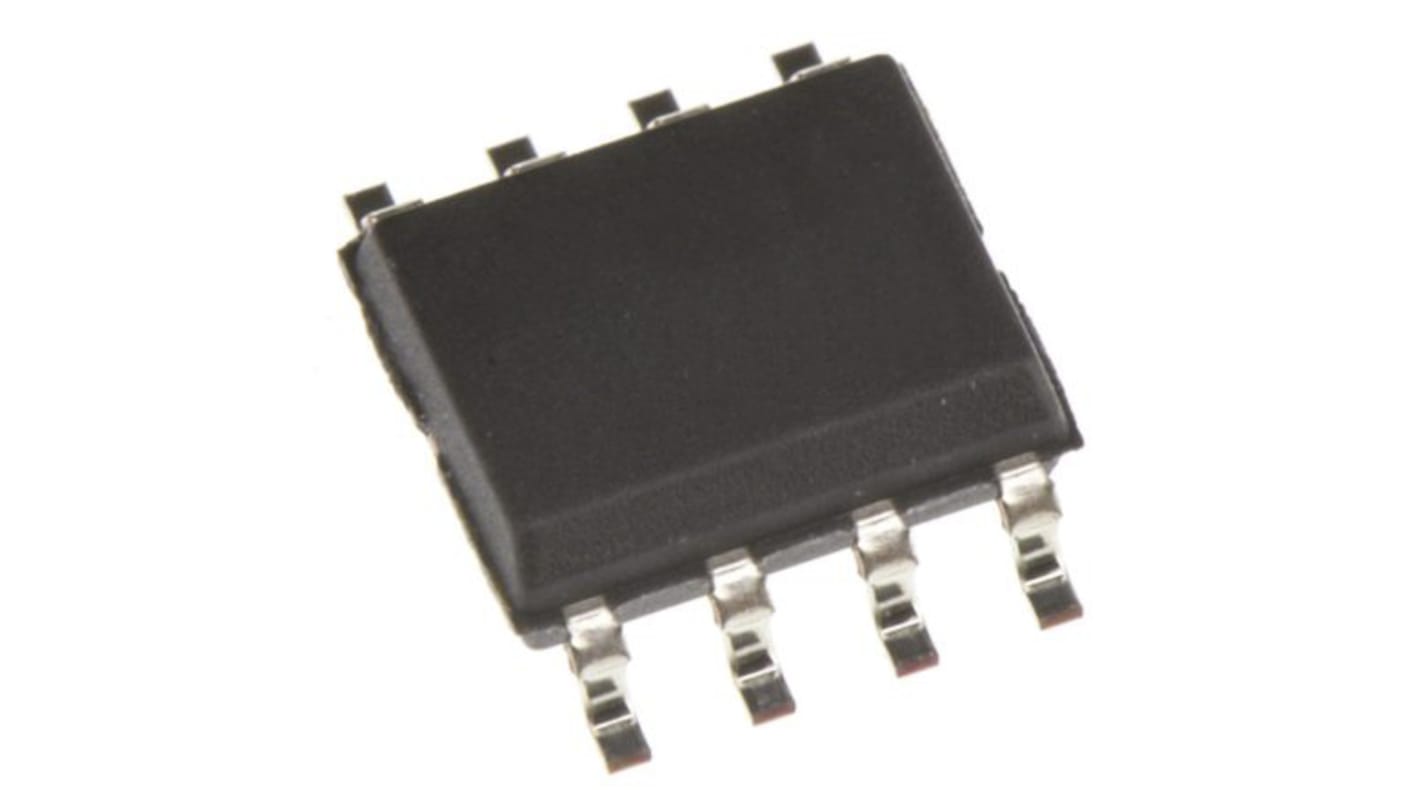

MC1458IDT STMicroelectronics, Dual Operational, Op Amp, 1MHz 100 kHz, 8-Pin SO

View all Op Amps

Subtotal (1 reel of 2500 units)*

£530.00

(exc. VAT)

£635.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.212£530.00

*price indicative

RS Stock No.:
189-1861
Mfr. Part No.:
MC1458IDT
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Amplifier Type

Dual Operational

Mounting Type

Surface Mount

Package Type

SO

Power Supply Type

Dual

Number of Channels per Chip

2

Pin Count

8

Typical Gain Bandwidth Product

1MHz

Output Type

Swing

Typical Dual Supply Voltage

±22V

Typical Slew Rate

0.8V/µs

Maximum Operating Frequency

100 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+105 °C

Typical Voltage Gain

200 V/mV

Output Current

35 mA

Offset Voltage

6mV

Maximum Input Voltage

±22 V

Input Offset Current

300nA

Length

5mm

Typical Input Voltage Noise Density

45nV/√Hz

Input Voltage Range

±22 (Maximum) V

Width

4mm

Dimensions

5 x 4 x 1.5mm

Height

1.5mm

The MC1458 is a high-performance, monolithic, dual operational amplifier intended for a wide range of Analogue applications. The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifiers, and general feedback applications.

Low power consumption
Large input voltage range
No latch-up
High gain
Short-circuit protection
No frequency compensation required
