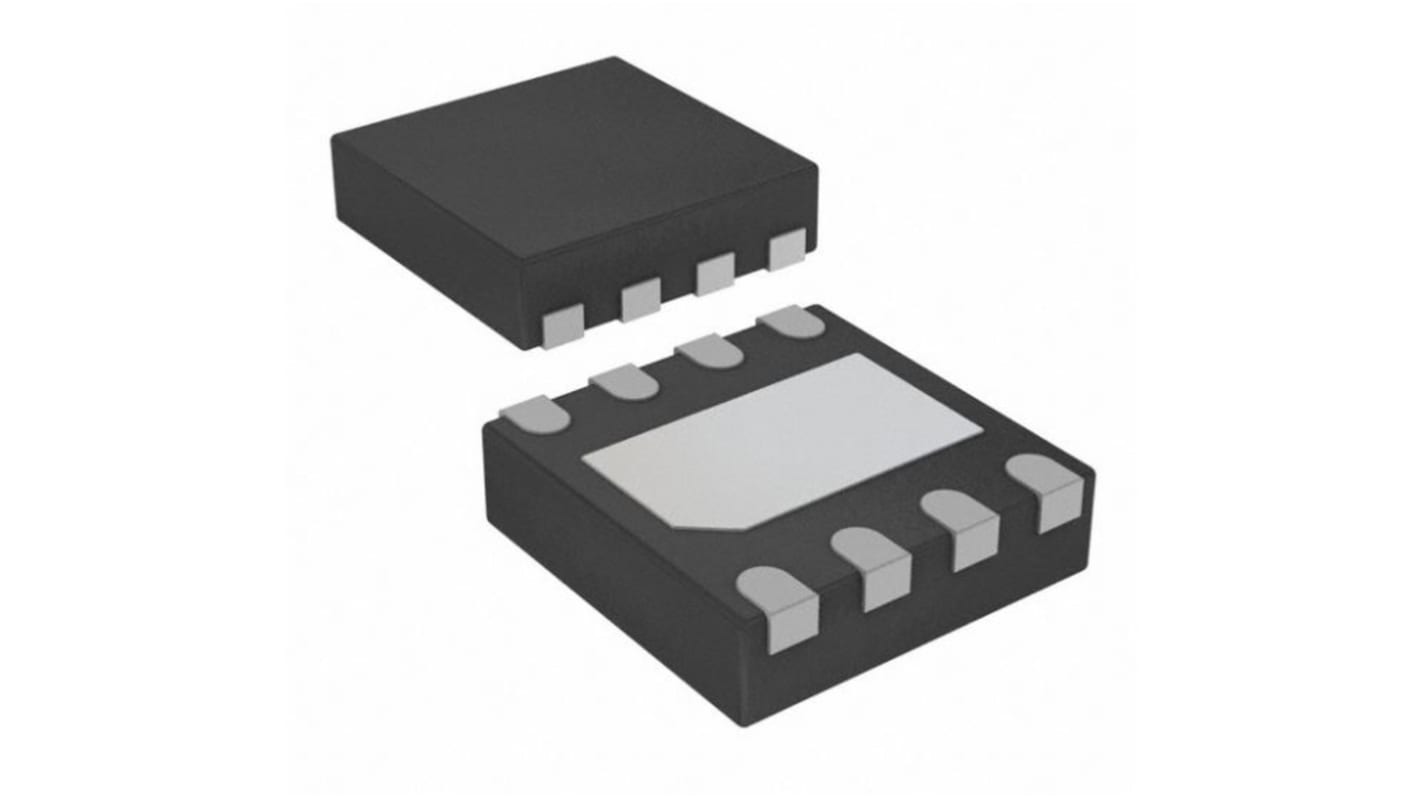

NCS2333MUTBG onsemi, Op Amp, 270MHz 1 kHz, 1.8 → 5.5 V, 8-Pin UDFN
- RS Stock No.:
- 185-9260
- Mfr. Part No.:
- NCS2333MUTBG
- Brand:
- onsemi
Subtotal (1 pack of 8 units)*
£6.112
(exc. VAT)
£7.336
(inc. VAT)
FREE delivery for orders over £50.00
- 6,000 unit(s) ready to ship
Units | Per unit | Per Pack* |
---|---|---|
8 - 72 | £0.764 | £6.11 |
80 - 152 | £0.659 | £5.27 |
160 - 792 | £0.571 | £4.57 |
800 - 1592 | £0.501 | £4.01 |
1600 + | £0.456 | £3.65 |
*price indicative
- RS Stock No.:
- 185-9260
- Mfr. Part No.:
- NCS2333MUTBG
- Brand:
- onsemi
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Mounting Type | Surface Mount | |
Package Type | UDFN | |
Power Supply Type | Single | |
Number of Channels per Chip | 1 | |
Pin Count | 8 | |
Typical Single Supply Voltage | 1.8 → 5.5 V | |
Typical Gain Bandwidth Product | 270MHz | |
Output Type | Rail to Rail | |
Typical Slew Rate | 0.15V/µs | |
Maximum Operating Frequency | 1 kHz | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Automotive Standard | AEC-Q100 | |
Offset Voltage | 30µV | |
Typical Voltage Gain | 145 dB | |
Maximum Input Voltage | 5.5 V | |
Output Current | 11 mA | |
Input Offset Current | 800pA | |
Input Voltage Range | 1.8 → 5.5 V | |
Width | 2mm | |
Height | 0.5mm | |
Dimensions | 2 x 2 x 0.5mm | |
Typical Input Voltage Noise Density | 62nV/√Hz | |
Minimum Input Voltage | 1.8 V | |
Length | 2mm | |
Select all | ||
---|---|---|
Brand onsemi | ||
Mounting Type Surface Mount | ||
Package Type UDFN | ||
Power Supply Type Single | ||
Number of Channels per Chip 1 | ||
Pin Count 8 | ||
Typical Single Supply Voltage 1.8 → 5.5 V | ||
Typical Gain Bandwidth Product 270MHz | ||
Output Type Rail to Rail | ||
Typical Slew Rate 0.15V/µs | ||
Maximum Operating Frequency 1 kHz | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Automotive Standard AEC-Q100 | ||
Offset Voltage 30µV | ||
Typical Voltage Gain 145 dB | ||
Maximum Input Voltage 5.5 V | ||
Output Current 11 mA | ||
Input Offset Current 800pA | ||
Input Voltage Range 1.8 → 5.5 V | ||
Width 2mm | ||
Height 0.5mm | ||
Dimensions 2 x 2 x 0.5mm | ||
Typical Input Voltage Noise Density 62nV/√Hz | ||
Minimum Input Voltage 1.8 V | ||
Length 2mm | ||
- COO (Country of Origin):
- TH
Zero Drift: 0.07 μV/°C max
Low Noise: 1.1 μVpp, 0.1 Hz to 10 Hz
Quiescent Current per Channel: 17 μA Typical at 3.3 V Supply
Supply Voltage: 1.8 V to 5.5 V
Rail−to−Rail Input and Output
Amplifies small differential voltages with better output accuracy
Better accuracy over temperature
Better output accuracy with lower noise
Low power consumption suited for battery powered devices
Wide supply voltage compatible with a variety of applications
Wide input and output signal range
Applications
Temperature Measurements
Transducer Applications
Current Sensing
End Products
Battery Powered Instruments
Electronic Scales
Medical Instrumentation
