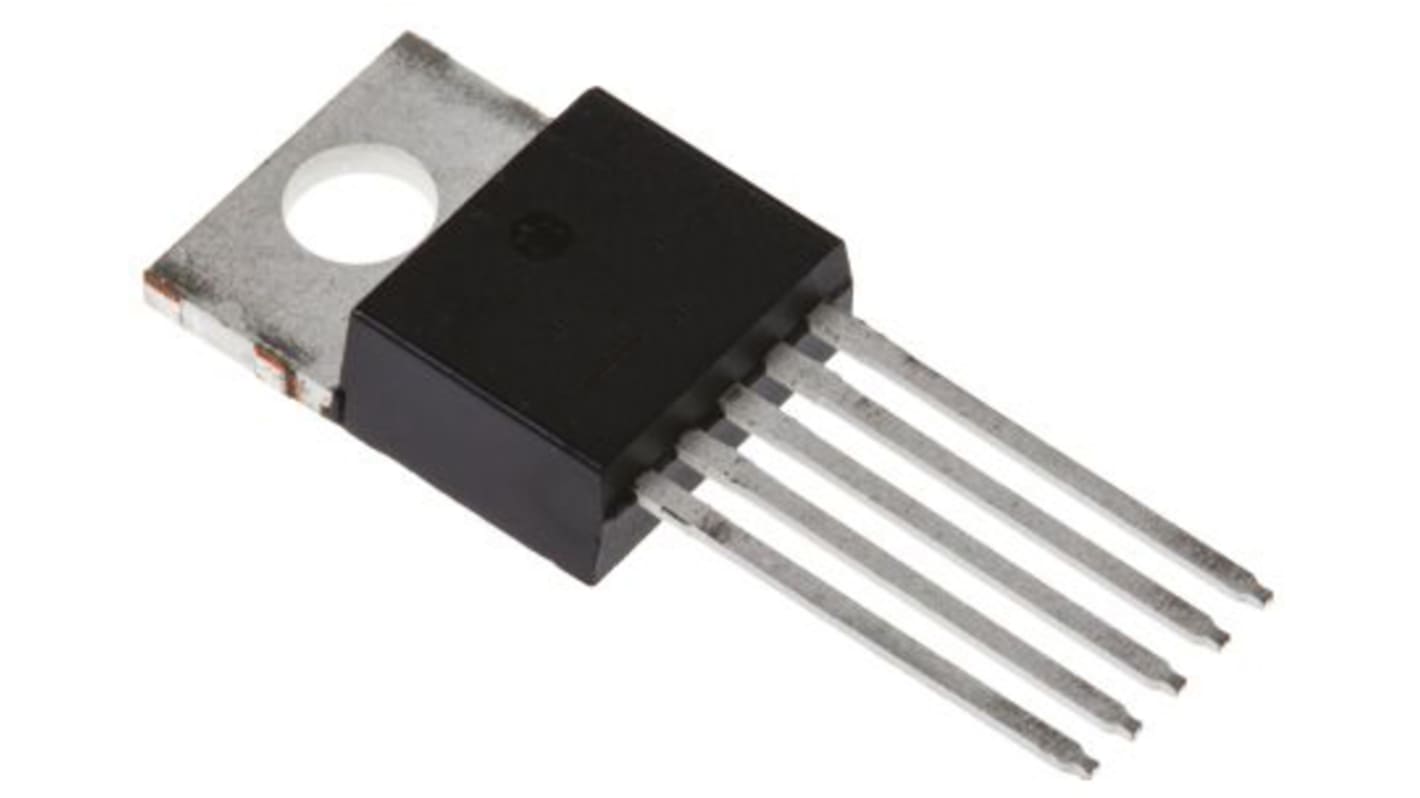

LA6500-E onsemi, Op Amp, 5-Pin TO-220
- RS Stock No.:
- 184-4764
- Mfr. Part No.:
- LA6500-E
- Brand:
- onsemi
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 184-4764
- Mfr. Part No.:
- LA6500-E
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Amplifier Type | Operational Amplifier | |
| Mounting Type | Through Hole | |
| Package Type | TO-220 | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 1 | |
| Pin Count | 5 | |
| Typical Dual Supply Voltage | ±18V | |
| Typical Slew Rate | 0.15V/µs | |
| Maximum Operating Temperature | +75 °C | |
| Minimum Operating Temperature | -20 °C | |
| Offset Voltage | 6mV | |
| Output Current | 1 A | |
| Maximum Input Voltage | 18 V | |
| Typical Voltage Gain | 100 dB | |
| Minimum Input Voltage | -18 V | |
| Height | 15mm | |
| Dimensions | 10.4 x 4.5 x 15mm | |
| Input Offset Current | 200nA | |
| Length | 10.4mm | |
| Width | 4.5mm | |
| Input Voltage Range | ±18 V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Amplifier Type Operational Amplifier | ||
Mounting Type Through Hole | ||
Package Type TO-220 | ||
Power Supply Type Dual | ||
Number of Channels per Chip 1 | ||
Pin Count 5 | ||
Typical Dual Supply Voltage ±18V | ||
Typical Slew Rate 0.15V/µs | ||
Maximum Operating Temperature +75 °C | ||
Minimum Operating Temperature -20 °C | ||
Offset Voltage 6mV | ||
Output Current 1 A | ||
Maximum Input Voltage 18 V | ||
Typical Voltage Gain 100 dB | ||
Minimum Input Voltage -18 V | ||
Height 15mm | ||
Dimensions 10.4 x 4.5 x 15mm | ||
Input Offset Current 200nA | ||
Length 10.4mm | ||
Width 4.5mm | ||
Input Voltage Range ±18 V | ||
- COO (Country of Origin):
- PH
LA6500 is a general purpose power operational amplifier.
High output current (1.0 A)
High gain
Integrated current limiter
Can operate from a single supply
High gain
Integrated current limiter
Can operate from a single supply
