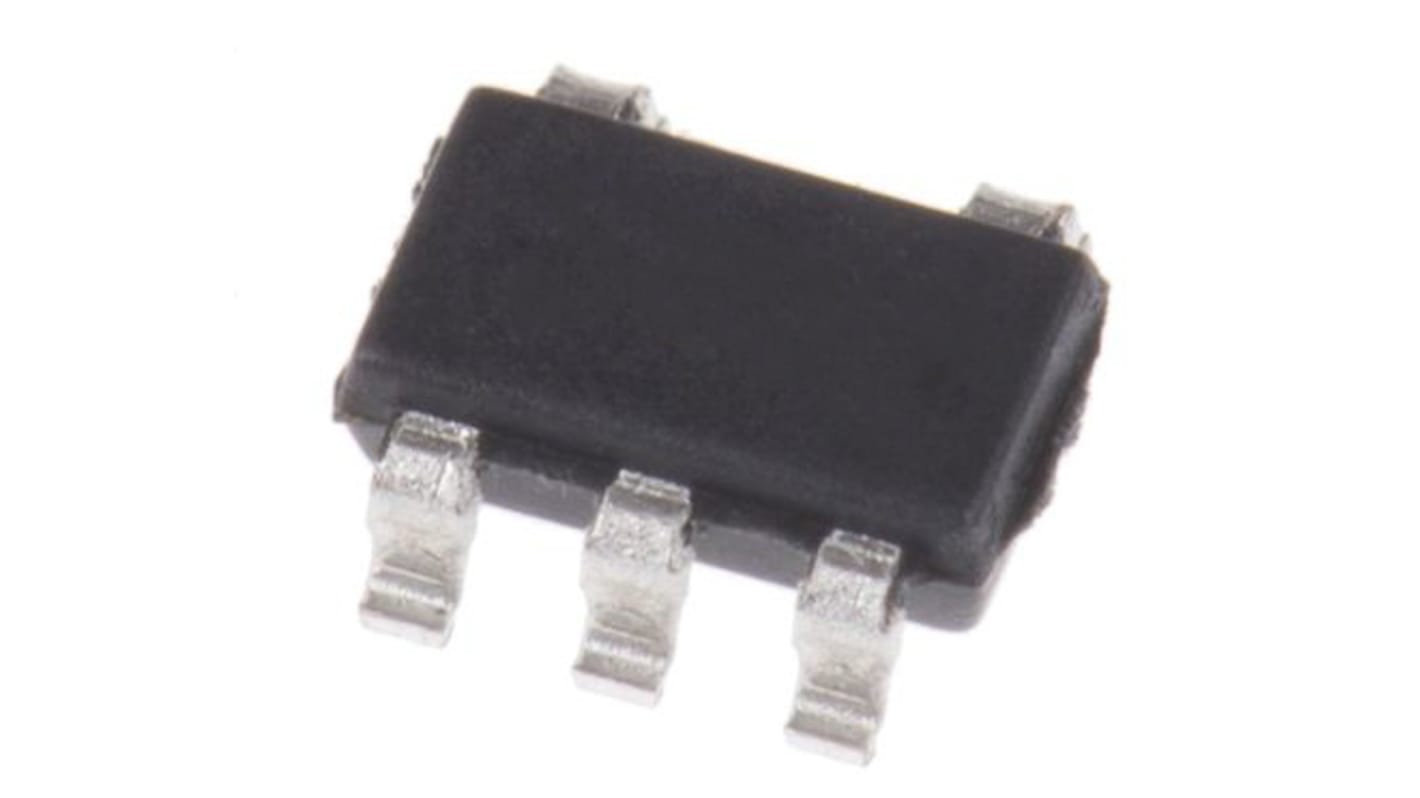

AD8031ARTZ-REEL7 Analog Devices, High Speed, Op Amp, RRIO, 80MHz 5 MHz, 2.7 → 12 V, 5-Pin SOT-23

View all Op Amps
Bulk discount available

Subtotal 10 units (supplied on a continuous strip)*

£30.34

(exc. VAT)

£36.41

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 5 unit(s), ready to ship
Units
Per unit
10 - 95£3.034
100 - 495£2.488
500 +£2.178

*price indicative

Packaging Options:
RS Stock No.:
183-2034P
Mfr. Part No.:
AD8031ARTZ-REEL7
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Amplifier Type

High Speed

Mounting Type

Surface Mount

Package Type

SOT-23

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

2.7 → 12 V

Typical Gain Bandwidth Product

80MHz

Output Type

Rail to Rail

Typical Slew Rate

30V/µs

Maximum Operating Frequency

5 MHz

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Maximum Input Voltage

12 V

Offset Voltage

±2.5mV

Rail to Rail

Rail to Rail Input/Output

Output Current

15 mA

Typical Voltage Gain

80 dB

Height

1.3mm

Width

1.7mm

Input Voltage Range

2.7 → 12 V

Dimensions

3 x 1.7 x 1.3mm

Typical Input Voltage Noise Density

15nV/√Hz

Length

3mm

Input Offset Current

500nA

Minimum Input Voltage

2.7 V

COO (Country of Origin):
US
Low power
Supply current 800 μA/amplifier
Fully specified at +2.7 V, +5 V and ±5 V supplies
High speed and fast settling on 5 V
80 MHz, –3 dB bandwidth (G = +1)
30 V/μs slew rate
125 ns settling time to 0.1%
Output current: 15 mA
High grade option
VOS (maximum) = 1.5 mV
Rail-to-rail input and output
No phase reversal with input
0.5 V beyond supplies
Input CMVR extends beyond rails by 200 mV
Output swing to within 20 mV of either rail
Low distortion
–62 dB @ 1 MHz, VO = 2 V p-p
–86 dB @ 100 kHz, VO = 4.6 V p-p
