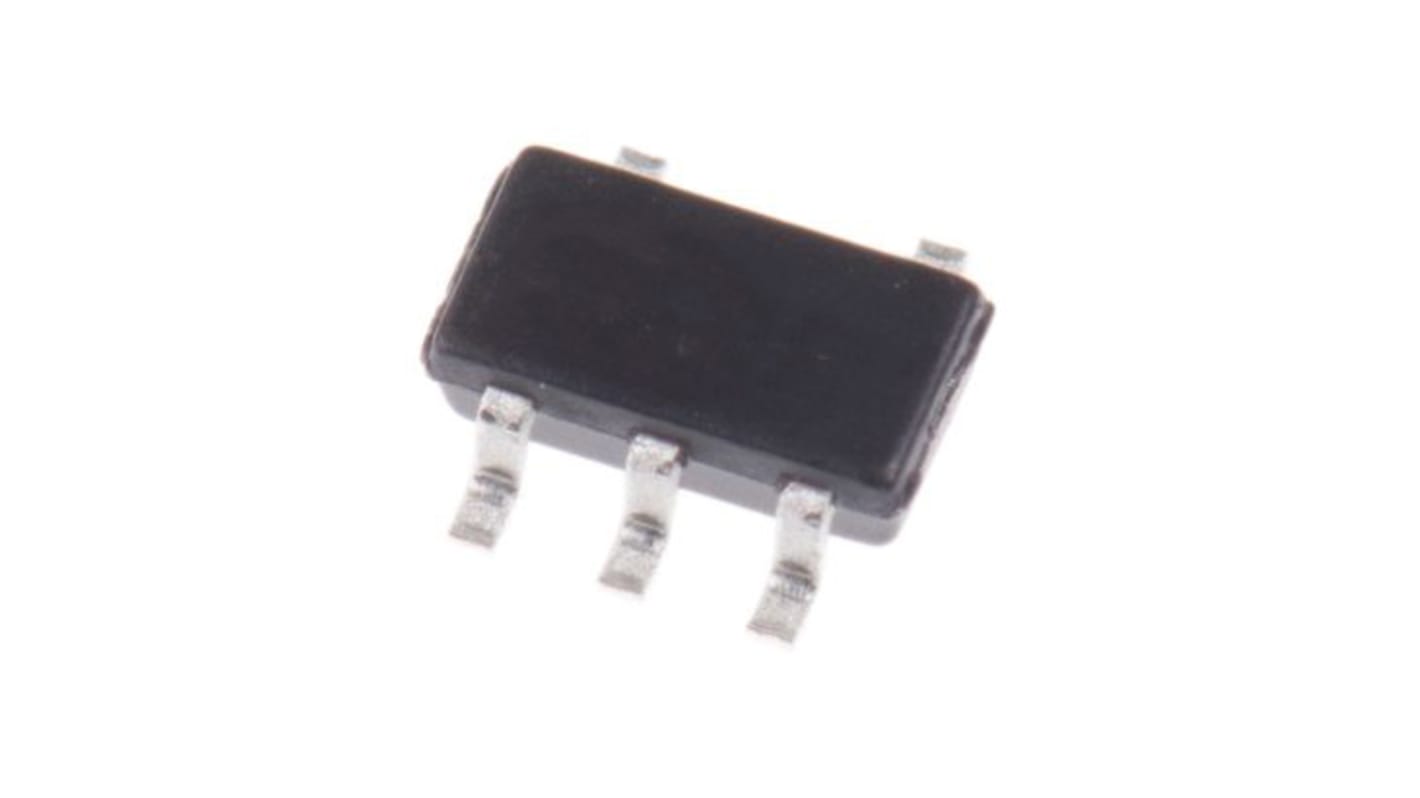

NCS20081SN3T1G onsemi, Operational Amplifier, Op Amp, RRIO, 1.2MHz 10 kHz, 1.8 → 5.5 V, 5-Pin TSOP

View all Op Amps
Bulk discount available

Subtotal 500 units (supplied on a reel)*

£121.00

(exc. VAT)

£145.00

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 2,800 unit(s), ready to ship
Units
Per unit
500 - 950£0.242
1000 +£0.21

*price indicative

Packaging Options:
RS Stock No.:
181-1947P
Mfr. Part No.:
NCS20081SN3T1G
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

TSOP

Power Supply Type

Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

1.8 → 5.5 V

Typical Gain Bandwidth Product

1.2MHz

Output Type

Rail to Rail

Typical Slew Rate

0.4V/µs

Maximum Operating Frequency

10 kHz

Maximum Operating Temperature

+125 °C

Minimum Operating Temperature

-40 °C

Rail to Rail

Rail to Rail Input/Output

Output Current

±100 mA

Typical Voltage Gain

120 dB

Maximum Input Voltage

5.5 V

Offset Voltage

4mV

Automotive Standard

AEC-Q100

Width

1.5mm

Input Offset Current

1100pA

Minimum Input Voltage

1.8 V

Typical Input Voltage Noise Density

30nV/√Hz

Length

3mm

Input Voltage Range

1.8 → 5.5 V

Dimensions

3 x 1.5 x 1mm

Height

1mm

COO (Country of Origin):
MY
The NCS2008 series operational amplifiers provide rail−to−rail input and output operation, 1.2 MHz bandwidth, and are available in single, dual, and quad configurations. Rail−to−rail operation gives designers use of the entire supply voltage range while taking advantage of the 1.2 MHz bandwidth. The NCS2008 can operate on supply voltages from 1.8 to 5.5 V over a temperature range from −40 to 125°C. At a 1.8 V supply, this device has a slew rate of 0.4 V/s while consuming only 42 μA of quiescent current per channel. Since this is a CMOS device, high input impedance and low bias currents make it ideal for interfacing to a wide variety of signal sensors. The NCS2008 devices are available in a variety of compact packages.

Rail−to−Rail Input and Output
Wide Supply Range: 1.8 to 5.5 V
Wide Bandwidth: 1.2 MHz
High Slew Rate: 0.4 V/s at VS = 1.8 V
Low Supply Current: 42 μA per Channel at VS = 1.8 V
Low Input Bias Current: 1 pA Typical
Wide Temperature Range: −40 to 125°C
Available in a Variety of Packages
These Devices are Pb−Free, Halogen Free/BFR Free
Unity Gain Buffer
Battery Powered / Low Quiescent Current Applications
Low Cost Current Sensing
Automotive
