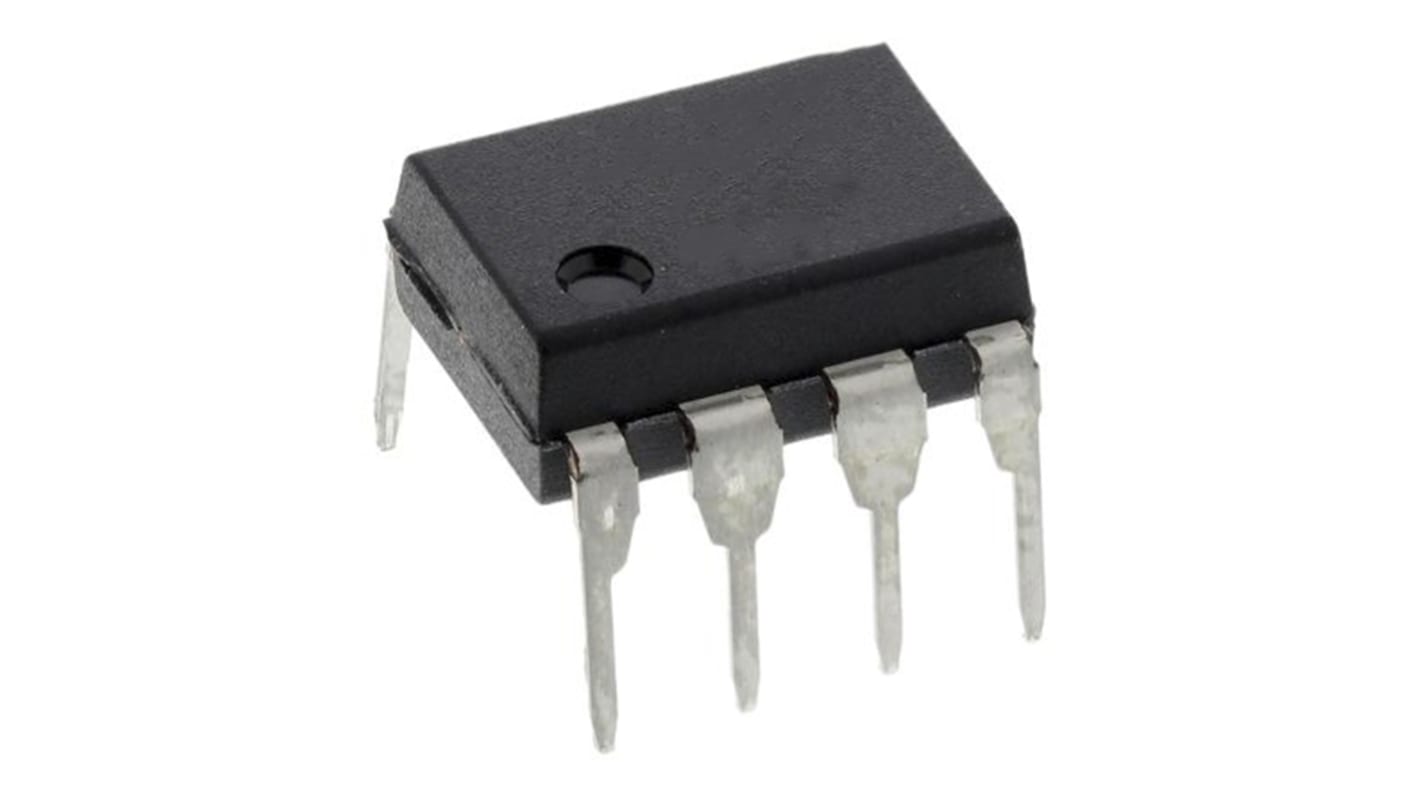

ICL7650SCPA-1Z Renesas Electronics, Chopper Stabilized, Op Amp, 2MHz, 3 → 15 V, 8-Pin PDIP

RS Stock No.:: 170-8205
Mfr. Part No.:: ICL7650SCPA-1Z
Brand:: Renesas Electronics

Technical Reference (2)

ICL7650SCPA-1Z Renesas Electronics, Chopper Stabilized, Op Amp, 2MHz, 3 → 15 V, 8-Pin PDIP

View all Op Amps

6 In stock - FREE next working day delivery available

Price Each (In a Tube of 50)

£6.399

(exc. VAT)

£7.679

(inc. VAT)

Units	Per unit	Per Tube*
50 +	£6.399	£319.95

*price indicative

RS Stock No.:: 170-8205
Mfr. Part No.:: ICL7650SCPA-1Z
Brand:: Renesas Electronics

COO (Country of Origin):: US

Attribute	Value
Amplifier Type	Chopper Stabilized
Mounting Type	Through Hole
Package Type	PDIP
Power Supply Type	Dual, Single
Number of Channels per Chip	1
Pin Count	8
Typical Single Supply Voltage	3 → 15 V
Typical Gain Bandwidth Product	2MHz
Typical Dual Supply Voltage	±3 V, ±5 V
Typical Slew Rate	2.5V/µs
Minimum Operating Temperature	0 °C
Maximum Operating Temperature	+70 °C
Typical Voltage Gain	150 dB
Rail to Rail	No
Dimensions	10.16 x 7.11 x 4.95mm
Height	4.95mm
Length	10.16mm
Width	7.11mm

ICL7650SCPA-1Z Renesas Electronics, Chopper Stabilized, Op Amp, 2MHz, 3 → 15 V, 8-Pin PDIP

Technical Reference (2)

ICL7650S, 2MHz, Super Chopper-Stabilised Operational Amplifier, Intersil
