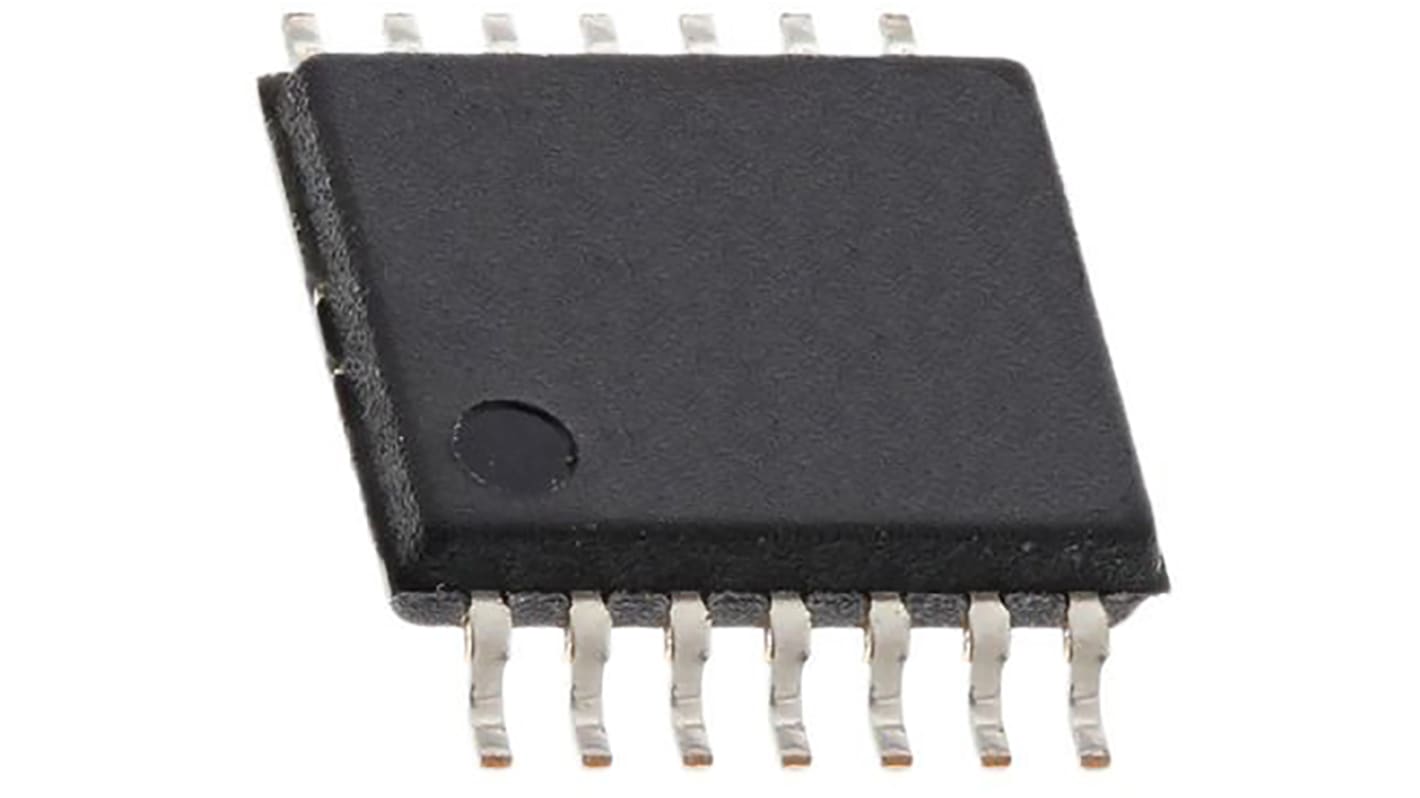

ALM2402QPWPRQ1 Texas Instruments, Precision, Op Amp, 600kHz, 14-Pin HTSSOP
- RS Stock No.:
- 133-0133P
- Mfr. Part No.:
- ALM2402QPWPRQ1
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 133-0133P
- Mfr. Part No.:
- ALM2402QPWPRQ1
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Amplifier Type | Precision | |
| Mounting Type | Surface Mount | |
| Package Type | HTSSOP | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 2 | |
| Pin Count | 14 | |
| Typical Gain Bandwidth Product | 600kHz | |
| Typical Slew Rate | 0.17V/µs | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Offset Voltage | 15mV | |
| Output Current | 400 mA | |
| Typical Voltage Gain | 90 dB | |
| Maximum Input Voltage | 18 V | |
| Rail to Rail | No | |
| Length | 5.1mm | |
| Typical Input Voltage Noise Density | 110nV/√Hz | |
| Minimum Input Voltage | -0.3 V | |
| Input Offset Current | 30nA | |
| Width | 4.5mm | |
| Height | 1.05mm | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Input Voltage Range | -0.3 → 18 V | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Amplifier Type Precision | ||
Mounting Type Surface Mount | ||
Package Type HTSSOP | ||
Power Supply Type Dual | ||
Number of Channels per Chip 2 | ||
Pin Count 14 | ||
Typical Gain Bandwidth Product 600kHz | ||
Typical Slew Rate 0.17V/µs | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Offset Voltage 15mV | ||
Output Current 400 mA | ||
Typical Voltage Gain 90 dB | ||
Maximum Input Voltage 18 V | ||
Rail to Rail No | ||
Length 5.1mm | ||
Typical Input Voltage Noise Density 110nV/√Hz | ||
Minimum Input Voltage -0.3 V | ||
Input Offset Current 30nA | ||
Width 4.5mm | ||
Height 1.05mm | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Input Voltage Range -0.3 → 18 V | ||
Precision Operational Amplifiers, Texas Instruments
A range of precision operational amplifiers from Texas Instruments featuring low input offset voltage and low offset voltage drift with temperature. These devices exhibit stable and predictable operating characteristics which are essential in many demanding applications. CMOS and JFET input types also have extremely low input bias currents making them ideal for use in circuits where high values of resistance are required.
