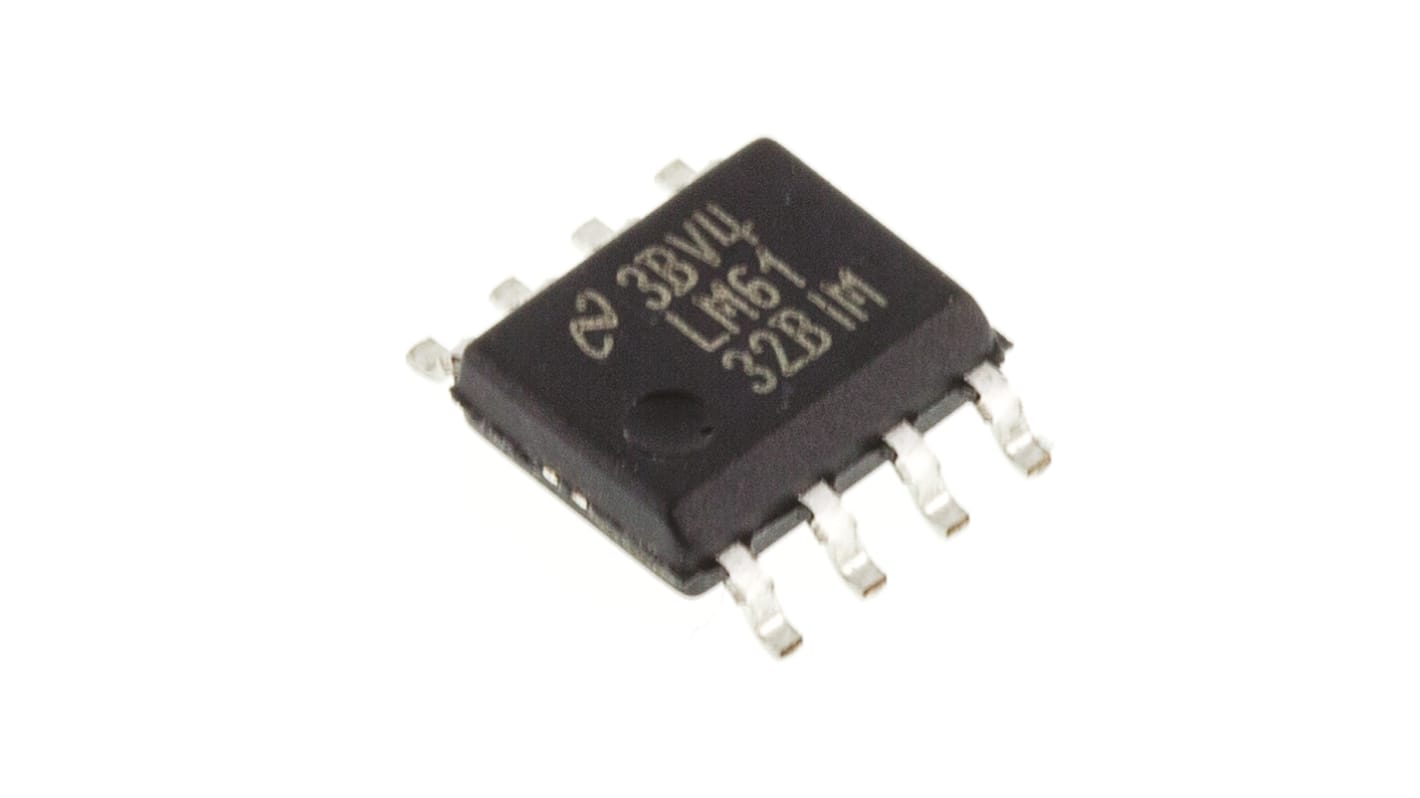

Texas Instruments, Operational Amplifier, 10 MHz, 8-Pin 24 V SOIC
- RS Stock No.:
- 121-8782
- Mfr. Part No.:
- LM6132BIM/NOPB
- Brand:
- Texas Instruments
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 121-8782
- Mfr. Part No.:
- LM6132BIM/NOPB
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 10MHz | |
| Minimum Supply Voltage | 3V | |
| Maximum Supply Voltage | 24V | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 350 nA | |
| Vos - Input Offset Voltage | 8 mV | |
| Slew Rate | 14V/μs | |
| Maximum Operating Temperature | 85°C | |
| Series | LM6132 | |
| Width | 3.9 mm | |
| Length | 4.9mm | |
| Height | 1.45mm | |
| Standards/Approvals | REACH, RoHS | |
| Automotive Standard | No | |
| Output Current | 2mA | |
| Input Offset Current | 50 nA | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 10MHz | ||
Minimum Supply Voltage 3V | ||
Maximum Supply Voltage 24V | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 350 nA | ||
Vos - Input Offset Voltage 8 mV | ||
Slew Rate 14V/μs | ||
Maximum Operating Temperature 85°C | ||
Series LM6132 | ||
Width 3.9 mm | ||
Length 4.9mm | ||
Height 1.45mm | ||
Standards/Approvals REACH, RoHS | ||
Automotive Standard No | ||
Output Current 2mA | ||
Input Offset Current 50 nA | ||
- COO (Country of Origin):
- US
High Speed Operational Amplifiers
