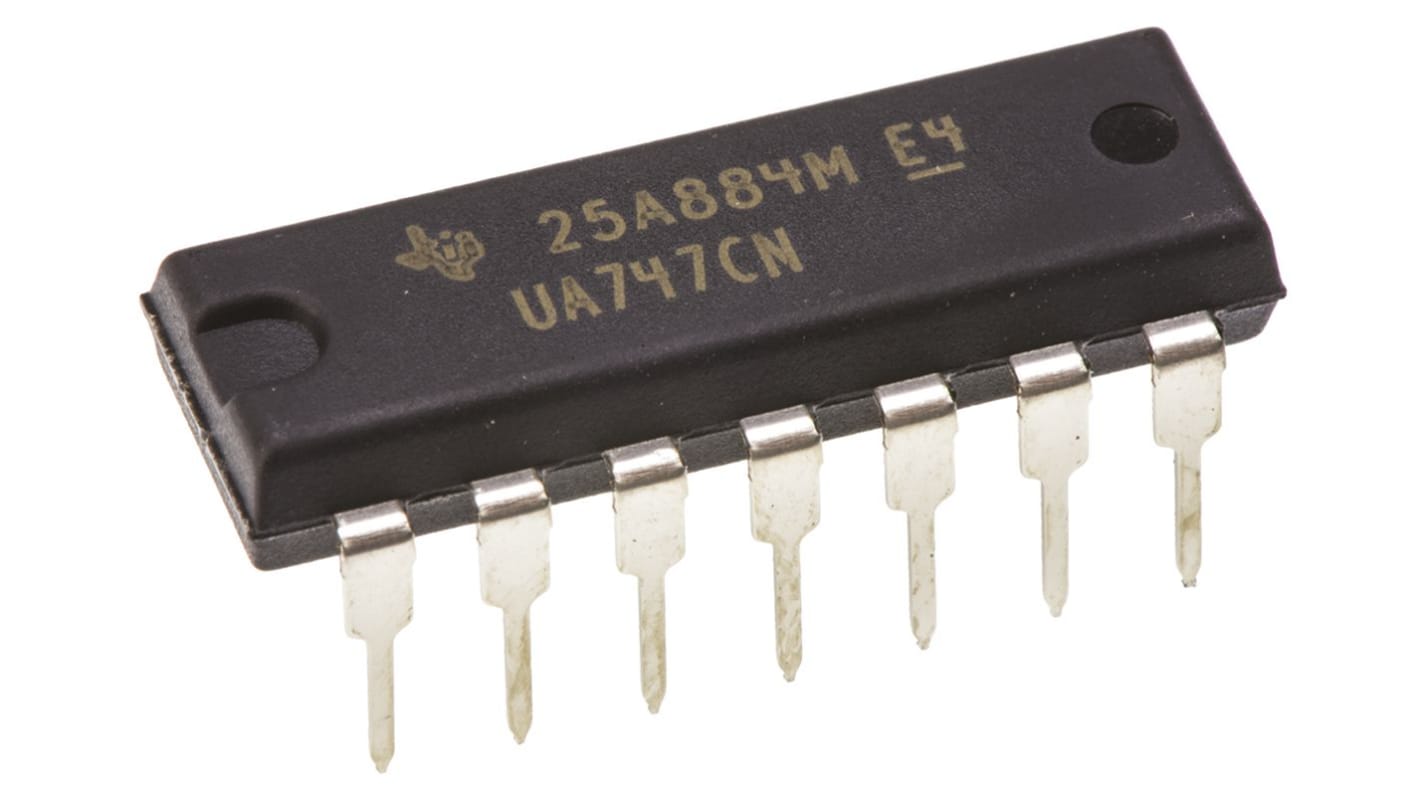

UA747CN Texas Instruments, Op Amp, 1MHz, 14-Pin PDIP
- RS Stock No.:
- 305-816P
- Mfr. Part No.:
- UA747CN
- Brand:
- Texas Instruments
Bulk discount available
Subtotal 5 units (supplied in a tube)*
£4.35
(exc. VAT)
£5.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 70 unit(s) ready to ship
- Plus 1,000 unit(s) shipping from 10 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | £0.87 |
| 10 - 14 | £0.76 |
| 15 - 19 | £0.72 |
| 20 + | £0.67 |
*price indicative
- RS Stock No.:
- 305-816P
- Mfr. Part No.:
- UA747CN
- Brand:
- Texas Instruments
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Power Supply Type | Dual | |
| Number of Channels per Chip | 2 | |
| Pin Count | 14 | |
| Typical Gain Bandwidth Product | 1MHz | |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±5 V, ±9 V | |
| Typical Slew Rate | 0.5V/µs | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | +70 °C | |
| Rail to Rail | No | |
| Typical Voltage Gain | 106 dB | |
| Height | 4.57mm | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Length | 19.3mm | |
| Width | 6.35mm | |
