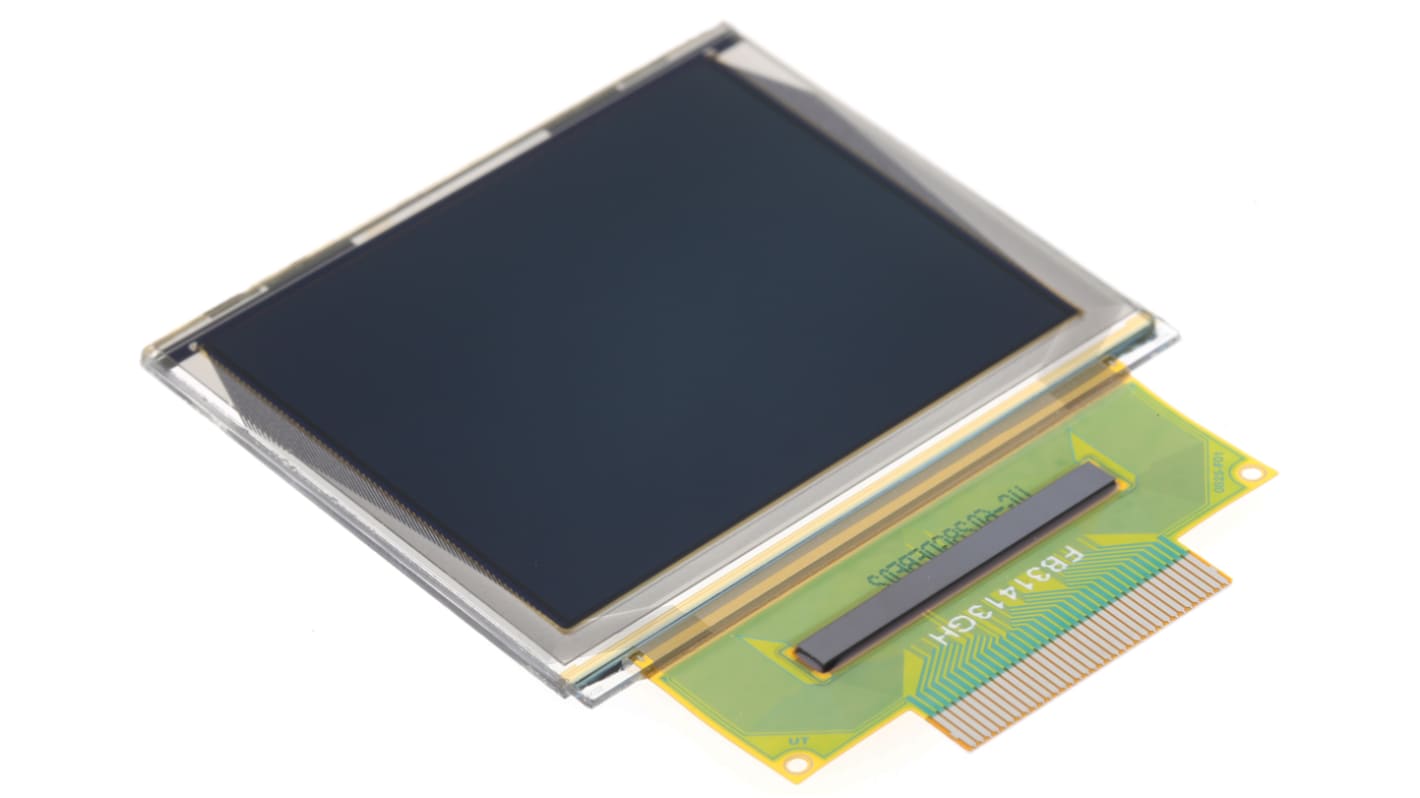

Midas 1.69in Red, Green, Blue Passive matrix OLED Display 160 x 128pixels TAB Multi Interface
- RS Stock No.:
- 823-5982
- Mfr. Part No.:
- MCOT160128BY-RGBM
- Brand:
- Midas
Discontinued
- RS Stock No.:
- 823-5982
- Mfr. Part No.:
- MCOT160128BY-RGBM
- Brand:
- Midas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Midas | |
| Diagonal Display Size | 1.69in | |
| Viewing Area Dimensions | 33.575 x 26.864mm | |
| Matrix Type | Passive | |
| Display Colours | Red, Green, Blue | |
| Resolution | 160 x 128pixels | |
| Number of Colours | 262,144 | |
| Contrast Ratio | >2000:1 | |
| Driver Mounting | TAB | |
| Interface Ports | Multi | |
| Dimensions | 39.9 x 34 x 1.6mm | |
| Depth | 1.6mm | |
| Height | 34mm | |
| Maximum Operating Temperature | +70°C | |
| Width | 39.9mm | |
| Operating Temperature Range | -40 → +70°C | |
| Viewing Area Width | 35.57mm | |
| Viewing Area Height | 28.86mm | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Midas | ||
Diagonal Display Size 1.69in | ||
Viewing Area Dimensions 33.575 x 26.864mm | ||
Matrix Type Passive | ||
Display Colours Red, Green, Blue | ||
Resolution 160 x 128pixels | ||
Number of Colours 262,144 | ||
Contrast Ratio >2000:1 | ||
Driver Mounting TAB | ||
Interface Ports Multi | ||
Dimensions 39.9 x 34 x 1.6mm | ||
Depth 1.6mm | ||
Height 34mm | ||
Maximum Operating Temperature +70°C | ||
Width 39.9mm | ||
Operating Temperature Range -40 → +70°C | ||
Viewing Area Width 35.57mm | ||
Viewing Area Height 28.86mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW
Midas RGB Graphic OLED Displays, TAB
A range of TAB (Taped Automated Bonding) RGB Full Colour OLED displays from Midas. The construction of these TAB displays allow for very compact, low-profile modules and require significantly less space than traditional LCD graphics modules. The Passive Matrix OLED technology provides vivid high-visibility colour displays with outstanding visual characteristics, including high contrast and wide viewing angles.
Viewing angle: > 160° horizontal and vertical
Contrast ratio: > 1000:1
Operating temperature range: -30 to 70°C
Operating life: 30,000 hours at 25°C
Interface type: Parallel/Serial selectable
Contrast ratio: > 1000:1
Operating temperature range: -30 to 70°C
Operating life: 30,000 hours at 25°C
Interface type: Parallel/Serial selectable
Midas Graphic PMOLED Displays
