Aoip Instrumentation OM 10 Rechargeable NiCd Ohm Meter, Maximum Resistance Measurement 50 kΩ, Resistance Measurement

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

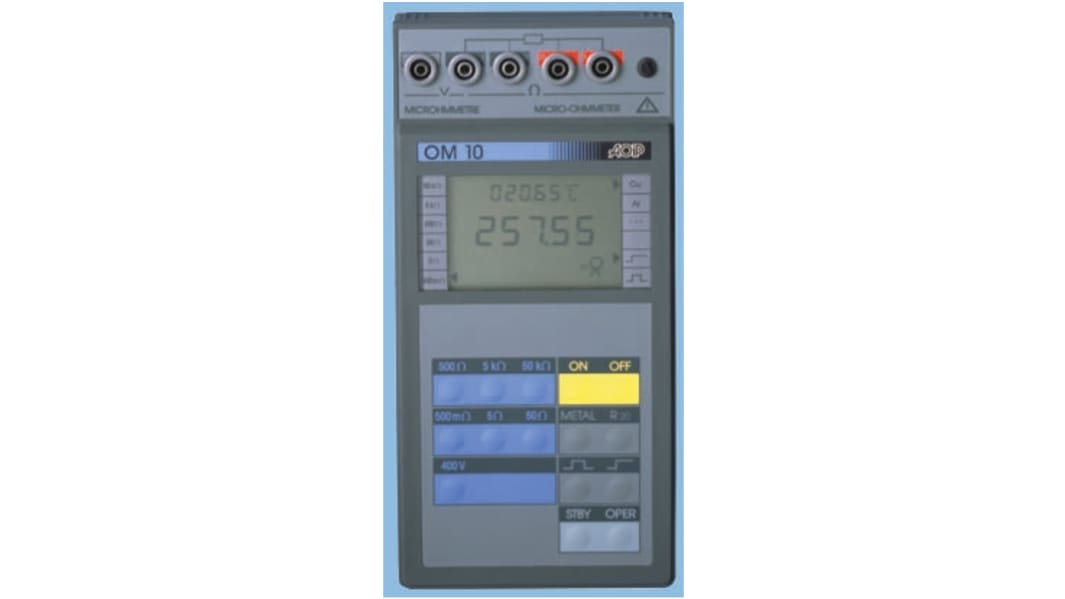

Winding resistance tester resolution 10μΩ AOIP OM10

The OM10 micro-ohmmeter measures all resistances and windings from 10 μΩ (resolution) → 50 kΩ.
Ranges from 500 mΩ → 50 kΩ.
Portable and self-contained field enclosure with stand for tabletop use.
Measurements on 4 wires for resistances such as:
- Power supply cable
- Weight continuity braid
- Contact resistance
- Mechanical connection (solder)
- Motor
- Transformer.
Automatic compensation for EMF parasites, eliminating errors in measurement.
Display of the measured resistance value at 20 °C, depending on the ambient temperature and the temperature coefficient of the metal being measured.
Power supply via integral rechargeable battery or mains power.
Delivered in carry case with instructions and mains charger adapter.

Standards

  EN 61010-1

Specifications
Attribute Value
Maximum Resistance Measurement 50 kΩ
Resistance Measurement Resolution 0.1 °C, 1 V, 10 μΩ
Measurement Type 4 Wire
Battery Life 10 h
Battery Type Rechargeable NiCd
Power Source Battery
Handheld Yes
Dimensions 120 x 65 x 245mm
Weight 1.1kg
Height 245mm
Length 120mm
Maximum Accuracy +0.05% + 5 Ω
Maximum Operating Temperature +55°C
Minimum Accuracy ±0.05% + 50 μΩ
Model Number p OM 10
Width 65mm
Minimum Operating Temperature -10°C
1 In stock for delivery within 1 working days
Price Each
£ 1,576.86
(exc. VAT)
£ 1,892.23
(inc. VAT)
Units
Per unit
1 +
£1,576.86
Not available for guaranteed pre 9am/10am delivery
