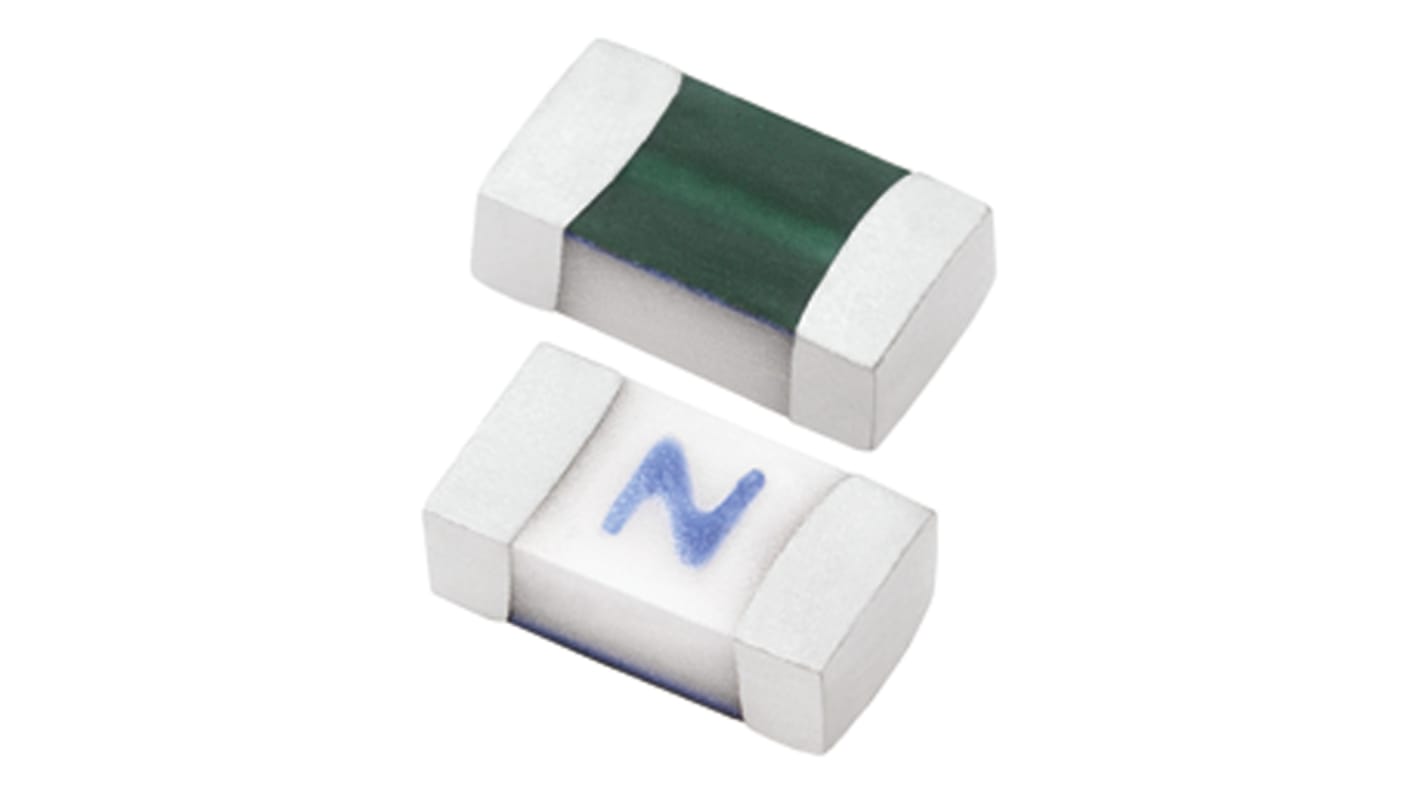

Littelfuse 441 Series fuses has been especially designed to provide over current protection to circuits that operate under high working ambient temperatures up to 150ºC and high inrush currents. Ideal for handheld electronics, LCD displays, battery packs, hard disk drives, SD memory cards and automotive electronics applications.
Operating temperature from -55°C to +150°C 100% Lead-free and RoHS compliant and Halogen-free Suitable for both leaded and lead-free reflow/wave soldering Ultra high I²t values
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
Attribute
Value
Current Rating
5A
Voltage Rating
32V
Fuse Speed
F
Body Material
Ceramic
Body Length
1.54mm
Body Width
0.85mm
Body Height
0.502mm
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+150°C
Dimensions
1.54 x 0.85 x 0.502mm
Terminal Material
Nickel, Silver, Tin
