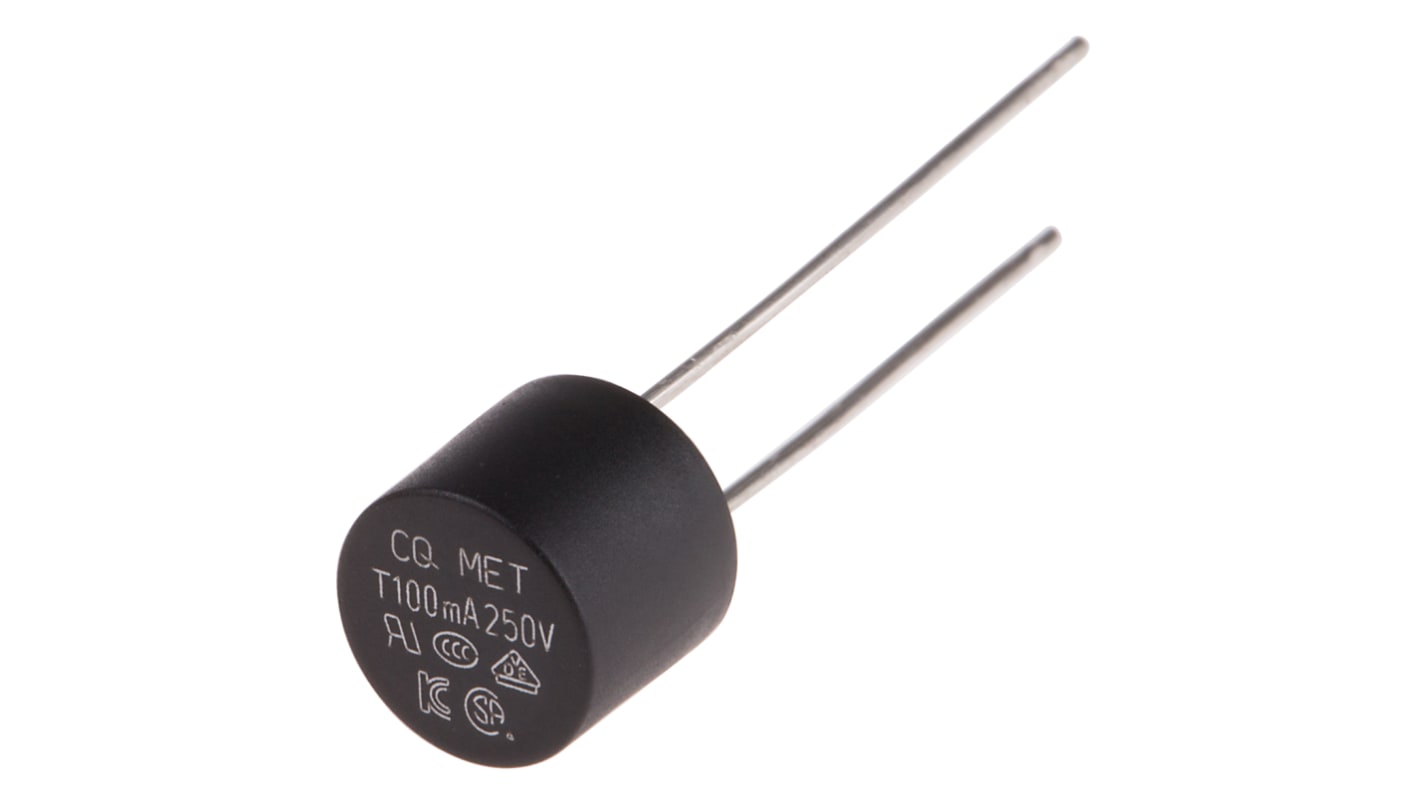

RS PROPC Board Non Resettable Fuse, Radial 100mA, 250V
- RS Stock No.:
- 767-5169
- Brand:
- RS PRO
660 In stock - FREE next working day delivery available
130 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 10)
£0.336
(exc. VAT)
£0.403
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 40 | £0.336 | £3.36 |
| 50 - 240 | £0.316 | £3.16 |
| 250 - 490 | £0.299 | £2.99 |
| 500 - 990 | £0.282 | £2.82 |
| 1000 + | £0.269 | £2.69 |
| *price indicative | ||
- RS Stock No.:
- 767-5169
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Slow Blow TR5 Fuses
RS slow blow TR5 fuses are a convenient and reliable solution to a vast array of application requirements.
All fuses have Thermoplaste Polyamide bodies
Specifications
Attribute | Value |
|---|---|
| Current Rating | 100mA |
| Lead Orientation | Radial |
| Voltage Rating | 250V |
| Fuse Speed | SB |
| Body Material | Thermoplastic |
| Body Diameter | 8.35mm |
| Body Height | 7.7mm |
| Wire Length | 22mm |
| Wire Pitch | 5.08mm |
| Breaking Capacity at Maximum Voltage Rating | 35 A @ 250 V ac |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Wire Diameter | 0.62mm |
