KYOCERA AVX Non-Resettable Fuse 1 A, 32 V
- RS Stock No.:
- 707-6773
- Mfr. Part No.:
- F0402E1R00FSTR
- Brand:
- KYOCERA AVX
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 707-6773
- Mfr. Part No.:
- F0402E1R00FSTR
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Current Rating | 1 A | |
| Product Type | Non-Resettable Fuse | |
| Voltage | 32 V | |
| Fuse Speed | F | |
| Width | 0.55 mm | |
| Height | 0.4mm | |
| Minimum Operating Temperature | -55°C | |
| Fuse Characteristics | Fast Acting | |
| Maximum Operating Temperature | 125°C | |
| Package Type | Reel | |
| Breaking Capacity | 50A | |
| Standards/Approvals | RoHS, UL | |
| Depth | 1.15mm | |
| Series | Accu-Guard | |
| Package Size | 0402 | |
| Terminal Material | Nickel | |
| Resistance | 0.13Ω | |
| Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Current Rating 1 A | ||
Product Type Non-Resettable Fuse | ||
Voltage 32 V | ||
Fuse Speed F | ||
Width 0.55 mm | ||
Height 0.4mm | ||
Minimum Operating Temperature -55°C | ||
Fuse Characteristics Fast Acting | ||
Maximum Operating Temperature 125°C | ||
Package Type Reel | ||
Breaking Capacity 50A | ||
Standards/Approvals RoHS, UL | ||
Depth 1.15mm | ||
Series Accu-Guard | ||
Package Size 0402 | ||
Terminal Material Nickel | ||
Resistance 0.13Ω | ||

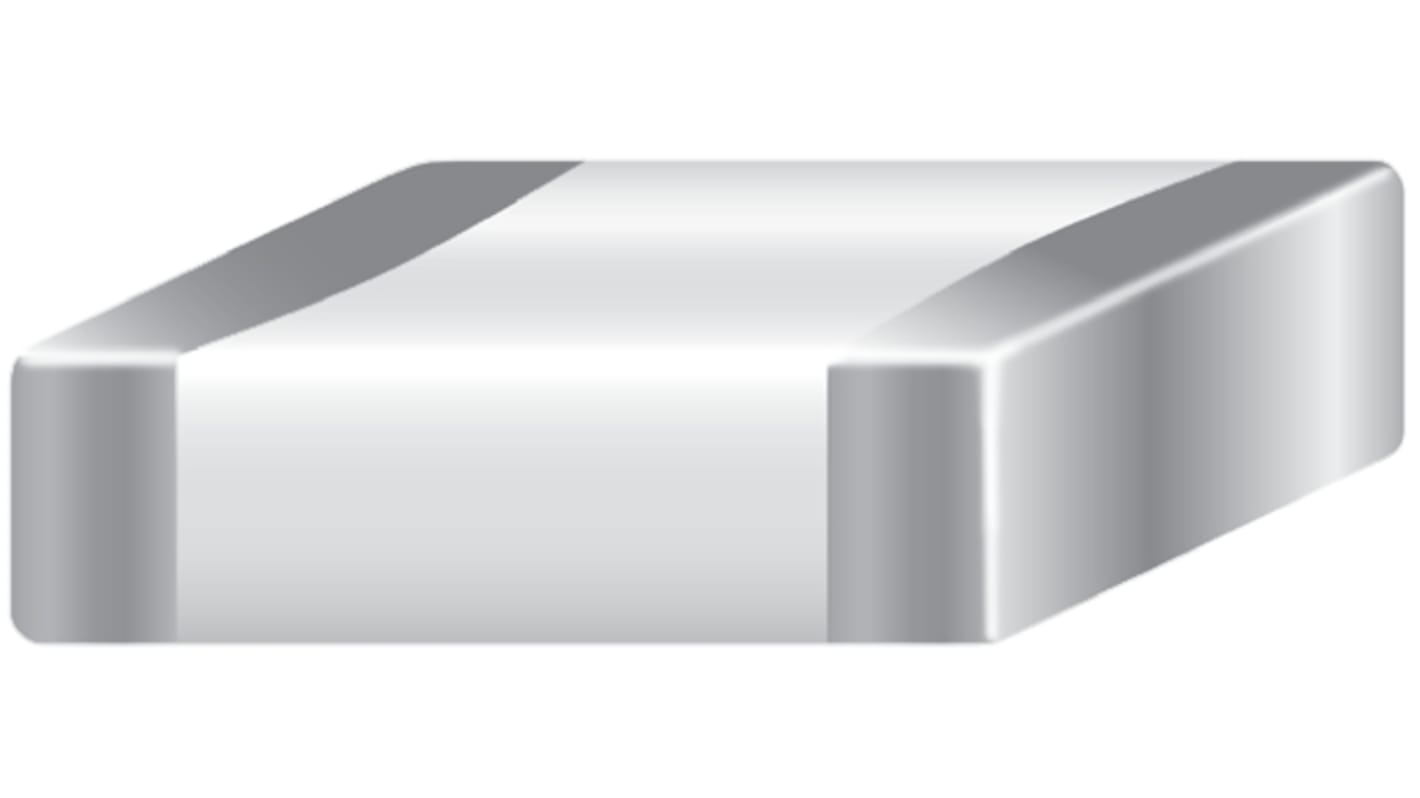

AVX Accu-Guard SMD Fuses 0402
Accurate current rating
Fast Acting
Compatible with all soldering systems used for SMT
Surface Mount Technology
Surface mount fuses offer considerable space (and time) saving features for low voltage applications. The FF types are ideal for protection of high value silicon IC's e.g. alarm systems, audio/visual equipment, computer boards, portable telephones, power supplies, medical apparatus etc.
