Schurter Non-Resettable Wire Ended Fuse 5A, 250V ac
- RS Stock No.:
- 703-2644
- Mfr. Part No.:
- 8020.0521.PT
- Brand:
- Schurter
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 703-2644
- Mfr. Part No.:
- 8020.0521.PT
- Brand:
- Schurter
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schurter | |
Current Rating | 5A | |
Voltage Rating | 250V ac | |
Fuse Speed | T | |
Body Material | Ceramic | |
Breaking Capacity at Maximum Voltage Rating | 40 A | |
Minimum Operating Temperature | -20°C | |
Series | SPT 3.6x10 | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand Schurter | ||
Current Rating 5A | ||
Voltage Rating 250V ac | ||
Fuse Speed T | ||
Body Material Ceramic | ||
Breaking Capacity at Maximum Voltage Rating 40 A | ||
Minimum Operating Temperature -20°C | ||
Series SPT 3.6x10 | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- CN
Schurter SPT Fuses
Standard miniature fuse
PCB or THT mounting
PCB or THT mounting
Standards
IEC 60127-3 / 4, UL 248-14, CSA C22.2 no. 248.14
Approvals
UL Recognised, VDE approved
Schurter Cartridge Fuse

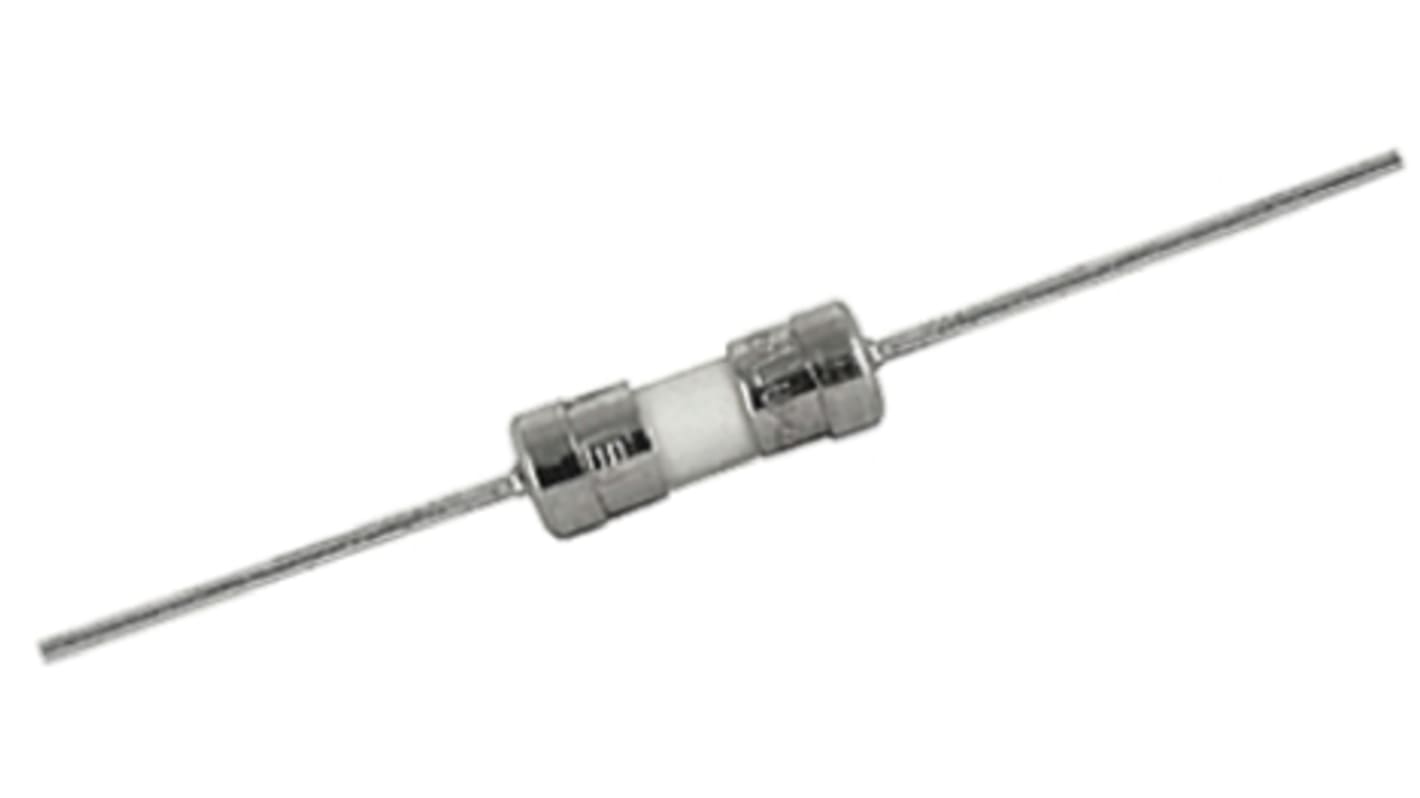

The Schurter SPT 3.6x10 standard miniature cartridge fuse has a ceramic cylindrical body with 250VAC 5A rating. It has nickel-plated brass alloy endcaps on both sides and tin-plated copper axial leads in it. The fuse has thermoplastic polyamide body.
Features and Benefits
• Breaking capacity 40A
• Melting I²t at 250A2s
• Operating temperature ranges between -20°C and 70°C
• PCB or THT mount type
• Time-lag T slow blow cartridge fuse
• Melting I²t at 250A2s
• Operating temperature ranges between -20°C and 70°C
• PCB or THT mount type
• Time-lag T slow blow cartridge fuse
Applications
• Industrial electronic
• Photovoltaic
• Single-phase high current up to 30 A
• Photovoltaic
• Single-phase high current up to 30 A
Certifications
• CE certified
• CQC
• CSA22.2 No. 248.14
• CULus listed
• IEC 60068-2-20
• IEC 60127-3
• IEC/UL 60950
• REACH compliant
• UL 248-14 listed
• VDE
• CQC
• CSA22.2 No. 248.14
• CULus listed
• IEC 60068-2-20
• IEC 60127-3
• IEC/UL 60950
• REACH compliant
• UL 248-14 listed
• VDE
All fuses have Thermoplaste Polyamide bodies
