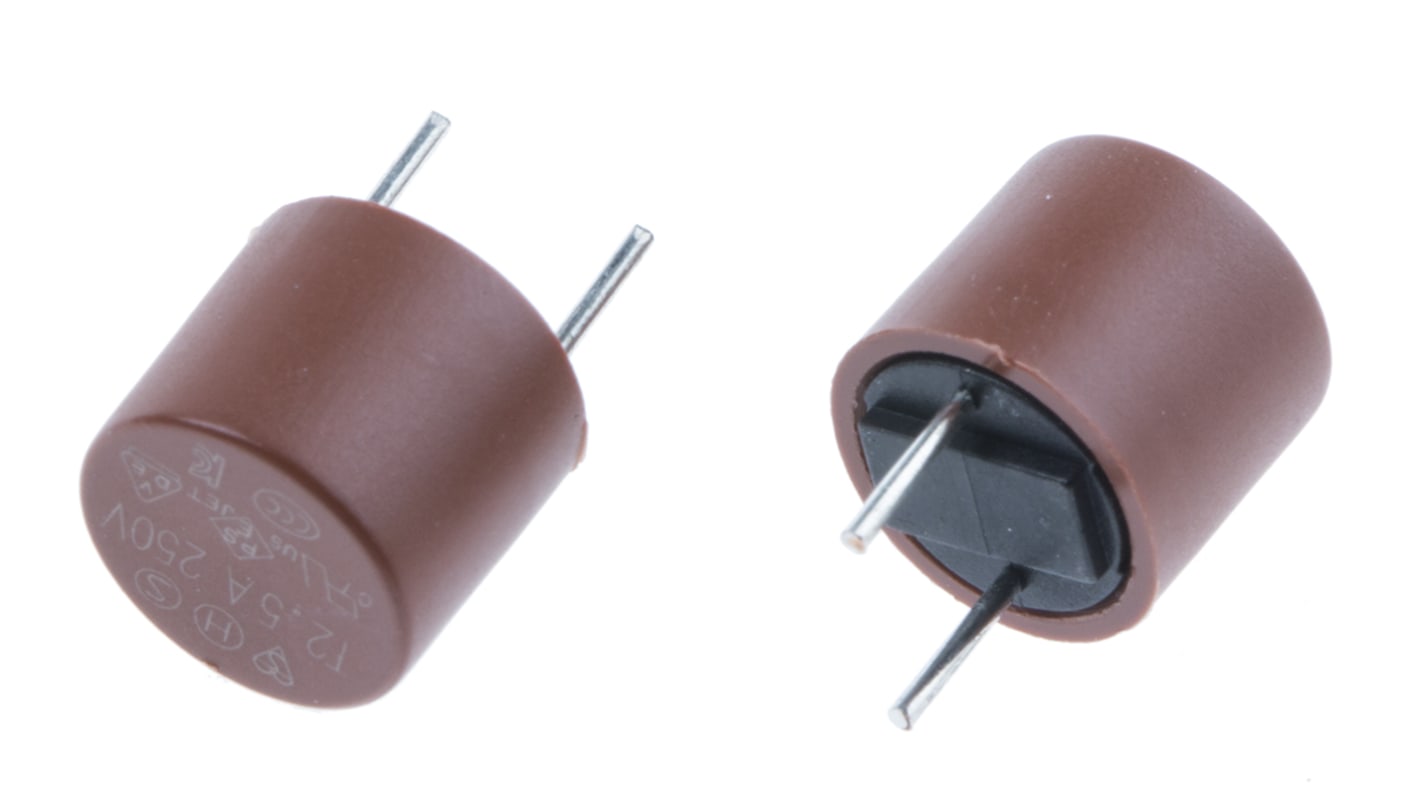

RS PRO Non-Resettable Fuse, Radial 2.5A, 250V ac
- RS Stock No.:
- 611-0614
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£11.12
(exc. VAT)
£13.34
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 130 unit(s) shipping from 19 October 2026
- Plus 1,000 unit(s) shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £1.112 | £11.12 |
| 100 - 490 | £1.001 | £10.01 |
| 500 - 1490 | £0.88 | £8.80 |
| 1500 - 2490 | £0.72 | £7.20 |
| 2500 + | £0.646 | £6.46 |
*price indicative
- RS Stock No.:
- 611-0614
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Non-Resettable Fuse | |
| Current Rating | 2.5A | |
| Lead Orientation | Radial | |
| Voltage | 250V ac | |
| Fuse Speed | T | |
| Body Material | Nylon | |
| Lead Length | 4.3mm | |
| Length | 7.2mm | |
| Height | 8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Breaking Capacity | 35A | |
| Diameter | 8.5mm | |
| Standards/Approvals | RoHS | |
| Series | RS PRO | |
| Lead Diameter | 600μm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Non-Resettable Fuse | ||
Current Rating 2.5A | ||
Lead Orientation Radial | ||
Voltage 250V ac | ||
Fuse Speed T | ||
Body Material Nylon | ||
Lead Length 4.3mm | ||
Length 7.2mm | ||
Height 8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Breaking Capacity 35A | ||
Diameter 8.5mm | ||
Standards/Approvals RoHS | ||
Series RS PRO | ||
Lead Diameter 600μm | ||
- COO (Country of Origin):
- CN
High Performance, Series TR5
For automatic insertion, can be directly soldered or plugged (use fuseholder stock no.110-7900)
All fuses have Thermoplaste Polyamide bodies
Approvals
UL; VDE; SEMKO
