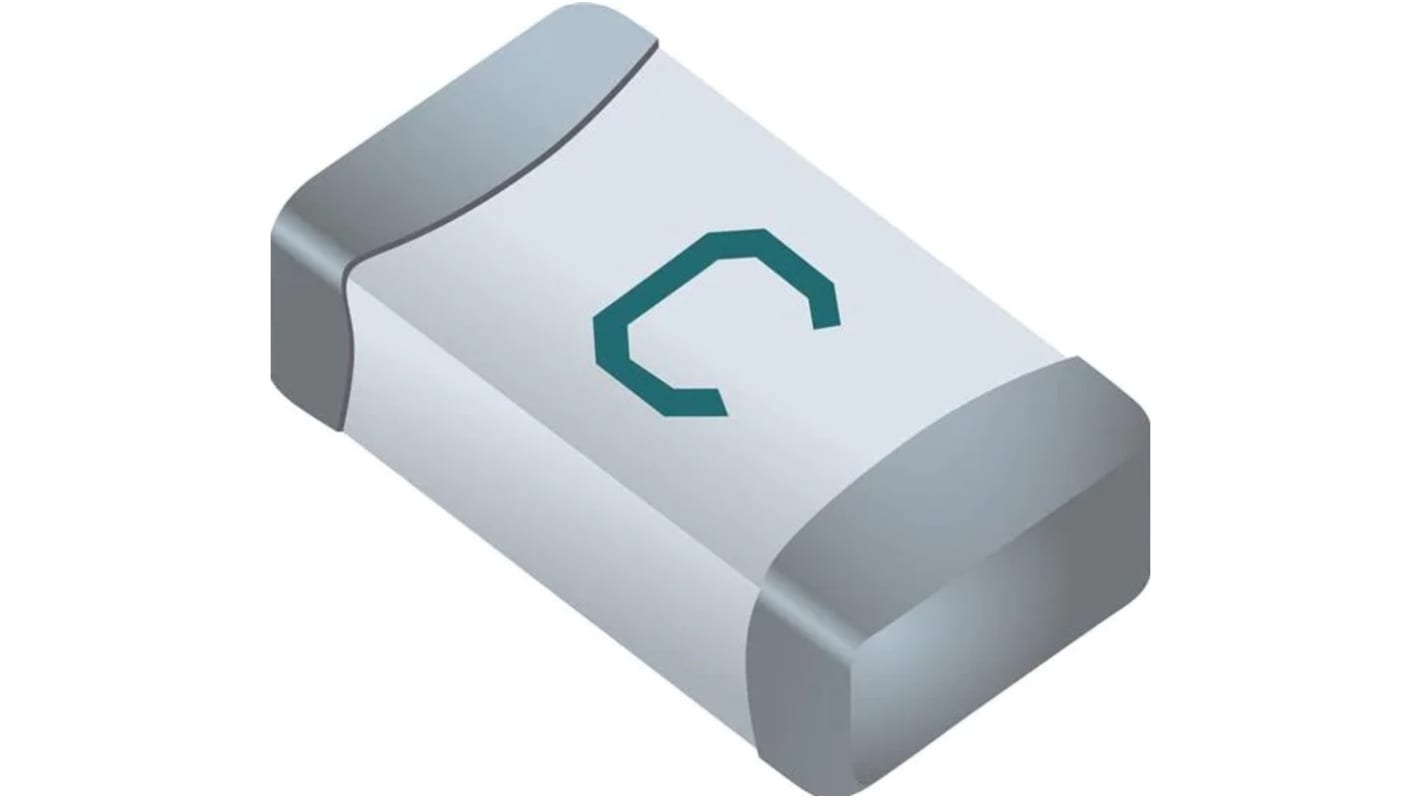

Bourns Surface Mount Fuse 4 A, 65 V dc
- RS Stock No.:
- 245-9262
- Mfr. Part No.:
- SF-1206SA400M-2
- Brand:
- Bourns
Subtotal (1 tape of 10 units)*
£6.70
(exc. VAT)
£8.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,460 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 + | £0.67 | £6.70 |
*price indicative
- RS Stock No.:
- 245-9262
- Mfr. Part No.:
- SF-1206SA400M-2
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Current Rating | 4 A | |
| Product Type | Surface Mount Fuse | |
| Voltage | 65 V dc | |
| Fuse Speed | T | |
| Body Material | Ceramic | |
| Width | 1.6 mm | |
| Height | 3.2mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Breaking Capacity | 50A | |
| Package Type | Tape & Reel | |
| Standards/Approvals | RoHS, AEC-Q200, UL | |
| Depth | 0.85mm | |
| Package Size | 1206 | |
| Series | SF-1206SA-M | |
| Resistance | 0.03Ω | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Current Rating 4 A | ||
Product Type Surface Mount Fuse | ||
Voltage 65 V dc | ||
Fuse Speed T | ||
Body Material Ceramic | ||
Width 1.6 mm | ||
Height 3.2mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Breaking Capacity 50A | ||
Package Type Tape & Reel | ||
Standards/Approvals RoHS, AEC-Q200, UL | ||
Depth 0.85mm | ||
Package Size 1206 | ||
Series SF-1206SA-M | ||
Resistance 0.03Ω | ||
The Bourns SF-1206SA-M series is automotive grade slow blow SMD fuse offer considerable space and time saving features for low voltage applications. It has severe test conditions and large sample sizes that ensure robustness in certain harsh environments.
Operating temperature range from -55°C to 150°C
Halogen free
UL 248-14 compliant
