Littelfuse Non-Resettable Surface Mount Fuse 40 A, 60 V
- RS Stock No.:
- 229-1417
- Mfr. Part No.:
- 0456040.DRSDE
- Brand:
- Littelfuse
Subtotal (1 reel of 1500 units)*
£3,799.50
(exc. VAT)
£4,560.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £2.533 | £3,799.50 |
*price indicative
- RS Stock No.:
- 229-1417
- Mfr. Part No.:
- 0456040.DRSDE
- Brand:
- Littelfuse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Current Rating | 40 A | |
| Product Type | Non-Resettable Surface Mount Fuse | |
| Voltage | 60 V | |
| Fuse Speed | FF | |
| Body Material | Ceramic | |
| Width | 4.445 mm | |
| Height | 4.5mm | |
| Minimum Operating Temperature | -55°C | |
| Fuse Characteristics | Fast Acting | |
| Maximum Operating Temperature | 60°C | |
| Package Type | Reel | |
| Breaking Capacity | 150A | |
| Depth | 12.2mm | |
| Standards/Approvals | RoHS | |
| Series | 456 | |
| Resistance | 1.3mΩ | |
| Terminal Material | Silver Plated Brass | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Current Rating 40 A | ||
Product Type Non-Resettable Surface Mount Fuse | ||
Voltage 60 V | ||
Fuse Speed FF | ||
Body Material Ceramic | ||
Width 4.445 mm | ||
Height 4.5mm | ||
Minimum Operating Temperature -55°C | ||
Fuse Characteristics Fast Acting | ||
Maximum Operating Temperature 60°C | ||
Package Type Reel | ||
Breaking Capacity 150A | ||
Depth 12.2mm | ||
Standards/Approvals RoHS | ||
Series 456 | ||
Resistance 1.3mΩ | ||
Terminal Material Silver Plated Brass | ||

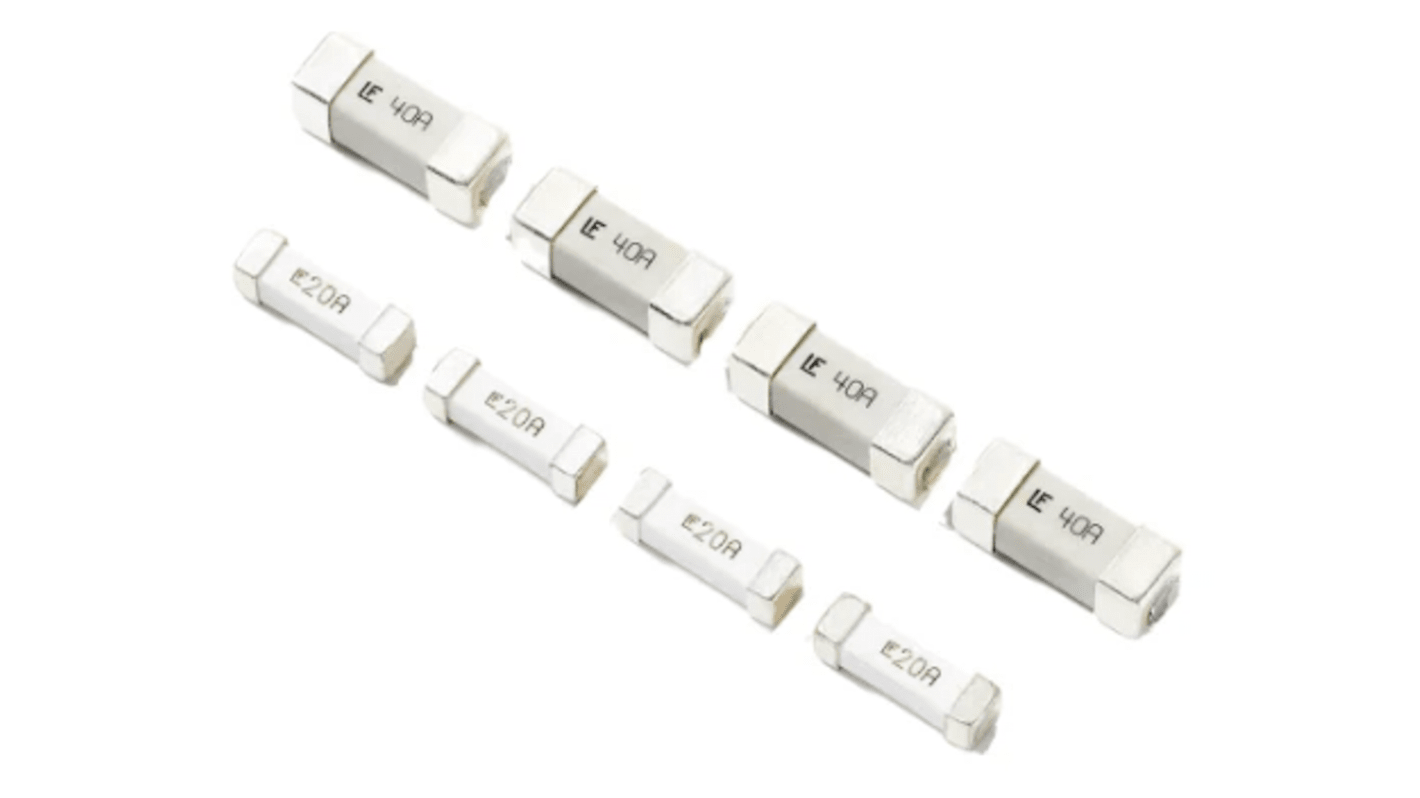

The Littelfuse 0456040.DRSDE is a small square surface mount fuse that is designed to support higher current requirements of various applications. It can be used in various applications such as Voltage regulator module, Storage system power and Base station power supply.
Surface mount high current fuse
Fully compatible with lead-free solder alloys
RoHS compliant and Halogen Free
Available in ratings of 20 to 40 Amperes
