RS PRO Non Contact Voltage Indicator, 230V ac to 1000V ac With RS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DK
Product Details

RS Pro Volt Stick Non-Contact Voltage Detector

The Non-Contact VoltStick® is a tester for safely checking the presence of an AC voltage without making any disconnections in cables, wall sockets, fuses, circuit breakers, junction boxes etc. No current flow is needed for correct detection. Apply the plastic tip to any connection point or move it along an insulated cable. When an AC voltage is detected a red indicator in the plastic tip illuminates, as it detects the live wire through the insulation. Note that if a 3 phase machine is connected up and one of the fuses blows, the voltage is conducted back to the defective fuse the other way and a faulty indication may be given. Make sure that all machines are disconnected before testing. The VoltStick® cannot be used on socket with shielded cable.

Features and Benefits:

• Voltage Range: 230 V ac - 1000 V ac
• Sensitivity: Illuminates red at 4 mm distance from wire carrying 230 V ac

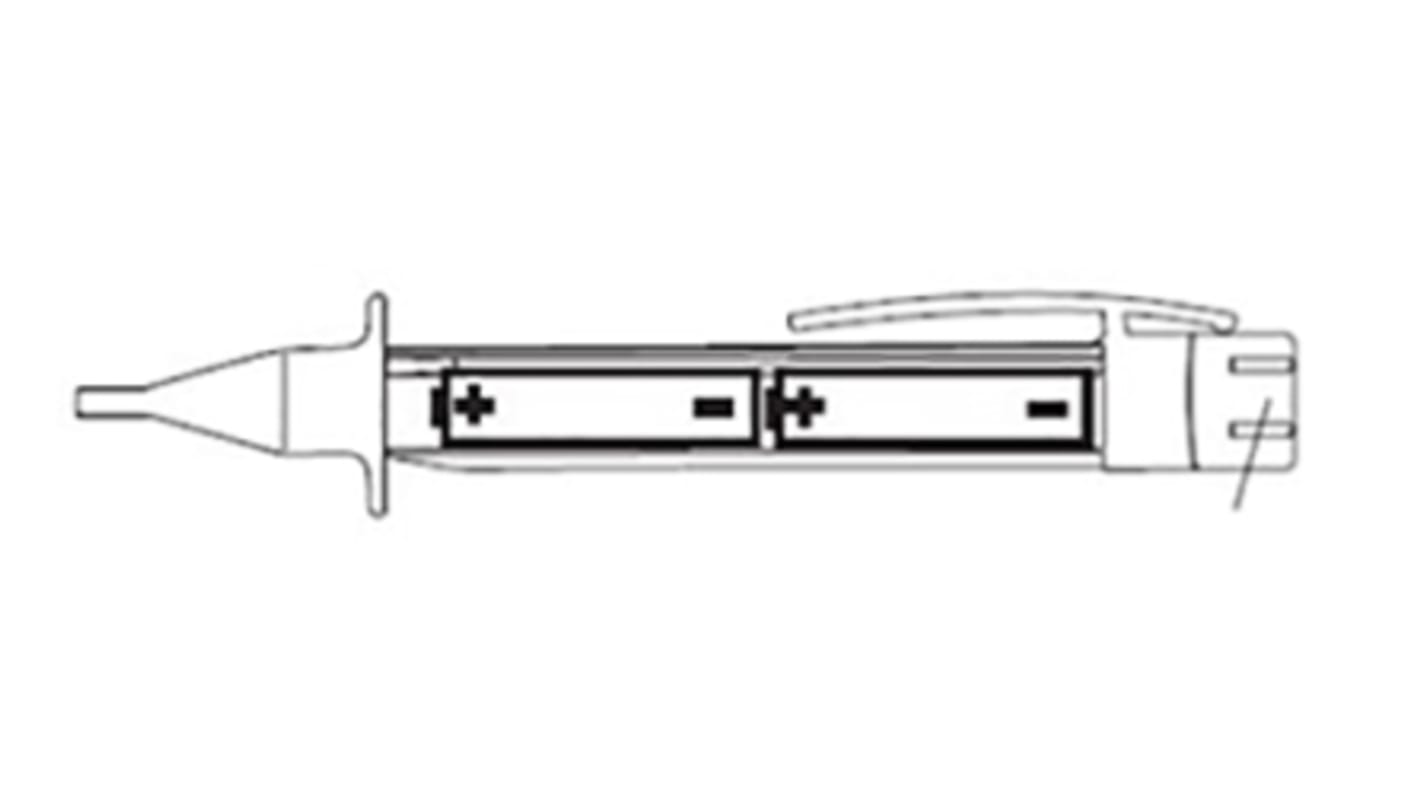

• Power: 2 x AAA batteries (Included)
• Altitude: < 2000 m
• RH: 80% @ 30°C, 50% @ 40°C
• Operating Temperature: -20°C to +40°C
• Over Voltage: CAT III 1000 V
• Weight: 50 gm
• Length: 151 mm
• Diameter: 18 mm
• IEC61010-1 CAT III 1000 V ac

Note

Only use with GP Alkaline GN24A, LR03, Size AAA

What is a non contact voltage tester used for?

• Locating breaks in cables
• Detecting blown fuses inside plugs of fuse holders
• Distinguishing between live and neutral wires in both single and 3 phase supply
• Identifying faulty inline switches
• Checking function of circuit breakers
• Locating defective in-series light bulbs

Note

Only use with GP Alkaline GN24A, LR03, Size AAA

Specifications
Attribute Value
Indicator Type Voltage
Battery Type AAA, GP Alkaline GN24A LR03 Size AAA
Calibrated RSCAL
ATEX Approval Yes
Power Source Battery
Safety Category CAT III 1000 V ac
Dimensions 18 (Dia.) x 151mm
Weight 50g
Diameter 18mm
Length 151mm
Maximum Detection Voltage 1000V ac
Maximum Operating Temperature +40°C
Safety Category Voltage 1000V ac
Safety Category Level CAT III
Minimum Operating Temperature -20°C
Minimum Detection Voltage 230V ac
357 In stock for delivery within 2 working days
Price Each
£ 83.00
(exc. VAT)
£ 99.60
(inc. VAT)
Units
Per unit
1 +
£83.00
Not available for guaranteed pre 9am/10am delivery
