    Pilz Transponder Non-Contact Safety Switch, 24V dc, Plastic Housing, M12

    Pilz
    RS Stock No.:
    918-6667
    Mfr. Part No.:
    542011
    Brand:
    Pilz
    View this category
    Available to back order for despatch when stock is available
    Add to Basket
    Units

    This product is currently unavailable to backorder.

    Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.

    Added

    Price Each

    £119.33

    (exc. VAT)

    £143.20

    (inc. VAT)

    UnitsPer unit
    1 +£119.33

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    presentation
    RS Stock No.
    918-6651

    Price Each

    £130.44

    (exc. VAT)

    £156.53

    (inc. VAT)

    presentation
    RS Stock No.
    918-6655

    Price Each

    £102.71

    (exc. VAT)

    £123.25

    (inc. VAT)

    presentation
    RS Stock No.
    918-6658

    Price Each

    £51.43

    (exc. VAT)

    £61.72

    (inc. VAT)

    presentation
    RS Stock No.
    918-6661

    Price Each

    £87.76

    (exc. VAT)

    £105.31

    (inc. VAT)

    presentation
    RS Stock No.
    918-6664

    Price Each

    £102.71

    (exc. VAT)

    £123.25

    (inc. VAT)

    presentation
    RS Stock No.
    918-6670

    Price Each

    £122.44

    (exc. VAT)

    £146.93

    (inc. VAT)

    presentation
    RS Stock No.
    918-6689

    Price Each

    £198.37

    (exc. VAT)

    £238.04

    (inc. VAT)

    RS Stock No.:
    918-6667
    Mfr. Part No.:
    542011
    Brand:
    Pilz

    Legislation and Compliance

    COO (Country of Origin):
    CH

    Product Details

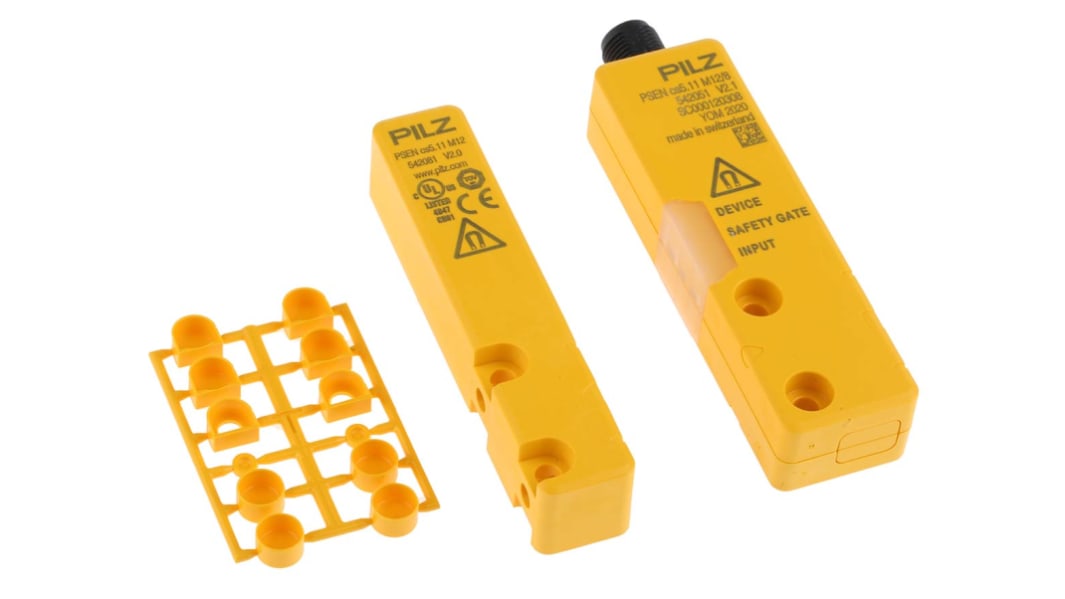

    PSENcode Slim Non-Contact Safety Switch, Coded


    The PSEN cs5.11 and PSEN cs5.1p safety switches are coded and only switch when used with an actuator from the PSEN cs1.1 series. There is no restriction on the number of times the actuator can be used and reset.

    Features and Benefits


    Transponder technology for presence detection
    Coded switch
    Dual-channel operation
    2 safety inputs for series connection of multiple safety switches
    2 safety outputs
    Safety Device Diagnostics (SDD)
    Safety Device Diagnostics can be used to poll sensor information, to perform actions and to read configuration parameters
    Diagnostic input for Y1 for Safety Device Diagnostics (SDD)
    Signal output/diagnostic output Y32 for Safety Device Diagnostics
    LED display for state of actuator detection, state of the inputs and supply voltage/fault
    IP66 / IP67 protection

    PSEN cs5.11 (stock no. 918-6667)


    1 actuation direction with 3 approach directions: square marking for normal operating distance
    M12 8 pole male connector
    30 N holding force

    PSEN cs5.1p (stock no. 918-6661)


    4 actuation directions, each with 3 approach directions: square marking for normal operating distance and triangle marking for short operating distance
    M8 8 pole male connector

    Caution

    The safety level PLe (Cat. 4)/SIL CL 3 is only achieved if the safety outputs use 2-channel processing.

    Standards

    EN 60947-5-3; EN 62061 SIL CL 3; EN ISO 13849-1 PLe Cat. 4; EN ISO 14119 Coding level Low, Type4.

    Approvals

    CE, TÜV, UL/cUL, FCC, IC, ECOLAB.

    Supplied with

    Actuator.

    Specifications

    AttributeValue
    Supply Voltage24V dc
    Housing MaterialPlastic
    Connection TypeM12
    Actuator TypeCoded
    Sensor PrincipleTransponder
    Actuator IncludedYes
    RangePSENcode
    IP RatingIP66, IP67
    Width26.4mm
    Safety Category4
    Length101.6mm
    Depth19mm
