RSS 16 RFID Safety Switch, Glass Fibre Reinforced Thermoplastic, Plastic, 20.4 → 26.4 V dc

  • RS Stock No. 880-1873
  • Mfr. Part No. RSS16-D-SK
  • Brand Schmersal
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

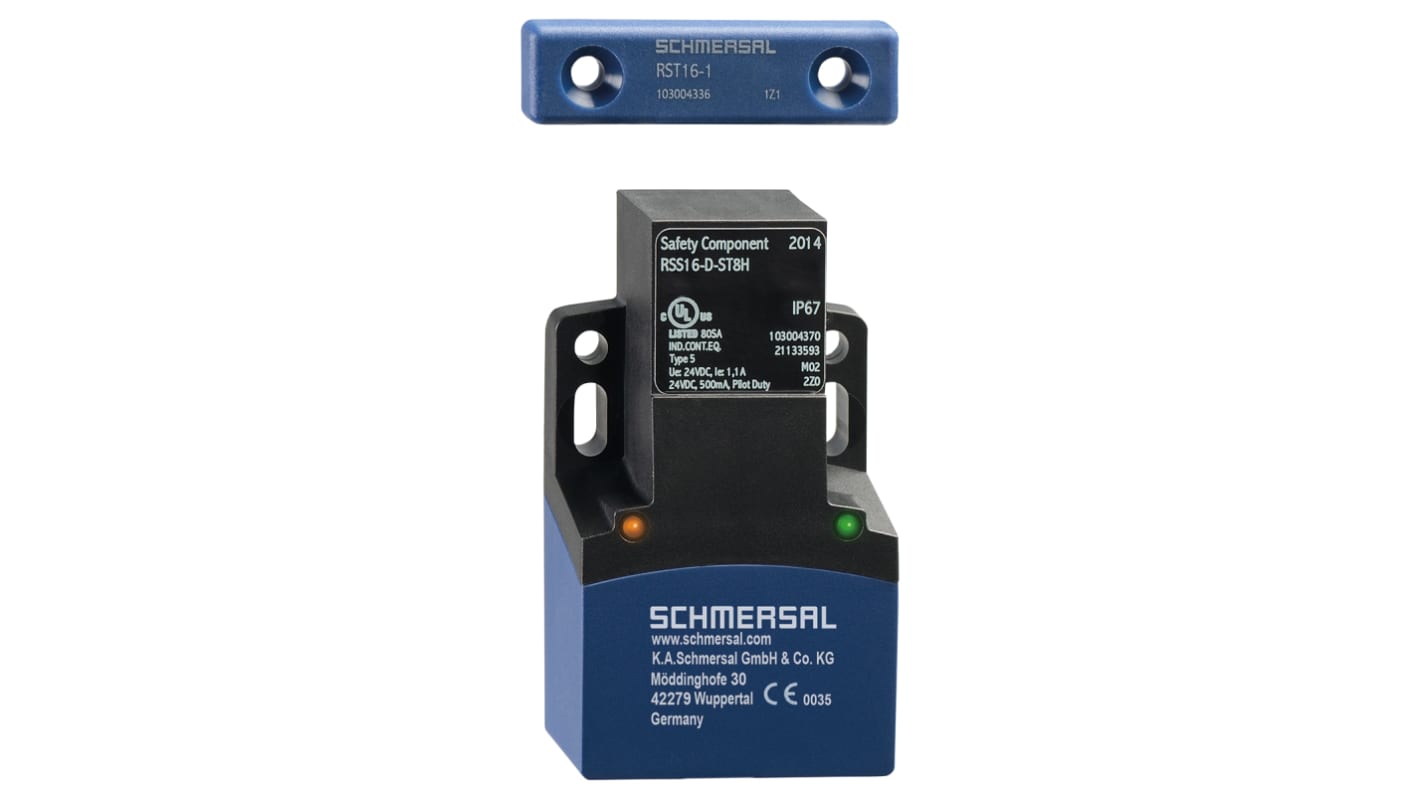

Schmersal RSS16 Non Contact Safety Switch

The RFID safety sensor RSS16 is based on the design of the AZ16. The versatile construction is now available as a non-contact system with wear-free RFID technology for the most demanding requirements of safety level and protection against manipulation. It has universal three-sided actuation which allows the RSS16 to be mounted in different situations. The non-contact operating principle allows a high tolerance for misaligned doors and in addition to the purely mechanical solution enables an actuation direction to the side of the sensor surface.
The robust construction of the RSS16, in the version with the magnetic latching that has an integrated damping element, allows it to be used as a door hinge with latching forces up to 60 N.
Installation benefits also offer the connectivity options built-in plug or terminal connection area with four connection openings, combined here for the first time with the Schmersal RFID technology. This allows the cable routing to be accurately assembled in a series circuit and adapted to the individual machine geometry.

Thermoplastic enclosure
3 different directions of actuation
Door stop with magnetic latching
Connection terminal or plug connection
Suitable for series-wiring
Series-wiring
Included in standard version Coding
With latching, stock nos. 880-1876 & 880-1889, approx. 40 - 60 N
IP65, IP67 to IEC/EN 60529
Encoding level "high" according to ISO 14119 with an individual RFID code
Suitable for applications up to PL e / category 4 to EN ISO 13849-1 and SIL 3 to IEC 61508

Note

Actuator must be ordered separately.

Standards

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.

Approvals

TUV, cULus.

Specifications
Attribute Value
Supply Voltage 20.4 → 26.4 V dc
Housing Material Glass Fibre Reinforced Thermoplastic, Plastic
Connection Type Plug
Switch Type Rectangular
Terminal Type M16 gland
Series RSS 16
Switching Distance 12 (On) mm, 15 mm, 30 (Off) mm
IP Rating IP65, IP67
Supply Current 2.1 A
Actuator Included No
Sensor Principle RFID
Safety Category Bis 4, Category 3
Dimensions 91 x 52 x 30 mm
Standards Met CE Listed, CULus Listed, EN 62061, EN ISO 13849-1, IEC 60947-5-3, IEC 61508, TUV
Depth 30mm
Length 91mm
Width 52mm
Actuator Type Coded
Number of Approach Directions 3
Housing Colour Black, Blue
Available to back order for despatch 02/11/2020
Price Each
£ 118.58
(exc. VAT)
£ 142.30
(inc. VAT)
Units
Per unit
1 +
£118.58
