Schmersal EX-BNS40S Series Non-Flush Magnetic Non-Contact Safety Switch, 24V ac/dc, Stainless Steel Housing, NO/NC, 1m
- RS Stock No.:
- 880-1823
- Mfr. Part No.:
- EX-BNS40S-12Z-C
- Brand:
- Schmersal
Subtotal (1 unit)*
£237.15
(exc. VAT)
£284.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 4 unit(s) shipping from 01 December 2025
- Plus 2 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £237.15 |
*price indicative
- RS Stock No.:
- 880-1823
- Mfr. Part No.:
- EX-BNS40S-12Z-C
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Supply Voltage | 24V ac/dc | |
| Safety Contacts | NO/NC | |
| Housing Material | Stainless Steel | |
| Connection Type | 1m Cable | |
| Installation Type | Non-Flush | |
| Actuator Type | Coded | |
| Sensor Principle | Magnetic | |
| Actuator Included | No | |
| Switching Distance | 18 (Off) mm, 8 (On) mm | |
| Series | EX-BNS40S | |
| IP Rating | IP65, IP67 | |
| Supply Current | Maximum of 250mA | |
| Hazardous Area Certification | ATEX | |
| Standards Met | BG-GS-ET-14, CE Listed, EN 60079-0, EN 60079-15, EN 60079-31, EN ISO 13849-1, IEC 60947-5-3 | |
| Width | 14.5mm | |
| Length | 88mm | |
| Depth | 27mm | |
| Number of Approach Directions | 1 | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Supply Voltage 24V ac/dc | ||
Safety Contacts NO/NC | ||
Housing Material Stainless Steel | ||
Connection Type 1m Cable | ||
Installation Type Non-Flush | ||
Actuator Type Coded | ||
Sensor Principle Magnetic | ||
Actuator Included No | ||
Switching Distance 18 (Off) mm, 8 (On) mm | ||
Series EX-BNS40S | ||
IP Rating IP65, IP67 | ||
Supply Current Maximum of 250mA | ||
Hazardous Area Certification ATEX | ||
Standards Met BG-GS-ET-14, CE Listed, EN 60079-0, EN 60079-15, EN 60079-31, EN ISO 13849-1, IEC 60947-5-3 | ||
Width 14.5mm | ||
Length 88mm | ||
Depth 27mm | ||
Number of Approach Directions 1 | ||
- COO (Country of Origin):
- DE

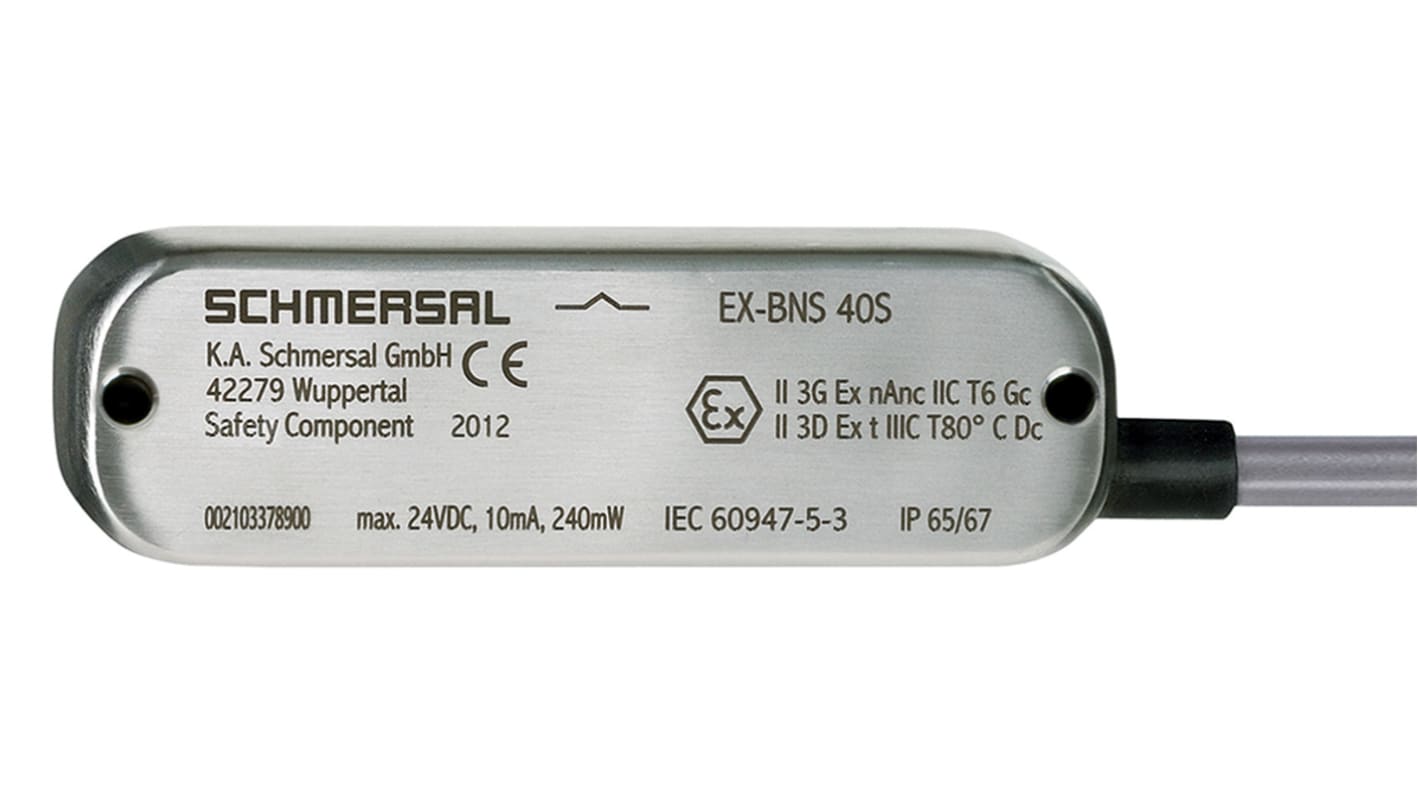

Schmersal Non-Contact Safety Switch, 1m Cable, Stainless Steel - EXBNS40S Series -EX-BNS40S-12Z-C
This safety switch from Schmersal is designed to automatically shut down a machine if its guard door is left open. As the device's magnetic actuator is coded, it's tamperproof for enhanced security. The non-contact design means there's no mechanical wear, making it a long-lasting and low-maintenance choice. A broad operating temperature range of -20°C to +60°C means you can use this switch in demanding settings. The tough stainless steel housing is resistant to impact and corrosion for added durability.
Features & Benefits
• ATEX certified for use in areas with potentially explosive atmospheres
• Mission time of 20 years for long-term use
• Combined IP65 (ingress protection) and IP67 ratings mean it's dustproof and resistant to low-pressure water jets as well as submersion in 1m of water for up to 30 minutes
• Mission time of 20 years for long-term use
• Combined IP65 (ingress protection) and IP67 ratings mean it's dustproof and resistant to low-pressure water jets as well as submersion in 1m of water for up to 30 minutes
Applications
• Marine industry
• Laboratories
• Oil and gas industry
• Food and beverage packaging
• Laboratories
• Oil and gas industry
• Food and beverage packaging
Is this safety switch easy to clean?
Yes, thanks to the threaded holes on the rear of the unit, the switch is easy to clean. This makes this switch a good choice for use in environments where high standards of hygiene are necessary.
