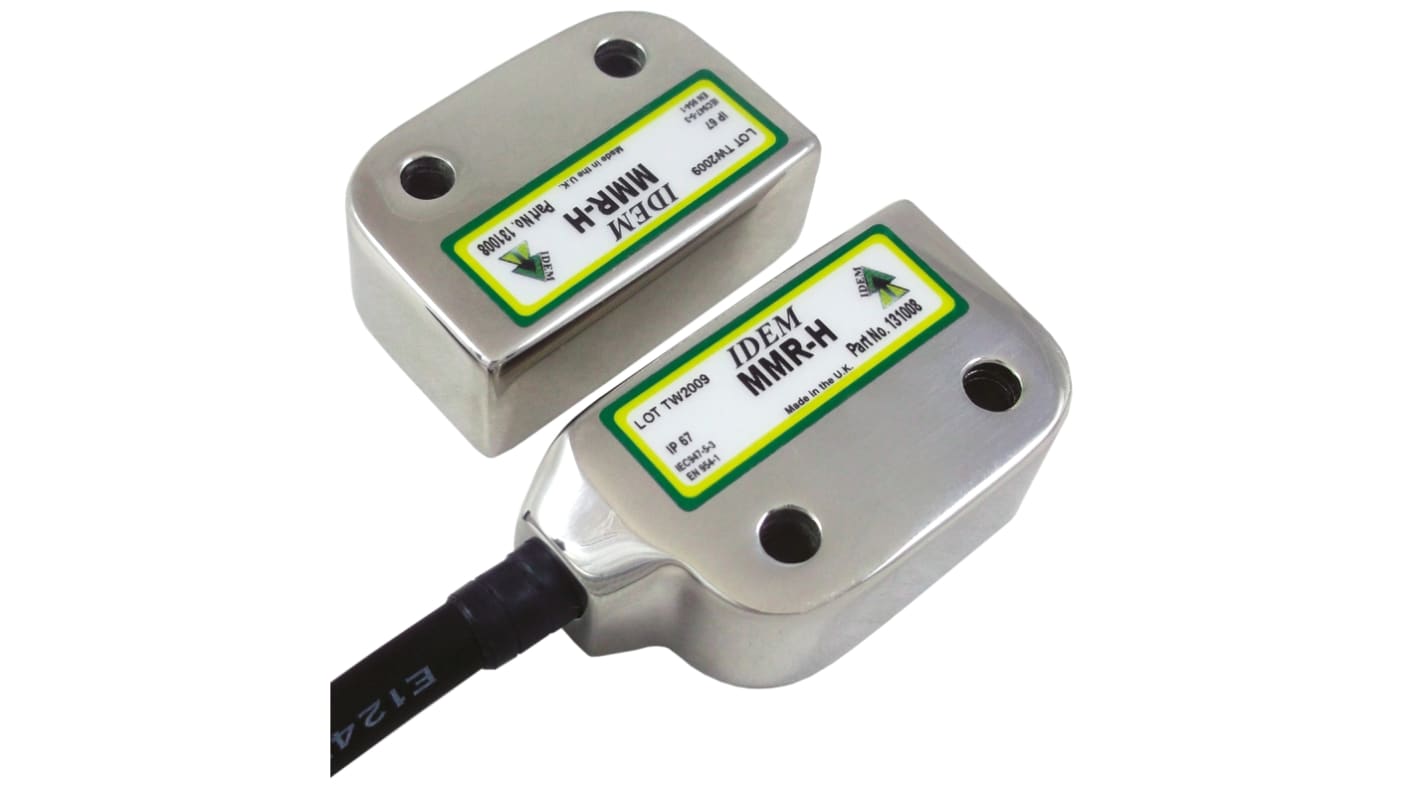

IDEM MMR-H Series Magnetic Non-Contact Safety Switch, 24V dc, 316 Stainless Steel Housing, 2NC, M12

View this category

Subtotal (1 unit)*

£118.33

(exc. VAT)

£142.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 18 unit(s) ready to ship
  • Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£118.33

*price indicative

RS Stock No.:
826-4259
Mfr. Part No.:
131008
Brand:
IDEM
Find similar products by selecting one or more attributes.
Select all

Brand

IDEM

Supply Voltage

24V dc

Safety Contacts

2NC

Housing Material

316 Stainless Steel

Connection Type

M12

Actuator Type

Magnetic

Auxiliary Contacts

NO

Sensor Principle

Magnetic

Safety Category

4

Actuator Included

Yes

Range

HYGIEMAG

Switching Distance

10 (Close) mm, 20 (Open) mm

Series

MMR-H

IP Rating

IP69K

Supply Current

Safety Channels 500 mA, Auxiliary Channel 200mA

Standards Met

CE, cULus Listed, TUV Certified

Number of Approach Directions

2

Depth

15mm

Length

45mm

Width

26mm

COO (Country of Origin):
GB

IDEM HYGIEMAG MMR-H Non Contact Safety Switch


The HYGIEMAG MMR-H safety switch has been developed for non-contact guard door interlocking of hinged, sliding or removable guard doors. It is ideal for applications that require a wide tolerance to misalignment, a high switching capacity or high levels of hygiene. When used with dual channel safety relays, the MMR-H safety switch can be used to provide up to PLe/Category 4 to ISO13849-1 protection.

Features and Benefits


Magnetic high-power switching
Dual channel safety outputs
Stainless steel 316 housing
High temperature stability up to 105°C
Can be mounted on steel structures
High tolerance to guard misalignment
IP69K protection
Resistant to high temperature hosing and detergent wash down
Conformance to EN60947-5-3 PDF-S
Up to PLe ISO 13849-1
Compact & robust fitting for small guard applications
Suitable for food contact or slash zones - EHEDG guidelines
Mirror Polished Finish to Ra4
Suitable for CIP and SIP cleaning
2NC / 1 NO
10 mm wide sensing
Left or right cable exit options
Switching capacity 0.5A
22 mm fixing centres
Housing: 26 x 45 x 15 mm

Applications


The HYGIEMAG MMR-H non-contact safety switch is ideal for the food processing, pharmaceutical, packaging and chemical industries.

Note

The normally closed (NC) circuits are closed when the guard is closed and the actuator is present.

Standards

EN1088 (ISO 14119), EN 60947-5-1, EN 60204-1, ISO 13849-1, EN 62061, UL 508.

Approvals

CE, cULus, TUV.

Supplied with

Actuator.
