Pilz Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, 2NO, M8
- RS Stock No.:
- 824-4927
- Distrelec Article No.:
- 300-77-854
- Mfr. Part No.:
- 506411
- Brand:
- Pilz
Subtotal (1 unit)*
£64.84
(exc. VAT)
£77.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 79 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
- Plus 999,999,920 unit(s) shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.84 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£62.32
(exc. VAT)
£74.78
(inc. VAT)
- RS Stock No.:
- 824-4927
- Distrelec Article No.:
- 300-77-854
- Mfr. Part No.:
- 506411
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Supply Voltage | 24V dc | |
| Safety Contacts | 2NO | |
| Housing Material | Plastic | |
| Connection Type | M8 | |
| Actuator Type | Magnetic | |
| Sensor Principle | Magnetic | |
| Safety Category | 4 | |
| Actuator Included | Yes | |
| Switching Distance | 3 mm | |
| Range | PSENmag | |
| IP Rating | IP67 | |
| Width | 26mm | |
| Length | 45mm | |
| Depth | 13mm | |
Select all | ||
|---|---|---|
Brand Pilz | ||
Supply Voltage 24V dc | ||
Safety Contacts 2NO | ||
Housing Material Plastic | ||
Connection Type M8 | ||
Actuator Type Magnetic | ||
Sensor Principle Magnetic | ||
Safety Category 4 | ||
Actuator Included Yes | ||
Switching Distance 3 mm | ||
Range PSENmag | ||
IP Rating IP67 | ||
Width 26mm | ||
Length 45mm | ||
Depth 13mm | ||
- COO (Country of Origin):
- CH

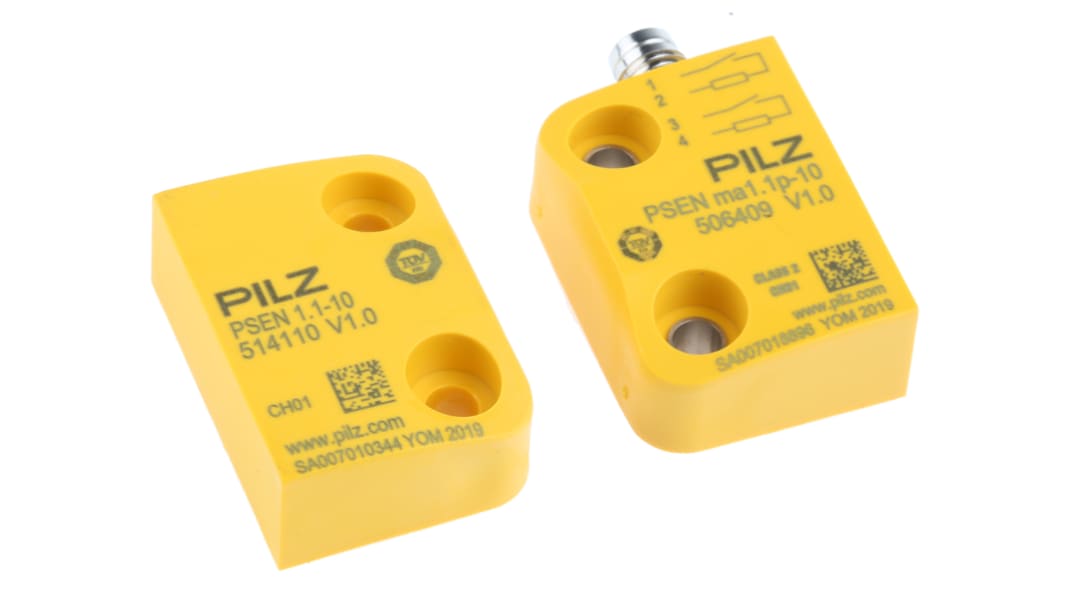

Pilz Non-contact Switch
The Pilz PSENmag series non-contact safety switch has an assured switching distance of 3mm. It has 2NO safety contact. It meets the highest safety requirements and offers a complete solution that is safe and economical.
Supplied with actuator
Note:
Only stock nos. 744-8702 and 824-4918 have an LED.
Supplied with actuator
Note:
Only stock nos. 744-8702 and 824-4918 have an LED.
Features and Benefits
Input The supply voltage is 24VDC
Connected via a plug connection or with cable
Flexible cable outlet, including connector, so there is no need for an angled connector
Flexible mounting, both the sensor and actuator support every conceivable mounting configuration
Cost effective because of the series connection
Extra signal contact
Connection type is M8, 4-pin male
Housing material is PBT
Operating temperature ranges between -25°C and 70°C
Connected via a plug connection or with cable
Flexible cable outlet, including connector, so there is no need for an angled connector
Flexible mounting, both the sensor and actuator support every conceivable mounting configuration
Cost effective because of the series connection
Extra signal contact
Connection type is M8, 4-pin male
Housing material is PBT
Operating temperature ranges between -25°C and 70°C
Applications
Heavy soiling
Certifications
IP65 rated
IP67 rated
EN954-1 (Cat 4)
EN60204-1
EN60947-5-3
ATEX approved
Electrosuisse certified
CE certified
UL approved
TÜV certified
BG certified
CCC certified
IP67 rated
EN954-1 (Cat 4)
EN60204-1
EN60947-5-3
ATEX approved
Electrosuisse certified
CE certified
UL approved
TÜV certified
BG certified
CCC certified
