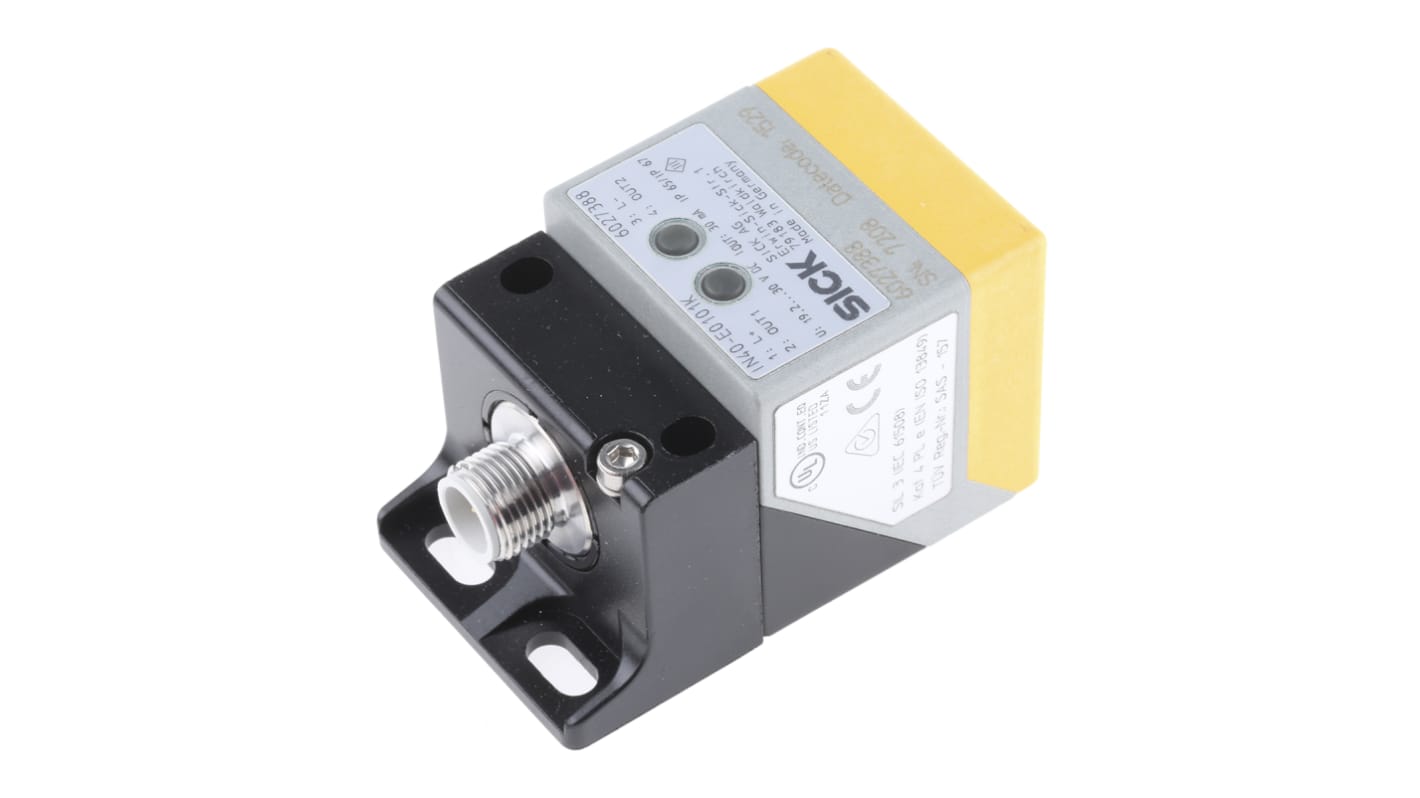

The Sick IN3000 direct series switch is a non-contact safety device. It has a safe switch ON distance of 10mm to 15mm and switches OFF distance of 30mm. It is used for position monitoring and works on a non-contact basis. This unique inductive sensor is activated by metal and therefore, does not need a separate actuator. This safety switch can be connected directly to a suitable electronic evaluation system such as a safe control solution. The small design of the switch makes optimum integration in the machine design. It is a cost-effective solution for position monitoring and combines the benefits of a small housing with easy and direct evaluation. The wide response range of this safety switch makes it simple to mount and adjust.

One pulsed output (IN4000 Standard) or two OSSD outputs (IN4000 Direct) for direct connection of sensors to a single safety controller
Fast diagnostics via an LED status indicator
Cascade up to nine sensors to one controller for reduced costs (IN4000 Standard)
Flexi loop now enables a safe series connection with enhanced diagnostic capabilities and minimal wiring effort
Long service life due to durable and low-maintenance design
Safe series connection of sensors possible (IN4000 Standard)
Flexi loop-compatible M12 plug connector

IP67 rated
CE certified
UL listed
EAC certified
