Allen Bradley Guardmaster FRS Series Non-Contact Safety Switch

The Ferrogard FRS 13 and 14 are magnetically actuated non-contact safety switches which offer reliability and a high tolerance to misalignment. Designed to be installed on a guard door, the action of the magnetic actuator being removed from the switch opens the N.C. safety contacts therefore isolating the control power to the machines primary control element. Made from stainless steel with a slim rectangular housing to accommodate narrow mounting areas and sealed to IP68 (NEMA 6P), these non-contact switches are ideal for wet environments. They have two active sensing faces allowing more flexible mounting options.

Slim stainless steel housings
AC and DC operation
Auxiliary contact rating: 300Vdc/250Vac, 0.5A including in rush, 15VA/10W
When going dual channel, does not require 2 power reeds
Operating temperature range: -10 to +65°C

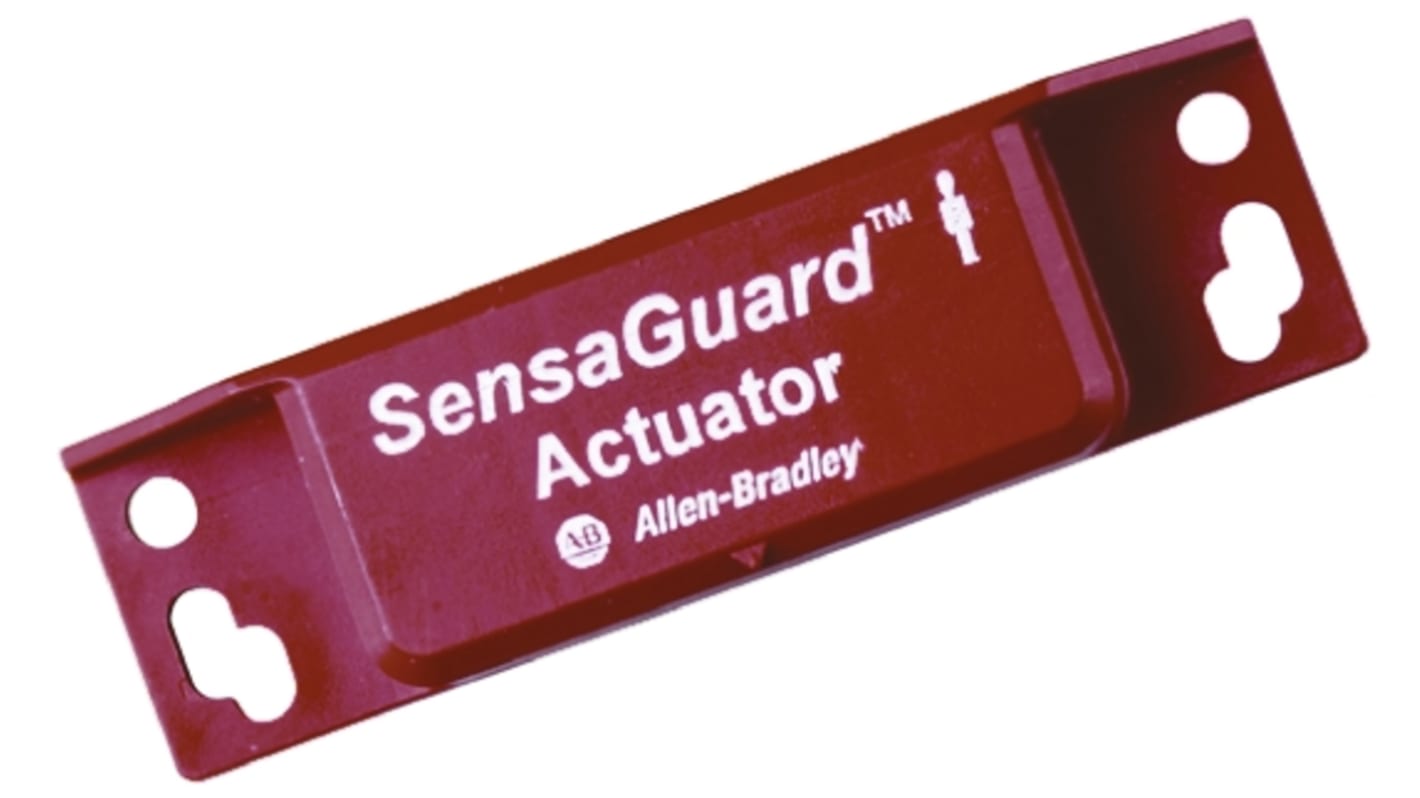

Actuator included
IP68 rating (NEMA 6P)

EN60947-5-1, EN1088, EN60204-1
