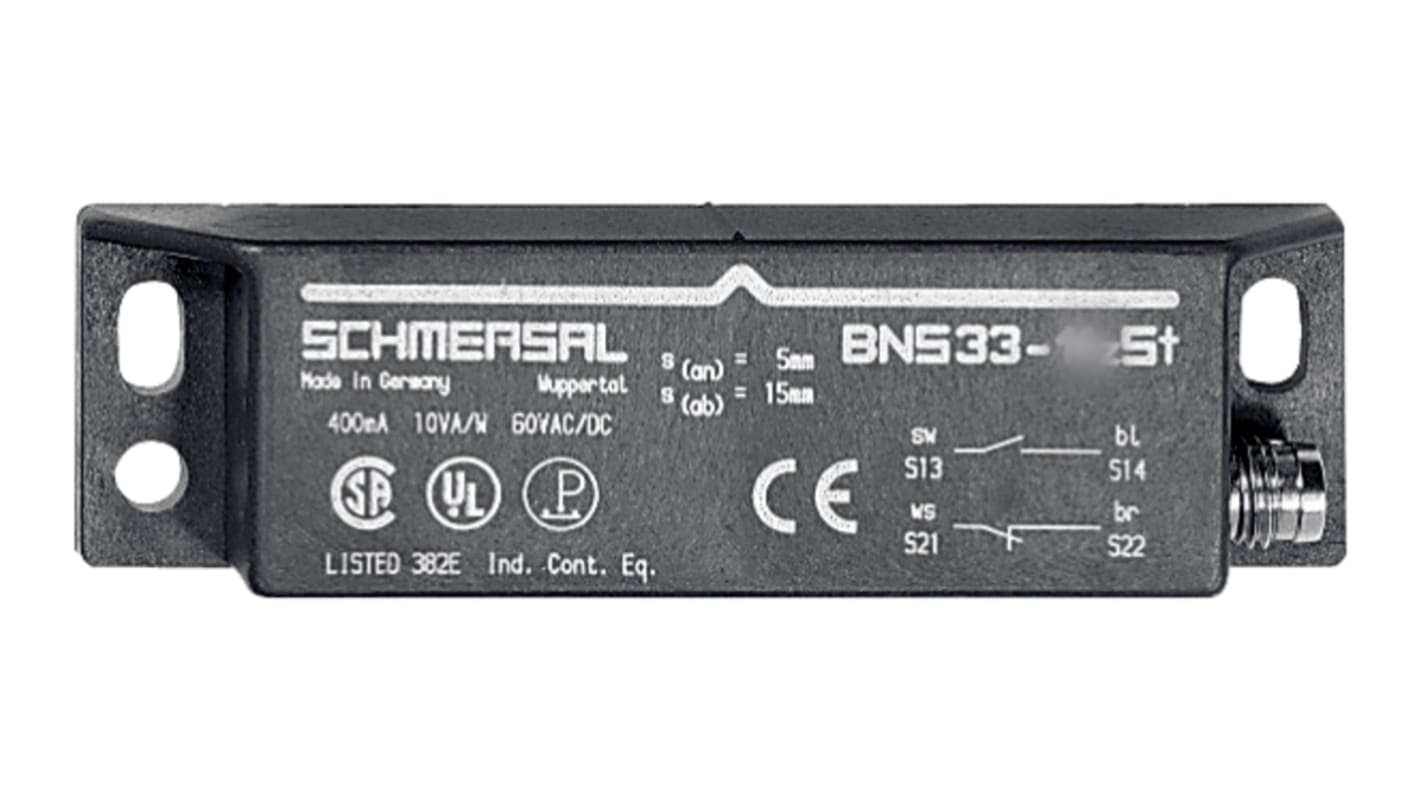

Schmersal BNS33 Series Magnetic Safety Switch, 100V ac/dc, Plastic Housing, NO/NC, M8
- RS Stock No.:
- 623-3155
- Mfr. Part No.:
- BNS 33-11Z-ST
- Brand:
- Schmersal
Subtotal (1 unit)*
£64.47
(exc. VAT)
£77.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
- Plus 21 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £64.47 |
*price indicative
- RS Stock No.:
- 623-3155
- Mfr. Part No.:
- BNS 33-11Z-ST
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Supply Voltage | 100V ac/dc | |
| Safety Contacts | NO/NC | |
| Housing Material | Plastic | |
| Connection Type | M8 | |
| Actuator Type | Coded | |
| Sensor Principle | Magnetic | |
| Safety Category | 4 | |
| Actuator Included | No | |
| Range | BNS33 | |
| Series | BNS33 | |
| IP Rating | IP67 | |
| Supply Current | 400mA | |
| Length | 88mm | |
| Width | 25mm | |
| Depth | 13mm | |
Select all | ||
|---|---|---|
Brand Schmersal | ||
Supply Voltage 100V ac/dc | ||
Safety Contacts NO/NC | ||
Housing Material Plastic | ||
Connection Type M8 | ||
Actuator Type Coded | ||
Sensor Principle Magnetic | ||
Safety Category 4 | ||
Actuator Included No | ||
Range BNS33 | ||
Series BNS33 | ||
IP Rating IP67 | ||
Supply Current 400mA | ||
Length 88mm | ||
Width 25mm | ||
Depth 13mm | ||
- COO (Country of Origin):
- DE
Schmersal Magnetic Safety Switch, NO/NC, 100V AC/DC - BNS33 Series - BNS 33-11Z-ST
Restrict access to hazardous areas in your workplace with this non-contact safety switch from Schmersal. It works by making one electrical connection and breaking one connection when it senses that the matching magnetic actuator (198-7863) is in position. The coded actuator can't be bypassed using a standard magnet. The device is encased in robust thermoplastic, and it can be discreetly mounted in a concealed position. Use it to switch voltages of up to 100V AC/DC at up to 0.25A.
Features and Benefits
• IP67 (ingress protection) rating means it's dust-tight and can be submerged for up to 30 minutes
• Operating temperature range of -25°C to +70°C for use in a wide range of environments
• Uses a standard 4-pin M8 connector for simple and fast connection
• Installation is made easier as it's insensitive to transverse misalignment
• Operating temperature range of -25°C to +70°C for use in a wide range of environments
• Uses a standard 4-pin M8 connector for simple and fast connection
• Installation is made easier as it's insensitive to transverse misalignment
Application Information
• Doors and windows
• Machine access panels
• Assembly lines
• Food processing
• Machine access panels
• Assembly lines
• Food processing
Why use an M8 connector?
An M8 connector system uses pre-assembled, over-moulded connectors that simply screw together without the need to solder at the point of installation.
