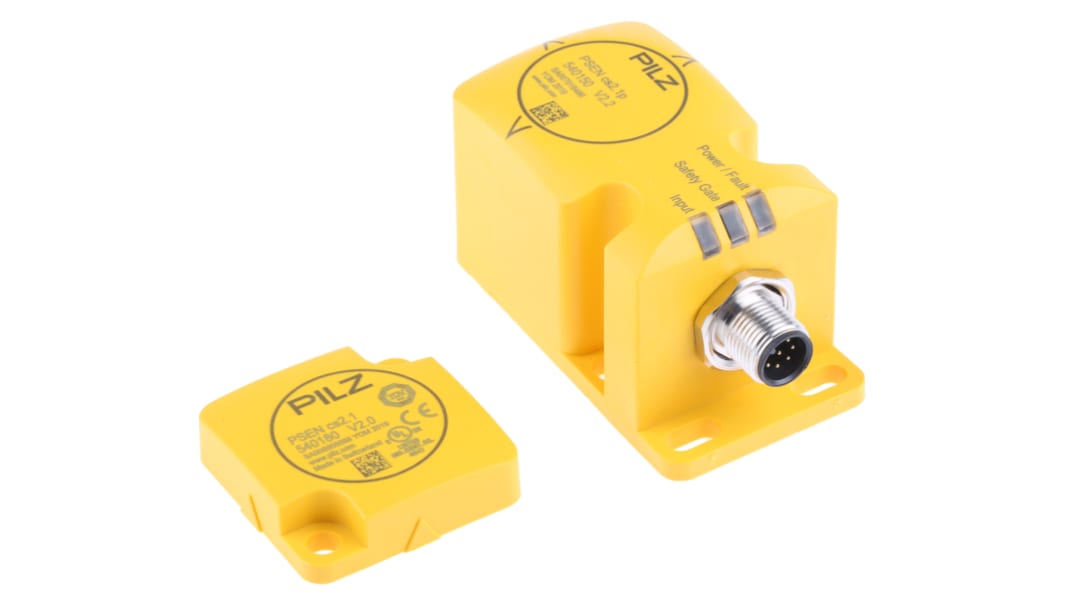

Pilz PSENmag Series Transponder Non-Contact Safety Switch, 24V dc, Plastic Housing, M12
- RS Stock No.:
- 619-2773
- Mfr. Part No.:
- 540100
- Brand:
- Pilz
Subtotal (1 unit)*
£170.11
(exc. VAT)
£204.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 4 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £170.11 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£258.62
(exc. VAT)
£310.34
(inc. VAT)
- RS Stock No.:
- 619-2773
- Mfr. Part No.:
- 540100
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Supply Voltage | 24V dc | |
| Housing Material | Plastic | |
| Connection Type | M12 | |
| Actuator Type | Coded | |
| Safety Category | 4 | |
| Sensor Principle | Transponder | |
| Actuator Included | Yes | |
| Series | PSENmag | |
| Switching Distance | 15 mm | |
| IP Rating | IP67 | |
| Length | 75mm | |
| Depth | 40mm | |
| Width | 40mm | |
| Number of Approach Directions | 5 | |
Select all | ||
|---|---|---|
Brand Pilz | ||
Supply Voltage 24V dc | ||
Housing Material Plastic | ||
Connection Type M12 | ||
Actuator Type Coded | ||
Safety Category 4 | ||
Sensor Principle Transponder | ||
Actuator Included Yes | ||
Series PSENmag | ||
Switching Distance 15 mm | ||
IP Rating IP67 | ||
Length 75mm | ||
Depth 40mm | ||
Width 40mm | ||
Number of Approach Directions 5 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
Pilz Non-contact Switch
The Pilz PSENcode series non-contact safety switch has an assured switching distance of 15mm. It has 2OSSD RFIDsafety outputs. It is coded and the only switch with an actuator from the PSEN cs3.1 series.
Supplied with:
Actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used.
Note:
When the safety gate is closed the switch provides 2 N/C semiconductor outputs.
Supplied with:
Actuator
Caution:
EN60947-5-3 standard is only met if the entire system consisting of a safety switch (PSENcode), an actuator (PSENcode) and a safety-monitoring module (PNOZ X or PNOZmulti) is used.
Note:
When the safety gate is closed the switch provides 2 N/C semiconductor outputs.
Features and Benefits
Input The supply voltage is 24VDC
4 directions of actuation
Fully coded
Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1
Unique assignment of the switch and its actuator Five directions of actuation
Connection type is M12, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C
4 directions of actuation
Fully coded
Series connection -You can connect more than 10 safety switches in a sequence to Cat 4 of EN954-1
Unique assignment of the switch and its actuator Five directions of actuation
Connection type is M12, 8-pin male
Housing material is plastic
Operating temperature ranges between -25°C and 70°C
Applications
Industrial environment
Certifications
IP67 rated
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
UL approved
TÜV certified
BG certified
CCC certified
FCC certified
IC certified
EN 60947-5-3
EN 62061 SIL CL 3
EN ISO 13849-1
PLe Cat. 4
EN ISO14119
CE certified
UL approved
TÜV certified
BG certified
CCC certified
FCC certified
IC certified
Approvals
BG, cUL, CCC
