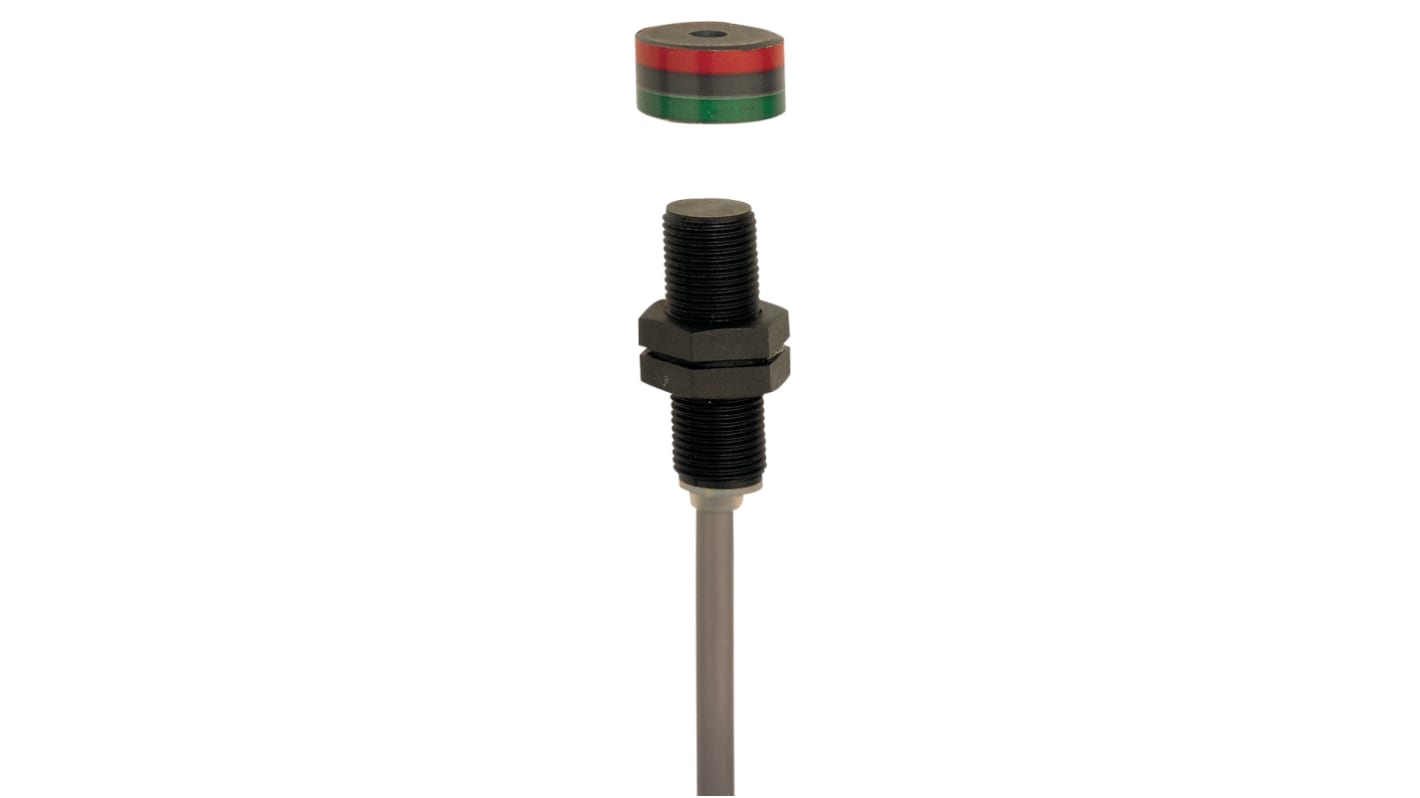

Schmersal EX-BNS120 Series Magnetic Non-Contact Safety Switch, Fibreglass Reinforced Thermoplastic Housing, 100V dc, NO,
- RS Stock No.:
- 283-8232
- Mfr. Part No.:
- EX-BNS120-11Z-3G/D
- Brand:
- Schmersal
Subtotal (1 unit)*
£73.03
(exc. VAT)
£87.64
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 9 unit(s) ready to ship
- Plus 8 unit(s) shipping from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.03 |
*price indicative
- RS Stock No.:
- 283-8232
- Mfr. Part No.:
- EX-BNS120-11Z-3G/D
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Product Type | Non-Contact Safety Switch | |
| Safety Contacts | NO, NC | |
| Housing Material | Fibreglass Reinforced Thermoplastic | |
| Connection Type | 1 m Cable | |
| Actuator Type | Magnetic | |
| Sensor Principle | Magnetic | |
| Safety Category | EN ISO 13849-1 | |
| Switching Current | 0.25A | |
| Switching Distance | Sar: 22 mm, Sao: 10 mm | |
| Series | EX-BNS120 | |
| Switching AC Voltage | 100V ac | |
| Switching DC Voltage | 100V dc | |
| IP Rating | IP67 | |
| Standards/Approvals | EN/IEC 60947-5-3 | |
| Length | 37mm | |
| Hazardous Area Certification | ATEX | |
| Width | 15mm | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Product Type Non-Contact Safety Switch | ||
Safety Contacts NO, NC | ||
Housing Material Fibreglass Reinforced Thermoplastic | ||
Connection Type 1 m Cable | ||
Actuator Type Magnetic | ||
Sensor Principle Magnetic | ||
Safety Category EN ISO 13849-1 | ||
Switching Current 0.25A | ||
Switching Distance Sar: 22 mm, Sao: 10 mm | ||
Series EX-BNS120 | ||
Switching AC Voltage 100V ac | ||
Switching DC Voltage 100V dc | ||
IP Rating IP67 | ||
Standards/Approvals EN/IEC 60947-5-3 | ||
Length 37mm | ||
Hazardous Area Certification ATEX | ||
Width 15mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The Schmersal safety sensor is Suitable for food processing industry only in combination with BP 15 SS.
No mechanical wear
Thermoplastic enclosure
