Omron D40A Series Electronic Detection Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, 1NO, M12
- RS Stock No.:
- 214-7514
- Distrelec Article No.:
- 301-36-734
- Mfr. Part No.:
- D40A-1C015-F
- Brand:
- Omron
Subtotal (1 unit)*
£126.20
(exc. VAT)
£151.44
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £126.20 |
*price indicative
- RS Stock No.:
- 214-7514
- Distrelec Article No.:
- 301-36-734
- Mfr. Part No.:
- D40A-1C015-F
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Supply Voltage | 24V dc | |
| Safety Contacts | 1NO | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Connection Type | M12 | |
| Sensor Principle | Electronic Detection | |
| Actuator Included | Yes | |
| Series | D40A | |
| Switching Distance | 5 → 15mm | |
| IP Rating | IP67 | |
| Depth | 48mm | |
| Length | 13mm | |
| Width | 25mm | |
Select all | ||
|---|---|---|
Brand Omron | ||
Supply Voltage 24V dc | ||
Safety Contacts 1NO | ||
Housing Material Polybutylene Terephthalate (PBT) | ||
Connection Type M12 | ||
Sensor Principle Electronic Detection | ||
Actuator Included Yes | ||
Series D40A | ||
Switching Distance 5 → 15mm | ||
IP Rating IP67 | ||
Depth 48mm | ||
Length 13mm | ||
Width 25mm | ||

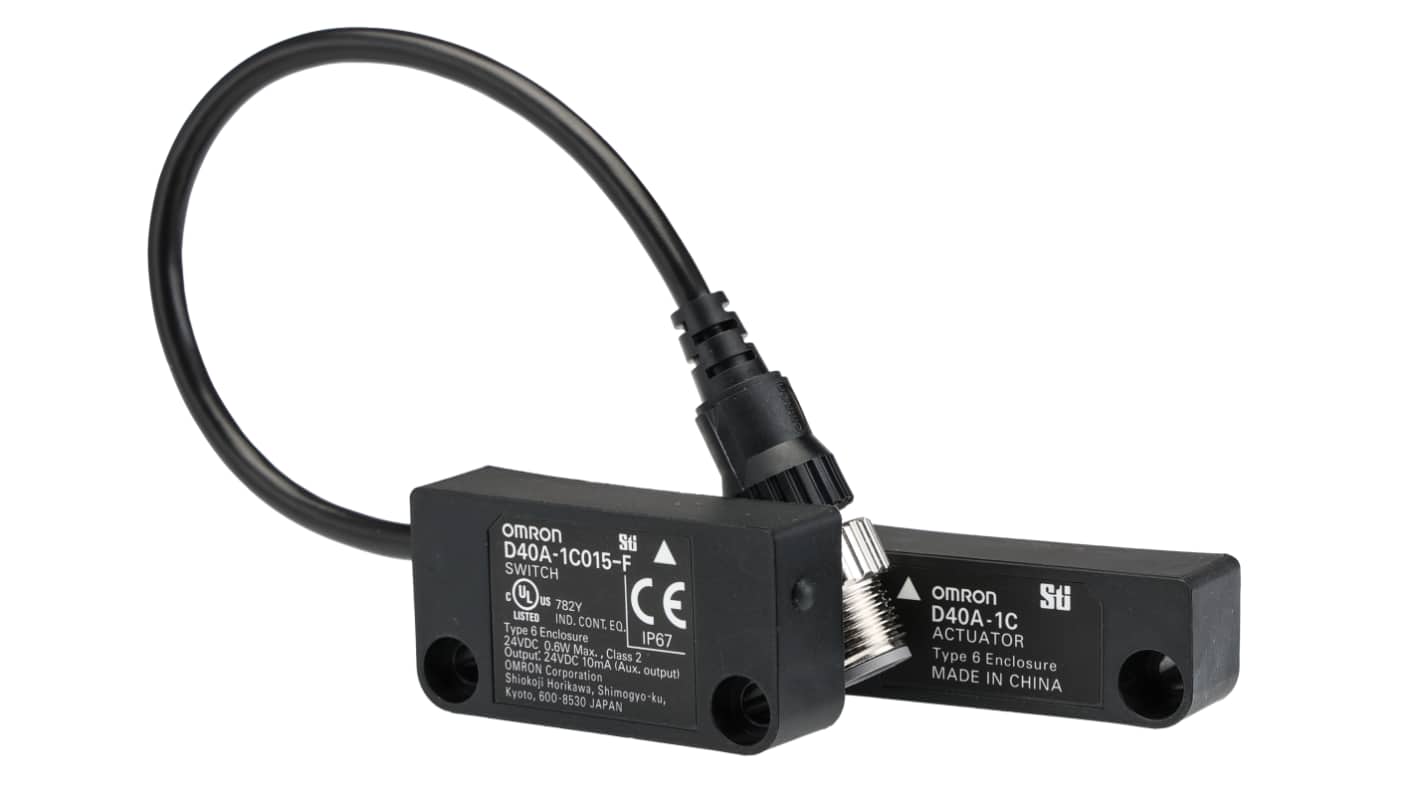

Omron D40A Series Non-Contact Safety Switch, 24V DC Supply Voltage, 1NO Safety Contacts - D40A-1C015-F
This non-contact safety switch is designed for maximum reliability in industrial applications. It features electronic detection, ensuring stable operation without physical contact. Measuring 48mm in depth, 25mm in width, and 13mm in length, it seamlessly integrates into safety control systems, enabling precise monitoring of door positions.
Features & Benefits
• Utilises electronic detection for enhanced stability in operation
• Compact actuator design saves space during installation
• Supports connection of up to 30 switches to a single controller
• Robust PBT housing offers exceptional durability and resistance
• Quick and easy M12 connector type simplifies wiring tasks
• Compact actuator design saves space during installation
• Supports connection of up to 30 switches to a single controller
• Robust PBT housing offers exceptional durability and resistance
• Quick and easy M12 connector type simplifies wiring tasks
Applications
• Ideal for safety systems in industrial machinery
• Used in automated doors for reliable entry monitoring
• Suitable for requiring dual-function safety and monitoring
• Integrates well into control systems with emergency stop functions
• Used in automated doors for reliable entry monitoring
• Suitable for requiring dual-function safety and monitoring
• Integrates well into control systems with emergency stop functions
How does the electronic detection mechanism improve performance?
The electronic detection mechanism ensures accurate door status detection, eliminating errors associated with conventional reed switches, especially in cases where doors close slowly.
What types of environments are suitable for this switch?
It is suitable for enclosed environments, including those exposed to dust and water, due to its IP67 rating, making it a robust option for various industrial settings.
Can it be mounted on different types of doors?
Yes, the versatile design allows for mounting on both swinging and sliding doors, accommodating various configurations for optimal safety integration.
What is the significance of using a connector type for wiring?
The connector type streamlines the installation process, reduces the need for extensive wiring, and allows for easy replacement during maintenance.
