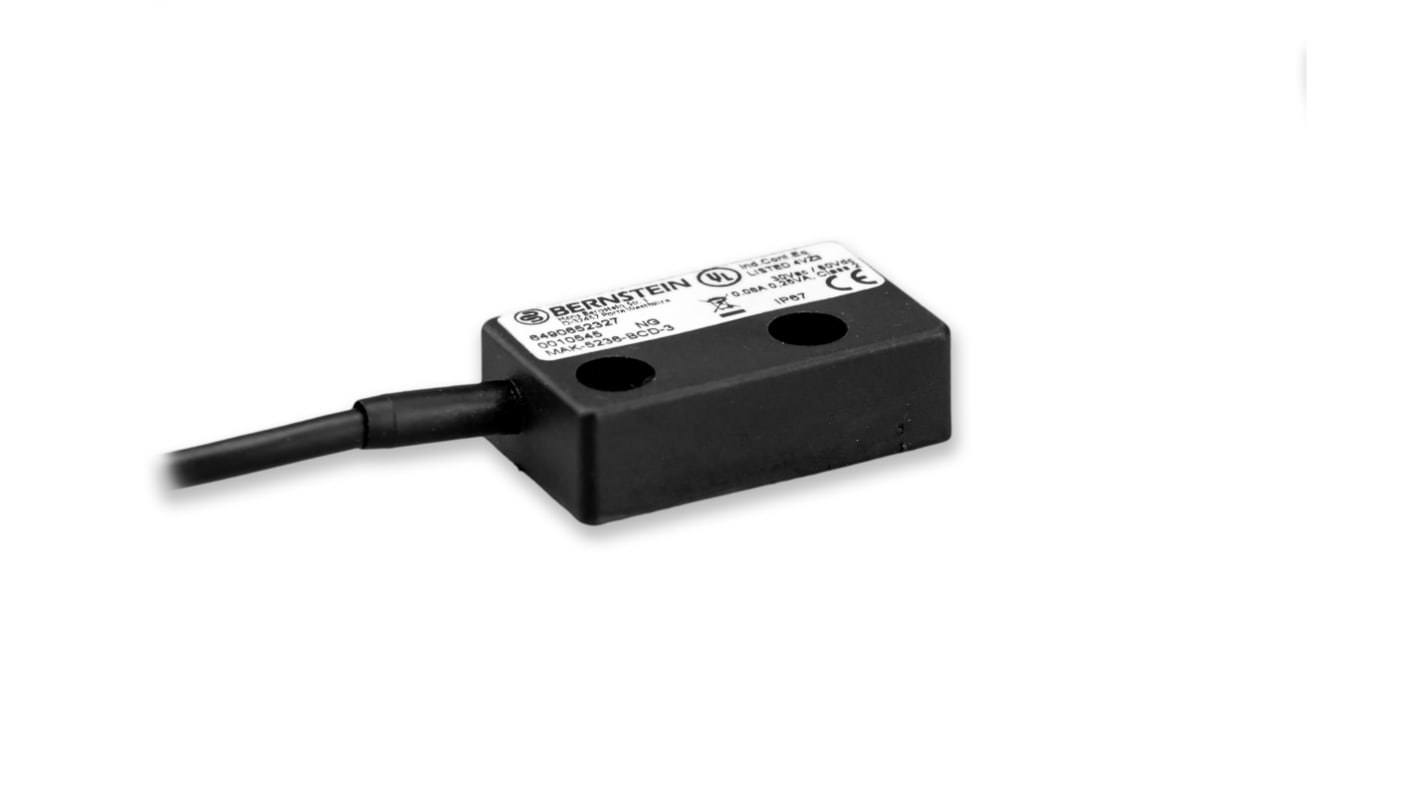

Bernstein AG MA-52 Series Magnetic Non-Contact Safety Switch, 170V dc, Polybutylene Terephthalate Housing, 9m Cable
- RS Stock No.:
- 210-1943
- Mfr. Part No.:
- 6490652329
- Brand:
- Bernstein AG
Subtotal (1 unit)*
£50.17
(exc. VAT)
£60.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £50.17 |
*price indicative
- RS Stock No.:
- 210-1943
- Mfr. Part No.:
- 6490652329
- Brand:
- Bernstein AG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bernstein AG | |
Supply Voltage | 170V dc | |
Housing Material | Polybutylene Terephthalate (PBT) | |
Connection Type | 9m Cable | |
Auxiliary Contacts | 1NO/1NC | |
Sensor Principle | Magnetic | |
Safety Category | 3 | |
Actuator Included | No | |
Series | MA-52 | |
Switching Distance | 5 mm | |
Depth | 13mm | |
Number of Approach Directions | 1 | |
Length | 43mm | |
Width | 26mm | |
Select all | ||
---|---|---|
Brand Bernstein AG | ||
Supply Voltage 170V dc | ||
Housing Material Polybutylene Terephthalate (PBT) | ||
Connection Type 9m Cable | ||
Auxiliary Contacts 1NO/1NC | ||
Sensor Principle Magnetic | ||
Safety Category 3 | ||
Actuator Included No | ||
Series MA-52 | ||
Switching Distance 5 mm | ||
Depth 13mm | ||
Number of Approach Directions 1 | ||
Length 43mm | ||
Width 26mm | ||
- COO (Country of Origin):
- DE
The Bernstein AG magnetic switch is a safety switch which is usually used for the safety-related monitoring of doors, hoods and flaps and due to other requirements, such as environmental conditions or the complexity of the application, it may be necessary to switch from a mechanical safety switch to another technology such as coded magnetic switch.
Reference magnet TK-52-CD / 2
Output NO contact, NC contact combined
Maximum Switching voltage 170 V DC / 120 V AC
Maximum Switching current 400 mA DC / 280 mA AC
Maximum Switching capacity 0.25 VA
mechanical life 3 x
Output NO contact, NC contact combined
Maximum Switching voltage 170 V DC / 120 V AC
Maximum Switching current 400 mA DC / 280 mA AC
Maximum Switching capacity 0.25 VA
mechanical life 3 x
