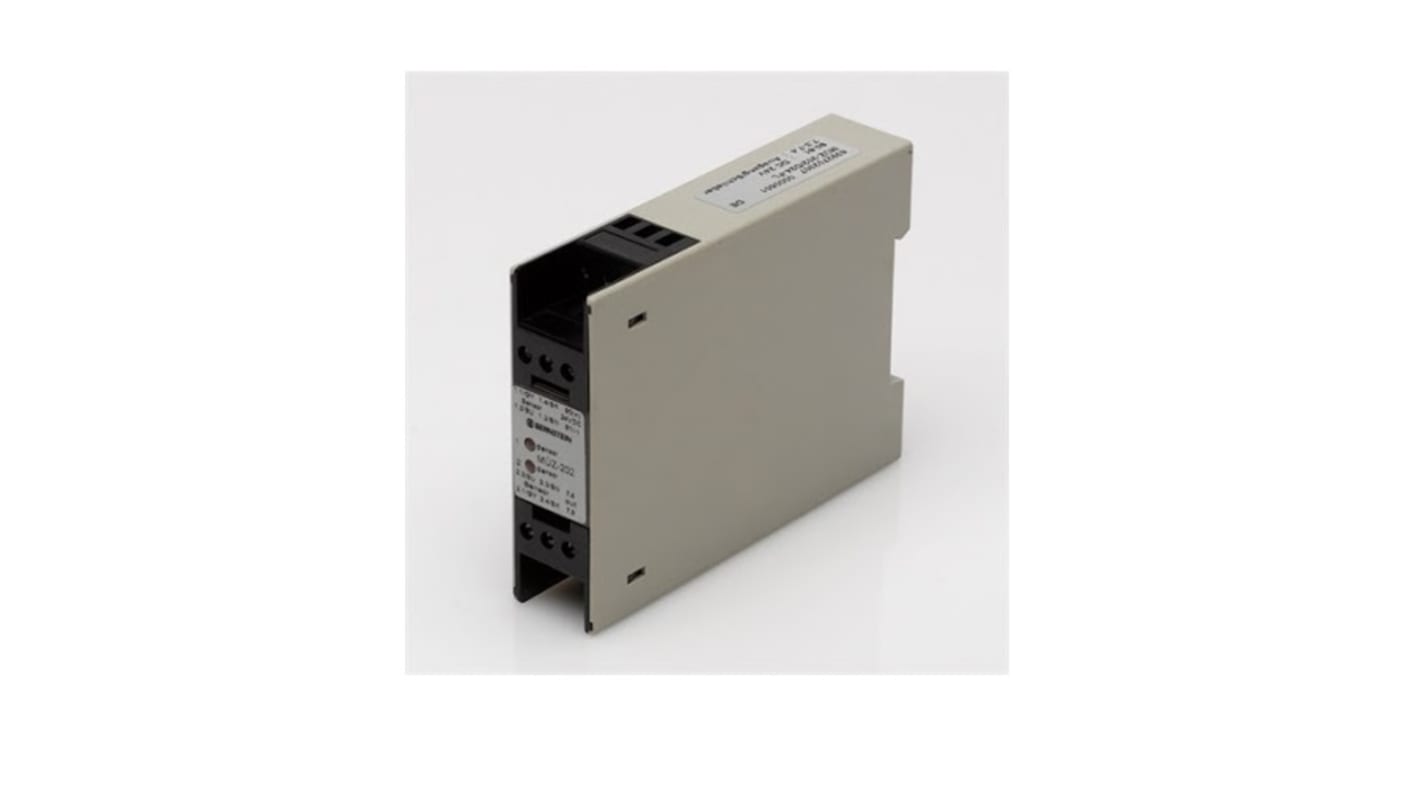

Bernstein AG MÜZ-202 Series Magnetic Non-Contact Safety Switch, 250V ac, Polycarbonate Housing
- RS Stock No.:
- 210-1917
- Mfr. Part No.:
- 6392702307
- Brand:
- Bernstein AG
Subtotal (1 unit)*
£203.43
(exc. VAT)
£244.12
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5 unit(s) shipping from 27 October 2025
- Plus 1 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £203.43 |
*price indicative
- RS Stock No.:
- 210-1917
- Mfr. Part No.:
- 6392702307
- Brand:
- Bernstein AG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bernstein AG | |
| Supply Voltage | 250V ac | |
| Housing Material | Polycarbonate | |
| Safety Category | 3 | |
| Sensor Principle | Magnetic | |
| Series | MÜZ-202 | |
Select all | ||
|---|---|---|
Brand Bernstein AG | ||
Supply Voltage 250V ac | ||
Housing Material Polycarbonate | ||
Safety Category 3 | ||
Sensor Principle Magnetic | ||
Series MÜZ-202 | ||
- COO (Country of Origin):
- DE
The Bernstein AG magnetic switches are sensors with a two-channel output. Which is usually used for the safety-related monitoring of doors, hoods and flaps and due to other requirements, such as environmental conditions or the complexity of the application, it may be necessary to switch from a mechanical safety switch to another technology such as coded magnetic switch.
Rated operating voltage 80-81 Ue DC 24V
Rated operating voltage range UB DC 20 to 27V
Rated operational current Ie 60mA
Rated insulation voltage Ui AC 250V
Rated operating voltage range UB DC 20 to 27V
Rated operational current Ie 60mA
Rated insulation voltage Ui AC 250V
