Telemecanique Sensors XCSRC Series RFID Non-Contact Safety Switch, 24V dc, Valox Housing, 2NO, M12
- RS Stock No.:
- 177-6830
- Mfr. Part No.:
- XCSRC10M12
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£165.74
(exc. VAT)
£198.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9 unit(s) shipping from 06 October 2025
- Plus 16 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £165.74 |
*price indicative
- RS Stock No.:
- 177-6830
- Mfr. Part No.:
- XCSRC10M12
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Supply Voltage | 24V dc | |
| Safety Contacts | 2NO | |
| Housing Material | Valox | |
| Connection Type | M12 | |
| Sensor Principle | RFID | |
| Safety Category | 4 | |
| Actuator Included | No | |
| Switching Distance | 10 mm | |
| Series | XCSRC | |
| Range | Preventa | |
| IP Rating | IP65, IP66, IP67, IP69K | |
| Supply Current | 60mA | |
| Length | 45mm | |
| Depth | 108.3mm | |
| Number of Approach Directions | 3 | |
| Width | 30mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Supply Voltage 24V dc | ||
Safety Contacts 2NO | ||
Housing Material Valox | ||
Connection Type M12 | ||
Sensor Principle RFID | ||
Safety Category 4 | ||
Actuator Included No | ||
Switching Distance 10 mm | ||
Series XCSRC | ||
Range Preventa | ||
IP Rating IP65, IP66, IP67, IP69K | ||
Supply Current 60mA | ||
Length 45mm | ||
Depth 108.3mm | ||
Number of Approach Directions 3 | ||
Width 30mm | ||

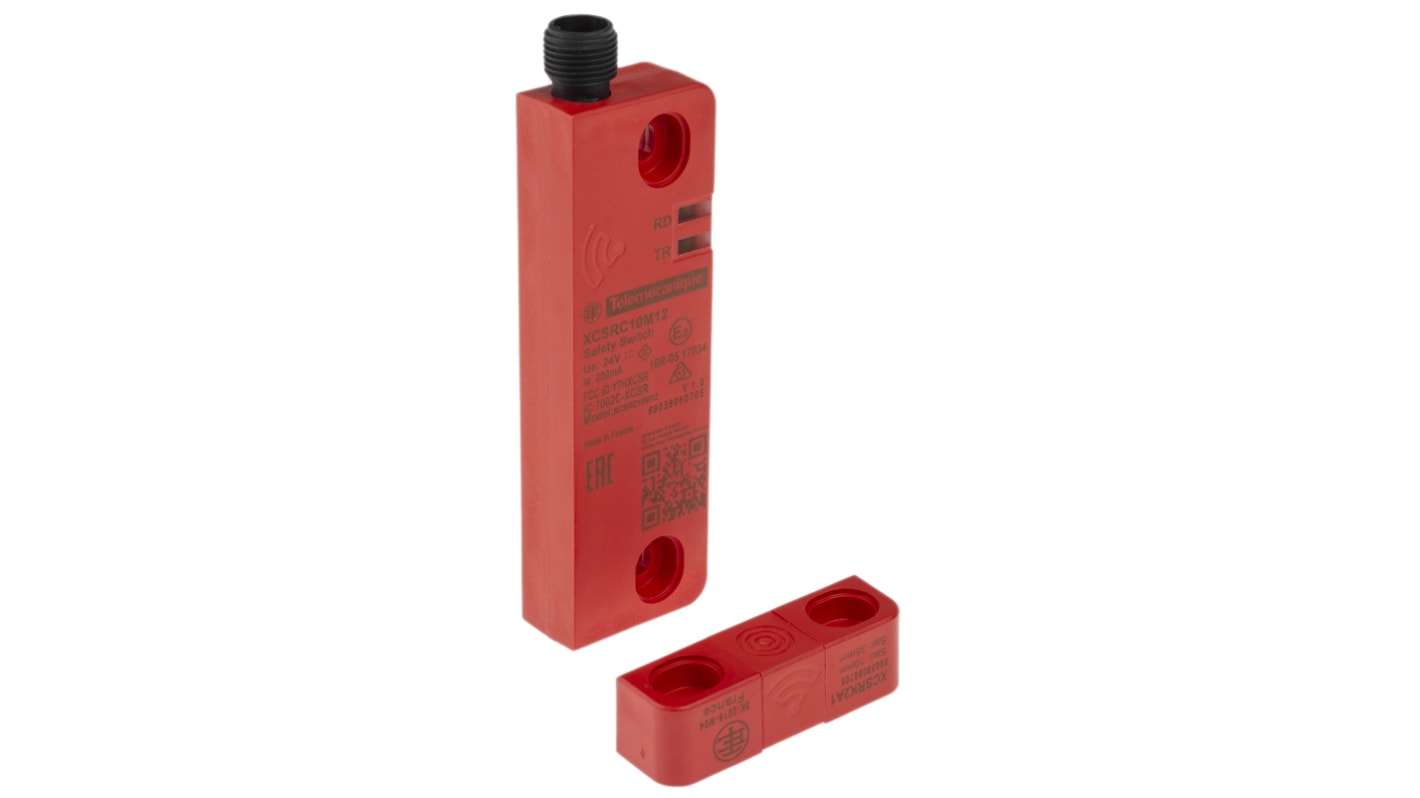

Telemecanique Sensors RFID Safety Switch
The Telemecanique sensors XCSRC series RFID safety switch is a 24VDC contactless switch with 2 NO contacts. The RFID safety switch is ideal for applications where there cannot be any contact between the switch and the actuator. It has a single male connector. When used in safety guards, it efficiently provides protection and safety to the machines and operators working on them.
Features and Benefits
• 5-pin M12 connector. Single model with unique pairing
• High durability
• Industrial degree of protection
• Industry standards compliant
• Multicolour LEDs for indication and signalling
• Operating temperature range between -25°C and 70°C
• Quick response time
• Shock resistant
• Short circuit protection
• Vibration resistant
• High durability
• Industrial degree of protection
• Industry standards compliant
• Multicolour LEDs for indication and signalling
• Operating temperature range between -25°C and 70°C
• Quick response time
• Shock resistant
• Short circuit protection
• Vibration resistant
Applications
• Factory automation
• Food processing industry
• Industrial robots
• Machine guard
• Packaging
• Protective door
• Food processing industry
• Industrial robots
• Machine guard
• Packaging
• Protective door
Certifications
• CE certified
• CSA certified
• CULus
• DIN EN 61373
• EAC approved
• EN/IEC 60947-5-2-2
• EN/IEC 60947-5-3
• FCC
• IEC 60068-2-27
• IEC 60068-2-6
• IP20 rated
• IP66 rated
• IP67 rated
• IP69K rated
• ISO 14119
• PL = e EN/ISO 13849-1
• RCM
• SIL 3 EN/IEC 61508
• SILCL 3 EN/IEC 62061
• UL listed
• CSA certified
• CULus
• DIN EN 61373
• EAC approved
• EN/IEC 60947-5-2-2
• EN/IEC 60947-5-3
• FCC
• IEC 60068-2-27
• IEC 60068-2-6
• IP20 rated
• IP66 rated
• IP67 rated
• IP69K rated
• ISO 14119
• PL = e EN/ISO 13849-1
• RCM
• SIL 3 EN/IEC 61508
• SILCL 3 EN/IEC 62061
• UL listed
