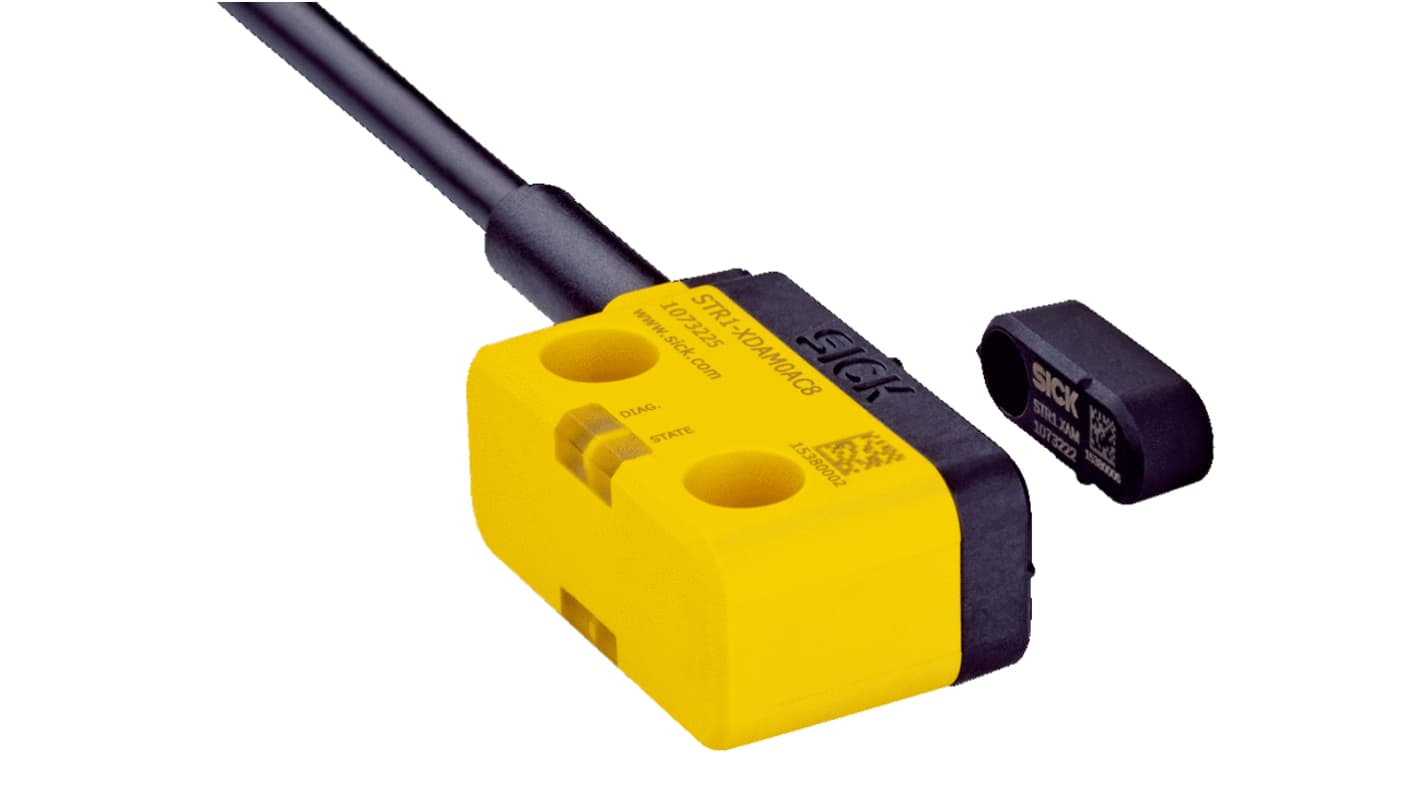

Sick STR1 Series RFID Non-Contact Safety Switch, 24V dc, Vistal Housing, M12
- RS Stock No.:
- 146-6219
- Mfr. Part No.:
- STR1-SAMU0AC8
- Brand:
- SICK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-6219
- Mfr. Part No.:
- STR1-SAMU0AC8
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Supply Voltage | 24V dc | |
| Housing Material | Vistal | |
| Connection Type | M12 | |
| Actuator Type | Coded | |
| Auxiliary Contacts | 1 | |
| Sensor Principle | RFID | |
| Safety Category | 4 | |
| Actuator Included | Yes | |
| Series | STR1 | |
| Switching Distance | 14 (Front Sensor - On) mm, 28 (Off) mm, 9 (Side Sensor - On) mm | |
| IP Rating | IP67 | |
| Supply Current | 50mA | |
| Width | 26.2mm | |
| Number of Approach Directions | 5 | |
| Length | 18mm | |
| Depth | 40mm | |
| Standards Met | CE, cULus, EN 62061, FCC, IEC 61508 | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand SICK | ||
Supply Voltage 24V dc | ||
Housing Material Vistal | ||
Connection Type M12 | ||
Actuator Type Coded | ||
Auxiliary Contacts 1 | ||
Sensor Principle RFID | ||
Safety Category 4 | ||
Actuator Included Yes | ||
Series STR1 | ||
Switching Distance 14 (Front Sensor - On) mm, 28 (Off) mm, 9 (Side Sensor - On) mm | ||
IP Rating IP67 | ||
Supply Current 50mA | ||
Width 26.2mm | ||
Number of Approach Directions 5 | ||
Length 18mm | ||
Depth 40mm | ||
Standards Met CE, cULus, EN 62061, FCC, IEC 61508 | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- MY
the Str1 transponder safety switch has monitored semiconductor outputs (oSSds) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. the Str1 is available with three codes. universally coded sensors accept all actuators. an actuator must be taught into both the uniquely coded and permanently coded variants, this is the only actuator that the Str1 then accepts. the sensor has three active sensor surfaces. the actuator comes in three different sizes. this allows the Str1 to offer maximum mounting flexibility.
response range of up to 14 mm
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
