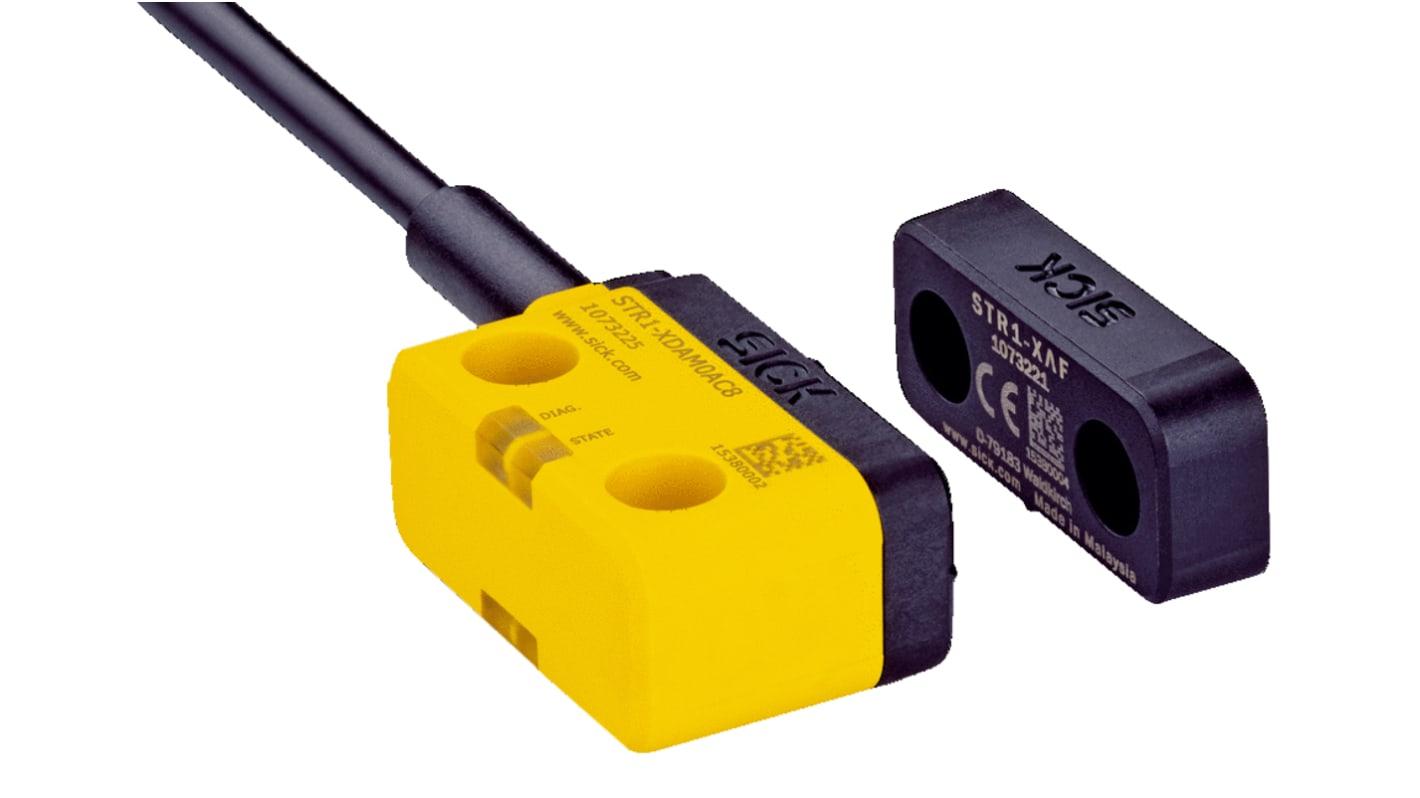

Sick STR1 Series RFID Non-Contact Safety Switch, 24V dc, Vistal Housing, Cable
- RS Stock No.:
- 146-6214
- Mfr. Part No.:
- STR1-SAFU03P5
- Brand:
- SICK
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-6214
- Mfr. Part No.:
- STR1-SAFU03P5
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Supply Voltage | 24V dc | |
| Housing Material | Vistal | |
| Connection Type | Cable | |
| Actuator Type | Flat | |
| Auxiliary Contacts | 1 | |
| Sensor Principle | RFID | |
| Safety Category | 4 | |
| Actuator Included | Yes | |
| Switching Distance | 14 (Front Sensor - On) mm, 28 (Off) mm, 9 (Side Sensor - On) mm | |
| Series | STR1 | |
| IP Rating | IP67 | |
| Supply Current | 50mA | |
| Number of Approach Directions | 5 | |
| Depth | 40mm | |
| Width | 26.2mm | |
| Length | 18mm | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand SICK | ||
Supply Voltage 24V dc | ||
Housing Material Vistal | ||
Connection Type Cable | ||
Actuator Type Flat | ||
Auxiliary Contacts 1 | ||
Sensor Principle RFID | ||
Safety Category 4 | ||
Actuator Included Yes | ||
Switching Distance 14 (Front Sensor - On) mm, 28 (Off) mm, 9 (Side Sensor - On) mm | ||
Series STR1 | ||
IP Rating IP67 | ||
Supply Current 50mA | ||
Number of Approach Directions 5 | ||
Depth 40mm | ||
Width 26.2mm | ||
Length 18mm | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- MY
the Str1 transponder safety switch has monitored semiconductor outputs (oSSds) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. the Str1 is available with three codes. universally coded sensors accept all actuators. an actuator must be taught into both the uniquely coded and permanently coded variants, this is the only actuator that the Str1 then accepts. the sensor has three active sensor surfaces. the actuator comes in three different sizes. this allows the Str1 to offer maximum mounting flexibility.
response range of up to 14 mm
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
