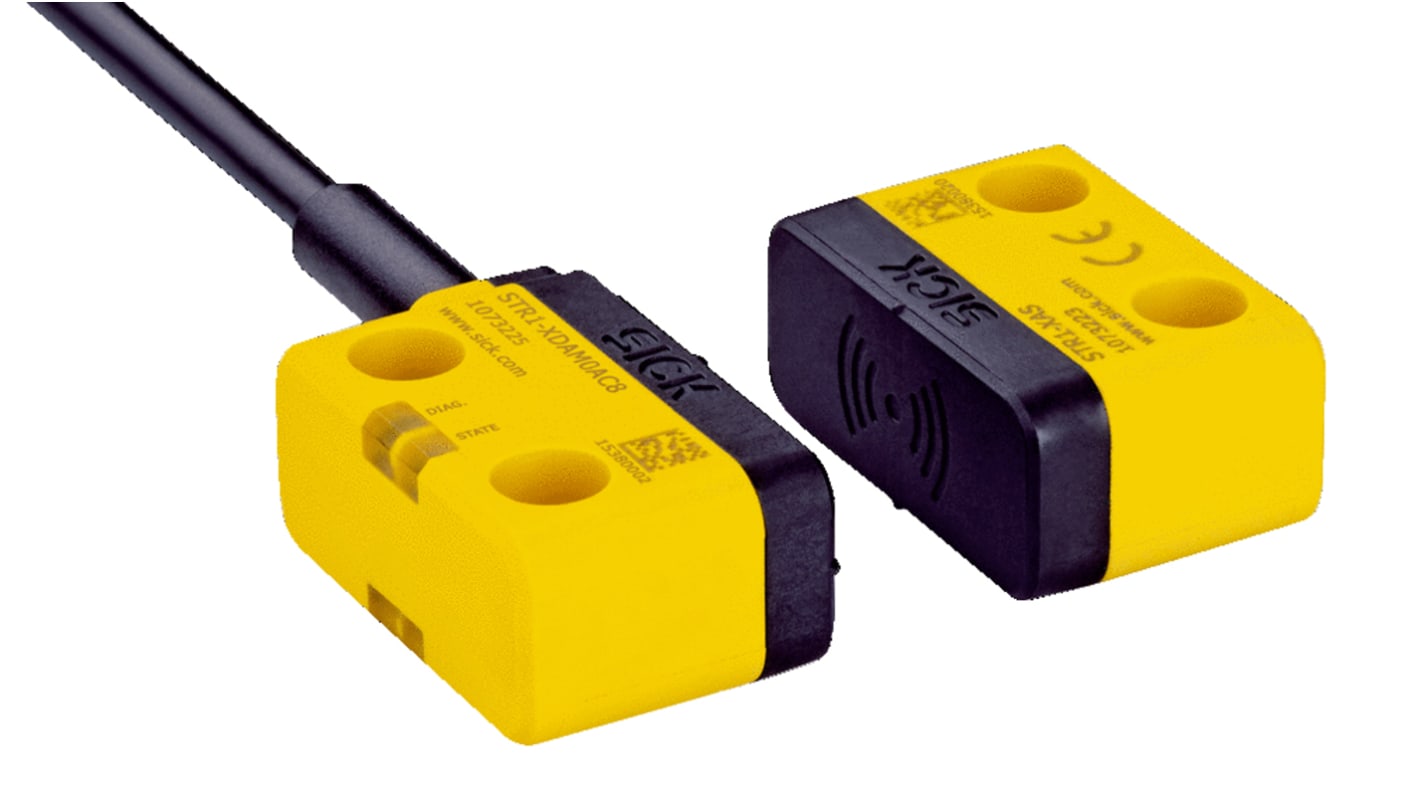

SICK STR1 Series RFID Non-Contact Safety Switch, 24V dc, Vistal Housing, 2NO, Cable
- RS Stock No.:
- 146-6205
- Mfr. Part No.:
- STR1-SASM03P5
- Brand:
- SICK
Subtotal (1 unit)*
£118.47
(exc. VAT)
£142.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £118.47 |
*price indicative
- RS Stock No.:
- 146-6205
- Mfr. Part No.:
- STR1-SASM03P5
- Brand:
- SICK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SICK | |
| Supply Voltage | 24V dc | |
| Safety Contacts | 2NO | |
| Housing Material | Vistal | |
| Connection Type | Cable | |
| Actuator Type | Standard Coded | |
| Auxiliary Contacts | 1 | |
| Safety Category | 4 | |
| Sensor Principle | RFID | |
| Actuator Included | Yes | |
| Switching Distance | 10 (Front Sensor - On) mm, 25 (Off) mm, 6 (Side Sensor - On) mm | |
| Series | STR1 | |
| IP Rating | IP67 | |
| Supply Current | 50mA | |
| Number of Approach Directions | 5 | |
| Width | 26.2mm | |
| Length | 18mm | |
| Depth | 40mm | |
Select all | ||
|---|---|---|
Brand SICK | ||
Supply Voltage 24V dc | ||
Safety Contacts 2NO | ||
Housing Material Vistal | ||
Connection Type Cable | ||
Actuator Type Standard Coded | ||
Auxiliary Contacts 1 | ||
Safety Category 4 | ||
Sensor Principle RFID | ||
Actuator Included Yes | ||
Switching Distance 10 (Front Sensor - On) mm, 25 (Off) mm, 6 (Side Sensor - On) mm | ||
Series STR1 | ||
IP Rating IP67 | ||
Supply Current 50mA | ||
Number of Approach Directions 5 | ||
Width 26.2mm | ||
Length 18mm | ||
Depth 40mm | ||
- COO (Country of Origin):
- MY
the Str1 transponder safety switch has monitored semiconductor outputs (oSSds) and can be safely connected either individually or in series. It can be used for applications where a high level of manipulation protection is required. the Str1 is available with three codes. universally coded sensors accept all actuators. an actuator must be taught into both the uniquely coded and permanently coded variants, this is the only actuator that the Str1 then accepts. the sensor has three active sensor surfaces. the actuator comes in three different sizes. this allows the Str1 to offer maximum mounting flexibility.
response range of up to 14 mm
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
Small housing with flexible mounting
options
Sensor activation possible from three
sides
three different actuators available
