Schmersal RSS16 Series Non-Flush RFID Non-Contact Safety Switch, 26.4V dc, Reinforced Thermoplastic Housing, Screw
- RS Stock No.:
- 146-5813
- Mfr. Part No.:
- RSS16-I2-D-SK
- Brand:
- Schmersal
Subtotal (1 unit)*
£182.33
(exc. VAT)
£218.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £182.33 |
*price indicative
- RS Stock No.:
- 146-5813
- Mfr. Part No.:
- RSS16-I2-D-SK
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Supply Voltage | 26.4V dc | |
| Housing Material | Glass Fibre Reinforced Thermoplastic | |
| Connection Type | Screw | |
| Installation Type | Non-Flush | |
| Actuator Type | Flat | |
| Sensor Principle | RFID | |
| Actuator Included | No | |
| Series | RSS16 | |
| Switching Distance | 5 (On) mm, 15 mm, 30 (Off) mm | |
| IP Rating | IP65, IP67 | |
| Supply Current | 2100mA | |
| Standards Met | CE, cULus, EAC, TUV | |
| Depth | 30mm | |
| Length | 91mm | |
| Width | 52mm | |
Select all | ||
|---|---|---|
Brand Schmersal | ||
Supply Voltage 26.4V dc | ||
Housing Material Glass Fibre Reinforced Thermoplastic | ||
Connection Type Screw | ||
Installation Type Non-Flush | ||
Actuator Type Flat | ||
Sensor Principle RFID | ||
Actuator Included No | ||
Series RSS16 | ||
Switching Distance 5 (On) mm, 15 mm, 30 (Off) mm | ||
IP Rating IP65, IP67 | ||
Supply Current 2100mA | ||
Standards Met CE, cULus, EAC, TUV | ||
Depth 30mm | ||
Length 91mm | ||
Width 52mm | ||
- COO (Country of Origin):
- DE

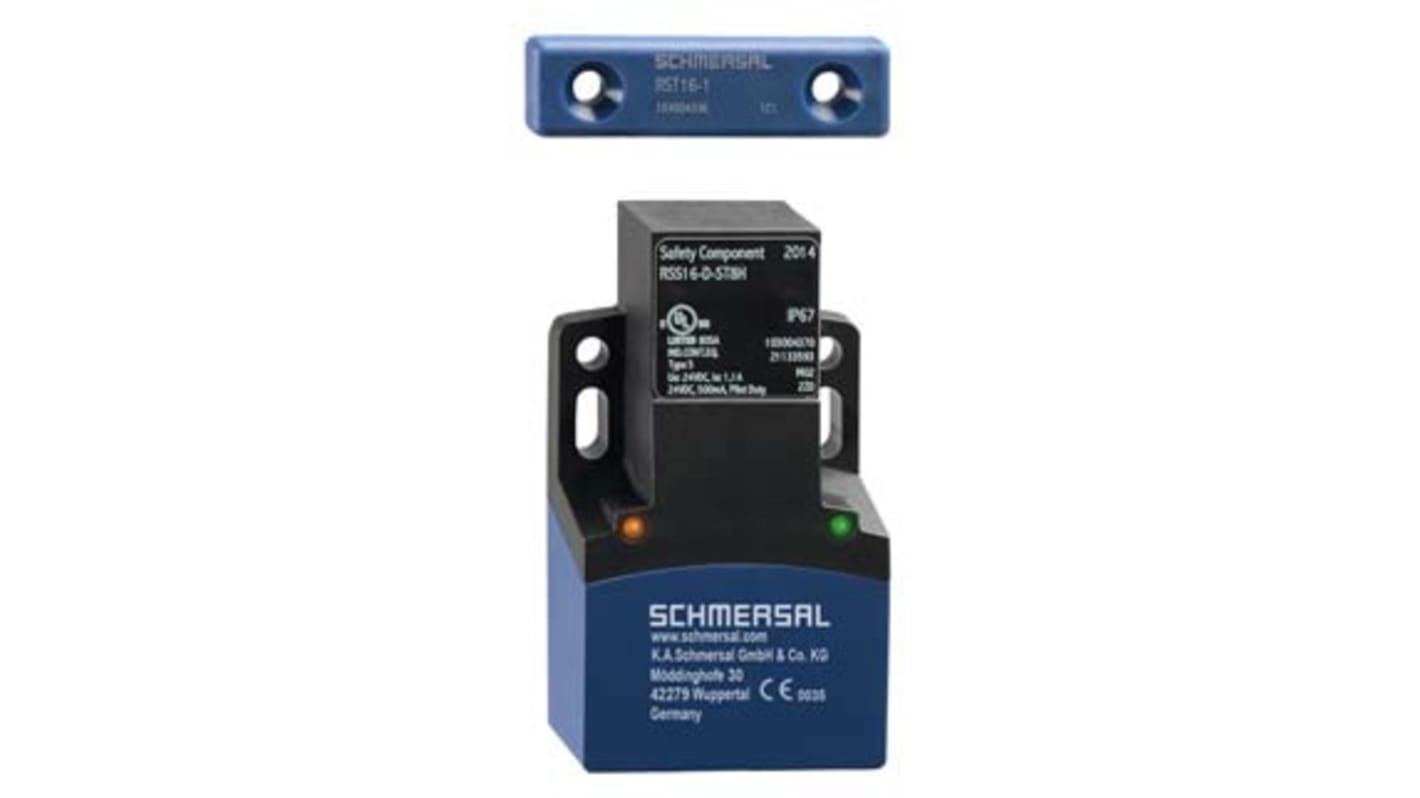

Schmersal Non-Contact Safety Switch, 2100mA Supply Current, Screw Terminals - RSS16 Series - RSS16-I2-D-SK
Choose this non-contact safety switch from Schmersal to reduce the risk of injury in your workplace. It automatically cuts off the power supply to equipment when a hazardous situation arises for improved safety. The glass fibre-reinforced thermoplastic housing is resistant to impact and heat for an extended service life in harsh environments. Its screw terminals ensure a simple and secure connection that won't shake loose, even in the event of heavy vibrations.
Features & Benefits
• Compact dimensions of 91 (length) x 52 (width) x 30mm (depth) to maximise packing space in your control cabinet
• RFID coding to help reduce the risk of tampering
• IP67 rating means it's protected against dust and submersion in 1m of water for up to 30 minutes
• RFID coding to help reduce the risk of tampering
• IP67 rating means it's protected against dust and submersion in 1m of water for up to 30 minutes
Applications
• Automotive manufacturing
• Printing and textile industry
• Automated production lines
• Oil and gas industry
• Printing and textile industry
• Automated production lines
• Oil and gas industry
What's the supply voltage of this unit?
This unit has a supply voltage of 26.4V DC for use in low-power applications.
How does RFID technology work?
RFID technology uses radio frequency waves for communication between a sensor and an actuator. This means that the switch will only work with the properly coded actuator for increased security.
