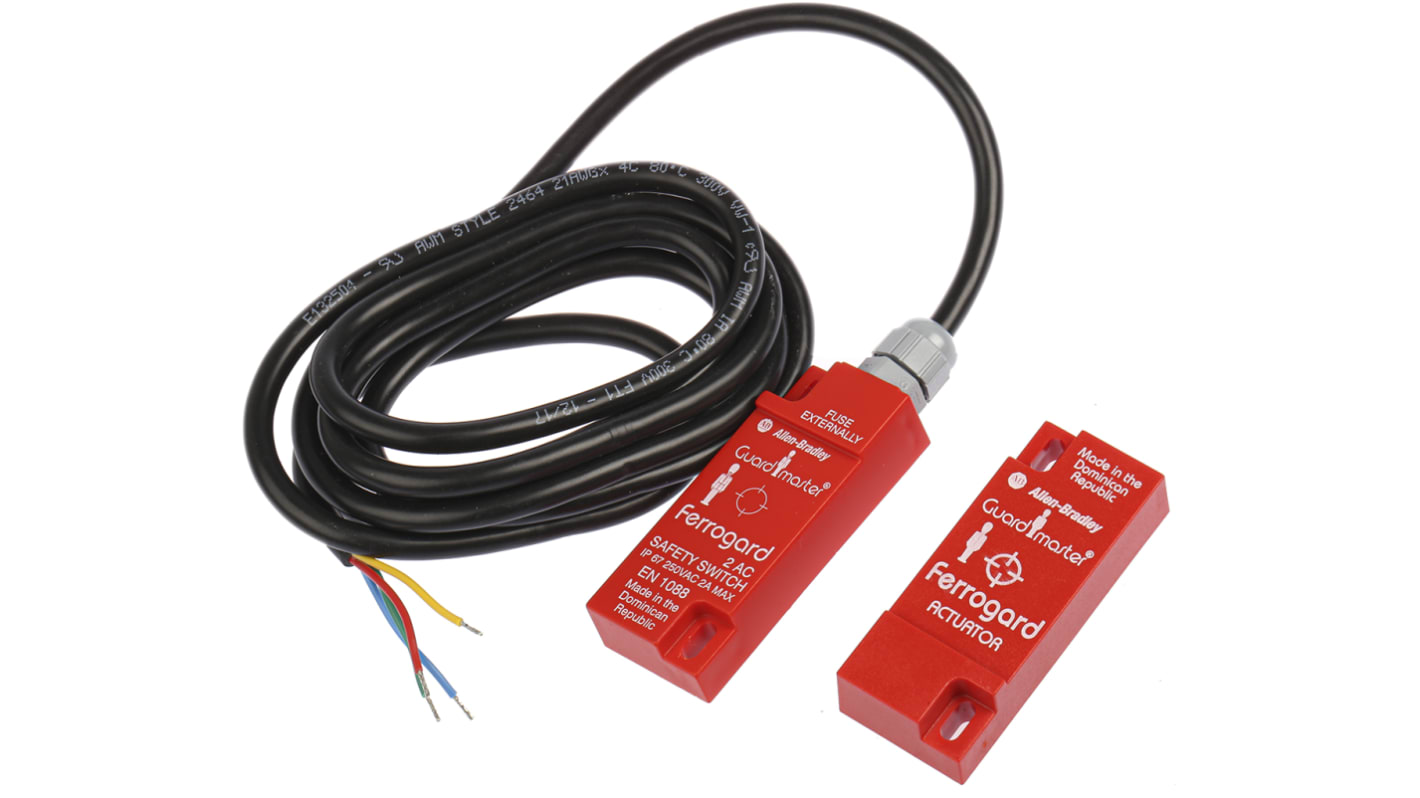

Ferrogard 440N Magnetic Safety Switch, Plastic, 250 V ac

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Ferrogard 1, 2, 20 & 21 Non Contact Safety Switch

The Ferrogard FRS 1, 2, 20 and 21 are magnetically actuated non-contact safety switches which offer reliability and a high tolerance to misalignment. Designed to be installed on a guard door, the action of the magnetic actuator being removed from the switch opens the N.C. safety contacts therefore isolating the control power to the machines primary control element. Made from moulded ABS with a rectangular housing and sealed to IP67 (NEMA 6P), these non-contact switches are ideal for wet environments.

Non-contact actuation
High tolerance to misalignment
Plastic rectangular housing
Cable or quick-disconnect (QD) connections
M4 mountable in any position
Operating distance for safety contacts - make;12mm, break;23mm
Operating temperature range: -10°C to +65°C
Sealed to IP67
Cat. 1 device per EN 954-1 dual channel interlocks suitable for Cat. 3 or 4 systems

Standards

EN954-1, ISO13849-1, IEC/EN60204-1, NFPA79, EN1088, ISO14119, ANSI B11.19, AS4024.1.

Approvals

CE Marked for all applicable directives and cULus.

Specifications
Attribute Value
Supply Voltage 250 V ac
Safety Contacts NC
Housing Material Plastic
Auxiliary Contacts NO
Connection Type 2m cable
Range Ferrogard
Series 440N
IP Rating IP67
Actuator Included Yes
Length 76mm
Safety Category 1
Depth 15mm
Sensor Principle Magnetic
Actuator Type Magnetic
Width 30mm
Housing Colour Red
Dimensions 76 x 30 x 15 mm
36 In stock for FREE next working day delivery
Price Each
£ 118.00
(exc. VAT)
£ 141.60
(inc. VAT)
Units
Per unit
1 +
£118.00
