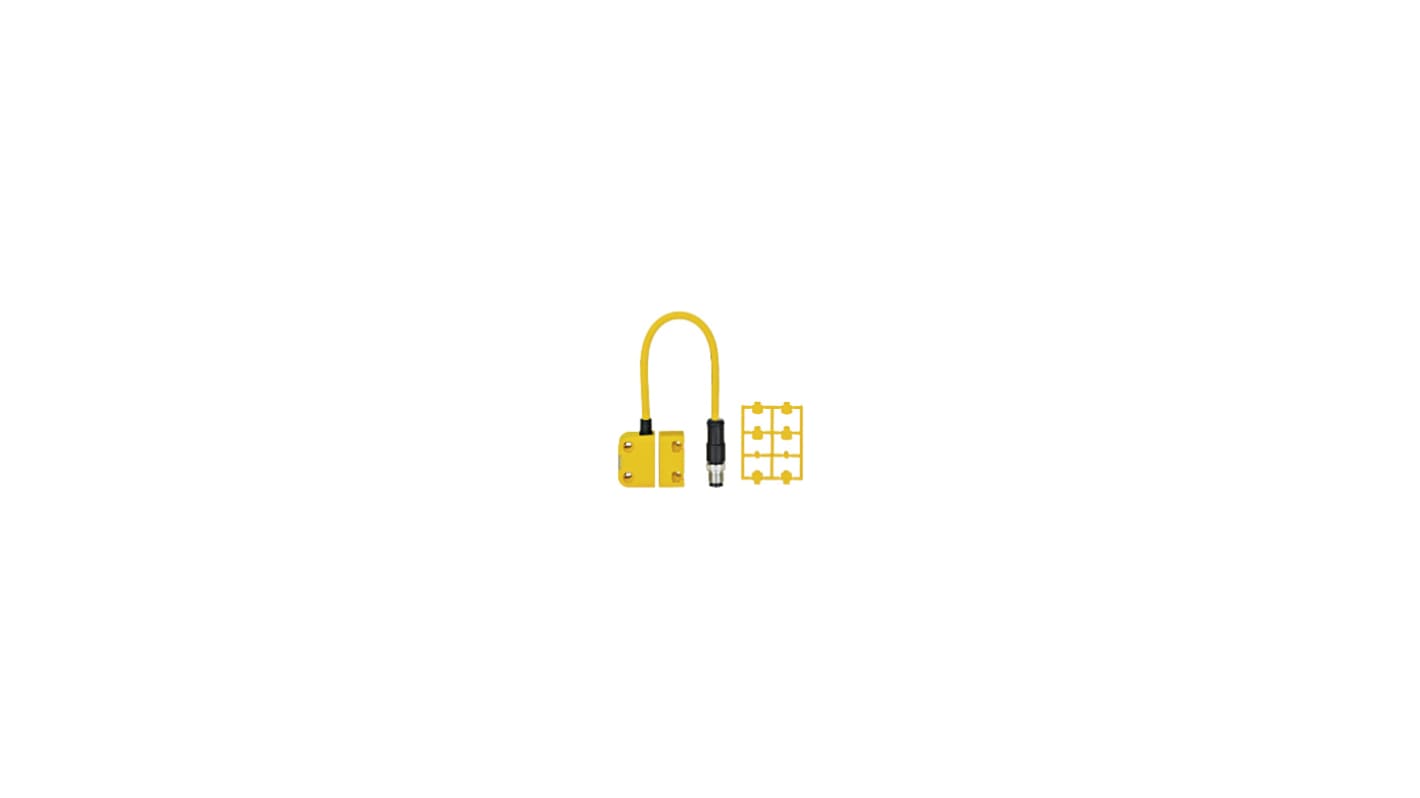

Pilz 506 Series Magnetic Non-Contact Safety Switch, 24V dc, Polybutylene Terephthalate Housing, M12
- RS Stock No.:
- 313-660
- Mfr. Part No.:
- 506343
- Brand:
- Pilz
Subtotal (1 unit)*
£69.25
(exc. VAT)
£83.10
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £69.25 |
*price indicative
- RS Stock No.:
- 313-660
- Mfr. Part No.:
- 506343
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Supply Voltage | 24V dc | |
| Housing Material | Polybutylene Terephthalate (PBT) | |
| Connection Type | M12 | |
| Switch Type | RFID Safety Switch | |
| Sensor Principle | Magnetic | |
| Series | 506 | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Supply Voltage 24V dc | ||
Housing Material Polybutylene Terephthalate (PBT) | ||
Connection Type M12 | ||
Switch Type RFID Safety Switch | ||
Sensor Principle Magnetic | ||
Series 506 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Pilz Magnetic Safety Switch features 2 N/O contacts, 1 auxiliary N/O contact, and a 5-pin M12 male connector. It has a square design with LED indication and an IP67 rating for protection against dust and water. The operating distance is 10 mm, and the height design is 18 mm. It operates on 24 V DC with a switching voltage of 24 V and is suitable for ambient temperatures ranging from -10 °C to 55 °C. The package includes 1 sensor with actuator.
CE and UKCA approved
Housing material upper part is made of PBT
Housing material upper part is made of PBT
