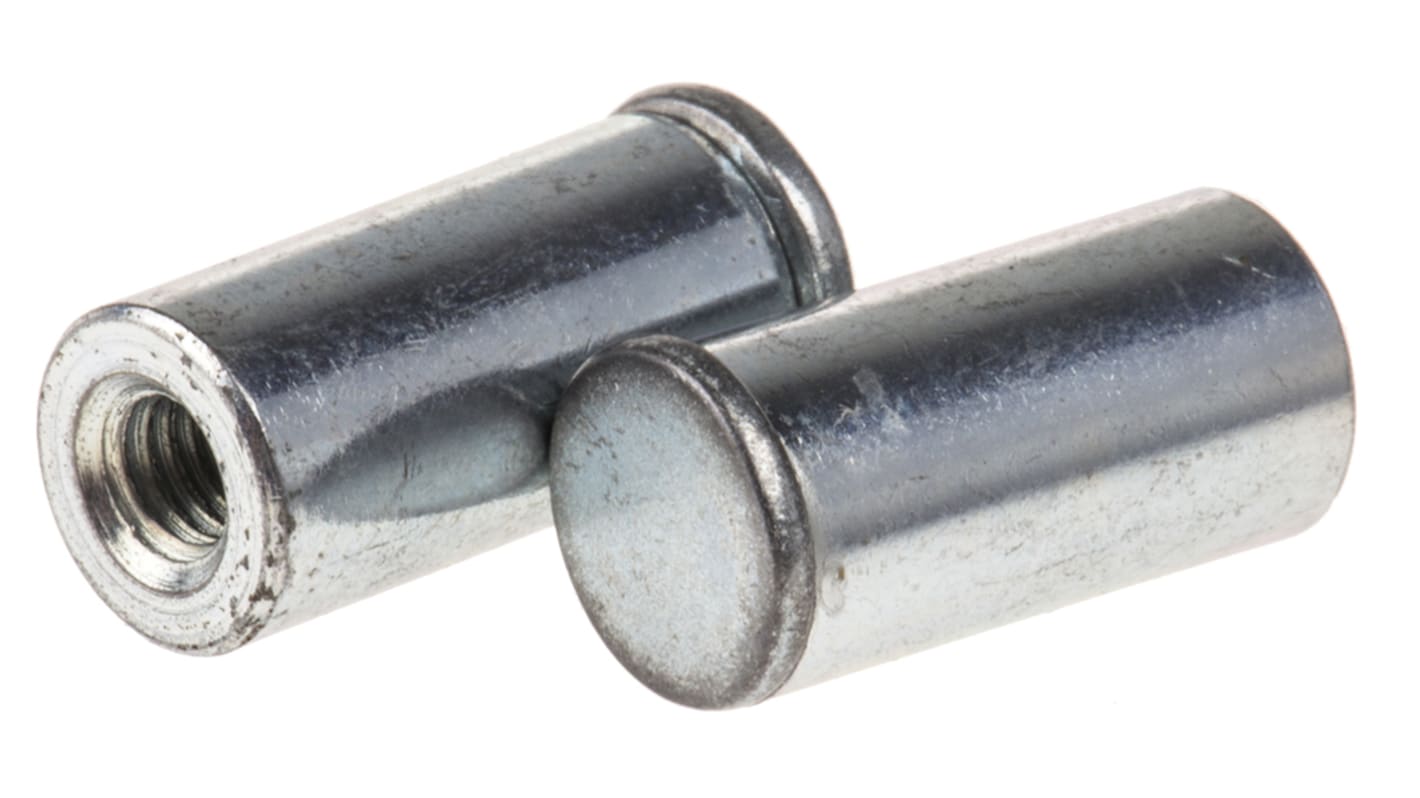

Eclipse Neodymium Magnet 5N, Length 11.5mm, Width 6mm
- RS Stock No.:
- 762-1008
- Mfr. Part No.:
- E770NEO
- Brand:
- Eclipse
Bulk discount available
Subtotal (1 bag of 2 units)*
£5.09
(exc. VAT)
£6.11
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 122 unit(s) ready to ship
- Plus 72 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £5.09 | £2.545 |
5 - 9 | £4.88 | £2.44 |
10 - 19 | £4.54 | £2.27 |
20 + | £4.27 | £2.135 |
*price indicative
- RS Stock No.:
- 762-1008
- Mfr. Part No.:
- E770NEO
- Brand:
- Eclipse
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eclipse | |
Magnet Type | Pot | |
Width/Diameter | 6mm | |
Thread Size | M3 | |
Pull Force | 5N | |
Thickness | 4.5mm | |
Attachment Type | Threaded Hole M3 | |
Length | 11.5mm | |
Select all | ||
---|---|---|
Brand Eclipse | ||
Magnet Type Pot | ||
Width/Diameter 6mm | ||
Thread Size M3 | ||
Pull Force 5N | ||
Thickness 4.5mm | ||
Attachment Type Threaded Hole M3 | ||
Length 11.5mm | ||
- COO (Country of Origin):
- CN
Neodymium Shallow Pot Magnets, Threaded hole
Single bi-pole assembly neodymium iron boron magnet assembly
Neodymium pole pieces encased in an aluminium pot
Neodymium magnets can achieve equal or greater holding forces than larger conventional pot magnets
Maximising contact area with high strength
Made from Rare Earth material giving high strength flux fields
Assembled in a mild steel zinc coated shallow pot
The neodymium magnet and the mild steel pot form an intricate magnetic circuit to give a bi-pole arrangement on the contact face
The bi-pole effect gives a strong shallow field suitable for fixing, lifting and any form of closure applications
Magnets work at temperatures upto 80°C, max operating temperature of 100°C
Disc shaped
Neodymium pole pieces encased in an aluminium pot
Neodymium magnets can achieve equal or greater holding forces than larger conventional pot magnets
Maximising contact area with high strength
Made from Rare Earth material giving high strength flux fields
Assembled in a mild steel zinc coated shallow pot
The neodymium magnet and the mild steel pot form an intricate magnetic circuit to give a bi-pole arrangement on the contact face
The bi-pole effect gives a strong shallow field suitable for fixing, lifting and any form of closure applications
Magnets work at temperatures upto 80°C, max operating temperature of 100°C
Disc shaped
