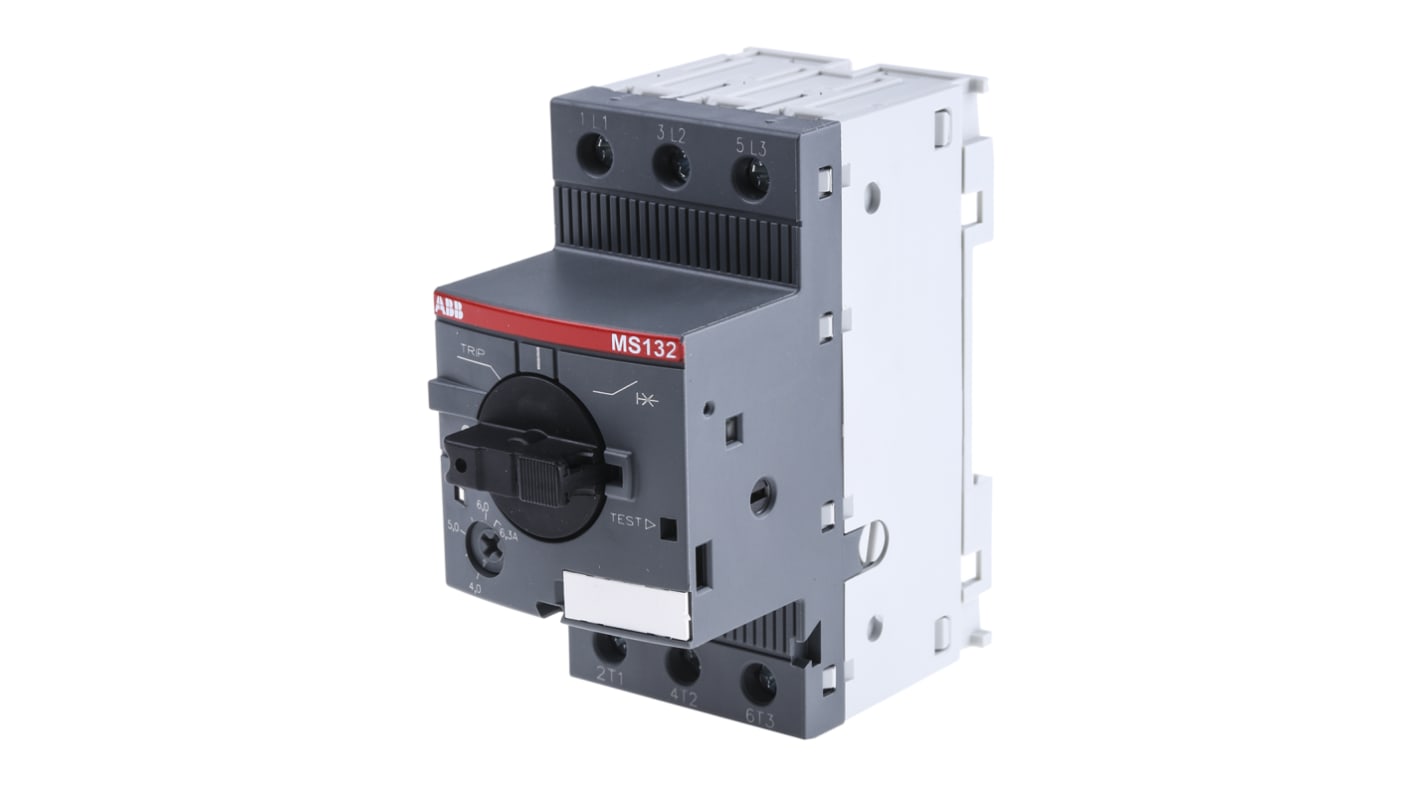

ABB 4 → 6.3 A Motor Protection Circuit Breaker

Subtotal (1 unit)*

£81.27

(exc. VAT)

£97.52

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 36 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£81.27

*price indicative

RS Stock No.:
711-6477
Mfr. Part No.:
1SAM350000R1009 MS132-6.3
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Current Rating

4 → 6.3 A

Motor Protection Component

Circuit Breaker

Series

MS132

Overall Length

90mm

Overall Width

45mm

Overall Depth

81.25mm

Minimum Operating Temperature

-25°C

Voltage Rating

690 V ac

Maximum Operating Temperature

+70°C

Terminal Type

Screw Terminal

Breaking Capacity

100 kA

Number of Poles

3

Enclosure Type

Din Rail

COO (Country of Origin):
DE

Manual Motor Starters


The ABB MS132 series of manual motor starters are compact highly reliable devices used to manually switch on and off motors. The MS132 series protects the motors reliably, without the need for a fuse, from short-circuits, overload and phase failures.

Short-circuit protection
Overload protection
Trip class 10 A
Phase loss sensitivity
ON/OFF switching functionality
Disconnecting feature

ABB Motor Protection Circuit Breaker, 6kV Voltage Withstand Rating, IP20-Rated Housing - MS132 Series - 1SAM350000R1009 MS132-6.3


Need a starter for reliable motor operation and improved longevity? Try this motor protection circuit breaker from ABB. The multifunctional module combines manual start-stop functions with circuit-breaking capabilities to help keep users safe and optimise motor performance from one device. Its built-in disconnect and short-circuit characteristics minimise the risk of shocks from excess current, overvoltage or phase failures, so you won't need a fuse. You can use this device starter with three-phase and single-phase circuits, making it practical for commonly used motors. For ease of use, the rotary handle clearly indicates the switch position.

• Lockable handle prevents unauthorised tampering once set
• Operating temperature range between -25°C and +70°C suits harsh settings
• Mounts to a standard 35mm DIN rail, so it's easy to install without needing tools
• Compact 45mm width means it takes up little space on your rail

Applications


• Drive pumps
• Industrial fans
• Compressors

What does this motor starter's temperature compensation mean?


This means it contains a bimetallic device that compensates for ambient temperature differences by modifying breaking parameters. That makes it practical when you're in an area with a different ambient temperature from your controller.
