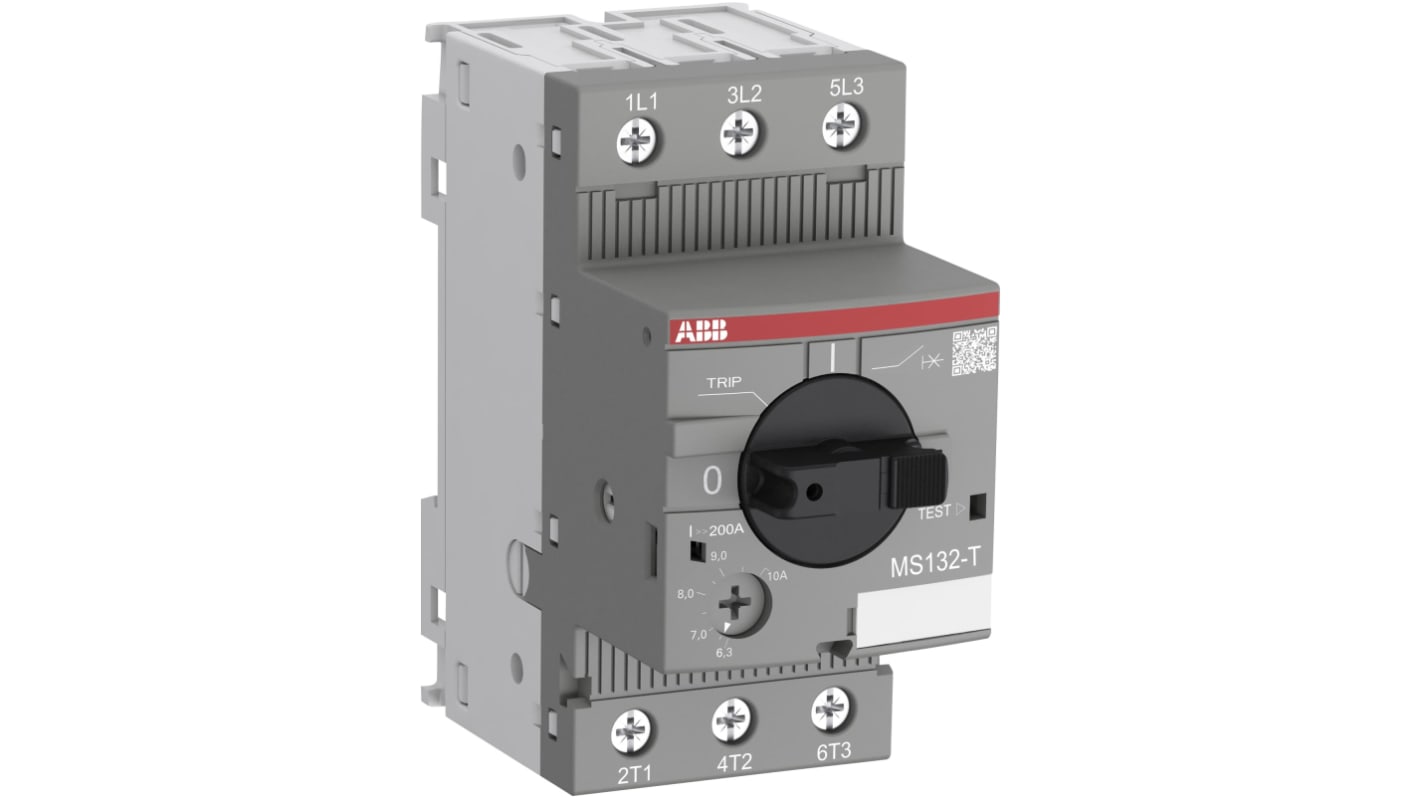

ABB 0.4 MS/MO132 MCB Mini Circuit Breaker, 690 V
- RS Stock No.:
- 259-6001
- Mfr. Part No.:
- 1SAM340000R1003
- Brand:
- ABB
Subtotal (1 unit)*
£73.77
(exc. VAT)
£88.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.77 |
*price indicative
- RS Stock No.:
- 259-6001
- Mfr. Part No.:
- 1SAM340000R1003
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Current Rating | 0.4 | |
| Range | MS/MO132 | |
| Motor Protection Component | Circuit Breaker | |
| Supply Voltage | 690 V | |
| Overall Length | 86.75mm | |
| Overall Width | 45mm | |
| Overall Depth | 86.75mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Voltage Rating | 600 V ac | |
| Terminal Type | Screw | |
| Number of Poles | 3 | |
| Breaking Capacity | 100 kA | |
| Enclosure Type | Din Rail | |
Select all | ||
|---|---|---|
Brand ABB | ||
Current Rating 0.4 | ||
Range MS/MO132 | ||
Motor Protection Component Circuit Breaker | ||
Supply Voltage 690 V | ||
Overall Length 86.75mm | ||
Overall Width 45mm | ||
Overall Depth 86.75mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Voltage Rating 600 V ac | ||
Terminal Type Screw | ||
Number of Poles 3 | ||
Breaking Capacity 100 kA | ||
Enclosure Type Din Rail | ||
- COO (Country of Origin):
- DE
ABB MCB Mini Circuit Breaker, 0.4A Current Rating, 690V Supply Voltage - 1SAM340000R1003
This compact 45mm width ABB MCB Mini Circuit Breaker is designed to provide efficient protection for control transformers on the primary side. With a rated operational current of 0.4A, this device offers fuse-less protection against overload and short-circuits. The circuit breaker is equipped with a variety of features such as a lockable handle, short-circuit trip indicator, and temperature compensation, making it a reliable choice for transformer protection.
Features & Benefits
• Compact design with a width of 45mm
• Rated operational current of 0.4A for effective protection
• Fixed short-circuit current setting of 20 times the rated current
• Trip-free mechanism for added safety
• Rotary handle with clear switch position indication
• High short-circuit breaking capacity of 100 kA at 400V AC
• Temperature compensation for reliable performance
• Rated operational current of 0.4A for effective protection
• Fixed short-circuit current setting of 20 times the rated current
• Trip-free mechanism for added safety
• Rotary handle with clear switch position indication
• High short-circuit breaking capacity of 100 kA at 400V AC
• Temperature compensation for reliable performance
Applications
• Protection of control transformers on the primary side
Can it protect control transformers effectively?
Yes, the ABB MCB Mini Circuit Breaker is designed to provide efficient protection for control transformers on the primary side.
Will it offer reliable fuse-less protection?
Yes, this circuit breaker offers fuse-less protection against overload and short-circuits.
Is it suitable for use in high-traffic areas?
Yes, the ABB MCB Mini Circuit Breaker is a reliable choice for areas with high traffic due to its robust features and high short-circuit breaking capacity.
