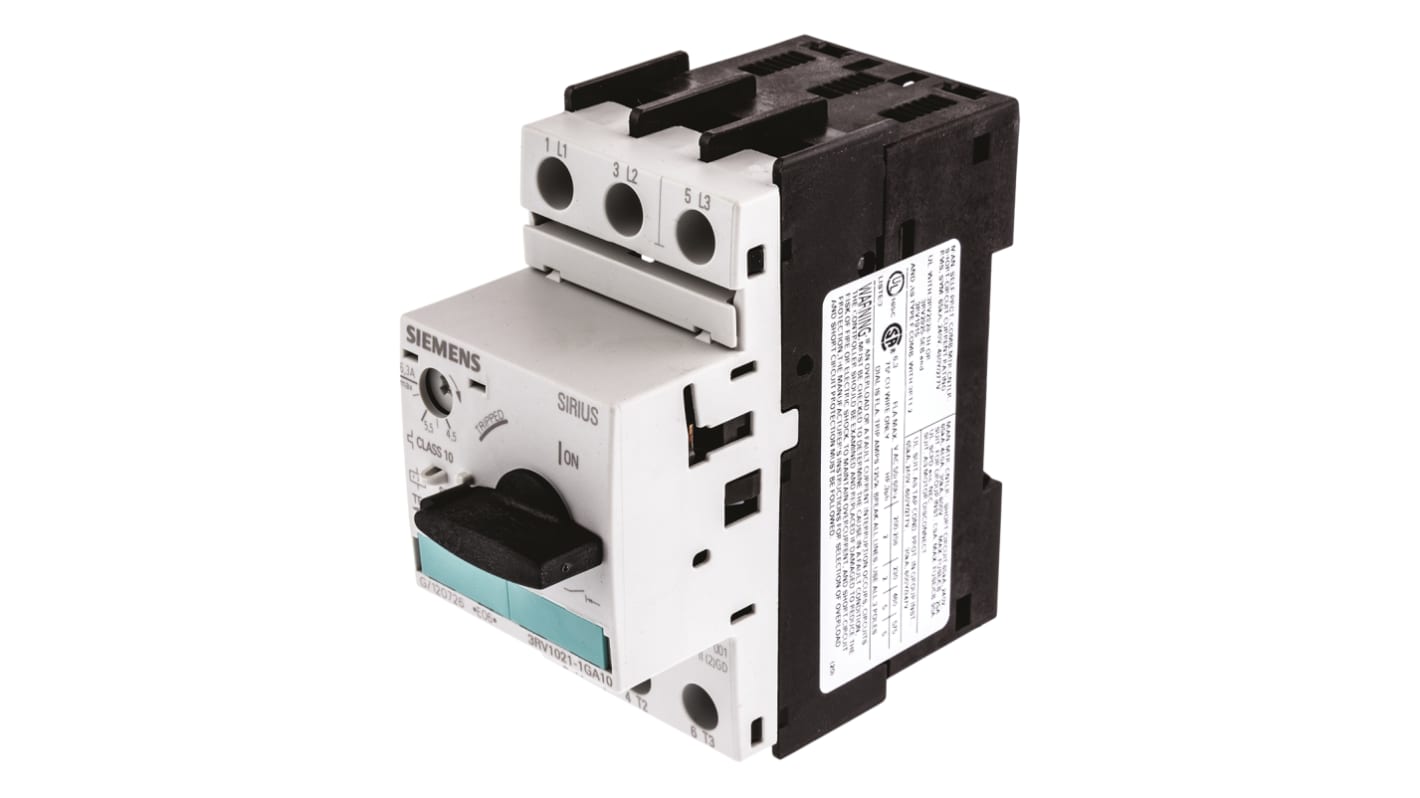

Siemens Sirius Innovation 690 V Motor Protection Circuit Breaker - 3P Channels, 4.5 → 6.3 A, 100 kA
- RS Stock No.:
- 246-4850
- Mfr. Part No.:
- 3RV1021-1GA10
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 246-4850
- Mfr. Part No.:
- 3RV1021-1GA10
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Range | Sirius Innovation | |
| Series | 3RV1 | |
| Overall Length | 97mm | |
| Overall Width | 45mm | |
| Overall Depth | 96mm | |
| Control Voltage | 4.5 → 6.3 A | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Range Sirius Innovation | ||
Series 3RV1 | ||
Overall Length 97mm | ||
Overall Width 45mm | ||
Overall Depth 96mm | ||
Control Voltage 4.5 → 6.3 A | ||
- COO (Country of Origin):
- DE
Three-Pole Circuit Breakers - 3RV 10 Range
Maximum rated current 100A (45kW @ 400V a.c.)
Rated operational voltage: 690V
Short-circuit proof to 50kA @ 400V a.c.
Maximum switching frequency; 15 operations/hour
Mechanical life; 105 operations
Ambient temperature range; –20 to +60 ° C
Long term stability
Manual reset
Lockable in off position
Rated operational voltage: 690V
Short-circuit proof to 50kA @ 400V a.c.
Maximum switching frequency; 15 operations/hour
Mechanical life; 105 operations
Ambient temperature range; –20 to +60 ° C
Long term stability
Manual reset
Lockable in off position
Approvals
UL, CSA
Standards
IEC947, VDE0990, EN60947
